JUICE FILLING LINE

PESTOPACK helps you establish a complete juice filling line. Find us getting customized solution to make your factory an optimized reality.

HOW JUICE FILLING LINE WORKS

PESTOPACK juice filling line is mainly using for produce different hot beverage and drinks like synthetic juice, fruit juice, vegetable juice, juice with pulp, energy drinks, tea, milk which are filled in PET bottles or glass bottles(200-2000ml). The complete juice filling line includes water treatment system, beverage processing system, bottle blowing machine, bottle filling labeling and packing line.

  • Water Purify
  • flow-chart_02

    Juice Processing

  • Bottle Blowing

  • Filling

  • Labeling

  • Packing

  • Conveyor System

ALL SOLUTION FOR JUICE FILLING LINE

Layout-Design

  Layout Design

Our professional engineer makes a reasonable layout design of the entire juice filling line according to customer's actual workshop size. We provide the juice filling line with the worry-free service to each of our dear customers.


Bottle-and-label-design

  Bottle And Label Design

Not only juice filling line, we also provide bottle and label design. The design of the bottle and label is very important, it is the first step to the success of the brand, we cooperate with the needs of customers to turn ideas into reality.
Machine-Manufacturing

  Machine Manufacturing

We have a complete ISO quality system to ensure that the all machines in juice filling line are delivered to customers with high quality. We use high quality stainless steel material and branded electronic components for juice filling line.
Raw-Material-Supply

  Raw Material Supply

As a turnkey juice filling line supplier, we also provide customers with various sizes of preforms, cans, lids, PVC/OPP/BOPP labels, PE films and other raw materials which are used in juice filling line. All service are guranteed without no worry.

JUICE BOTTLING LINE SELECTION

Our production capacity of juice bottling line covers a wide range from 3000-24000BPH. We can design and provide the best juice production line solution according to your budget, workshop size, efficiency, capacity and other special requirements.

   Model

RGF 14-12-5

RGF 18-18-6

RGF 24-24-6

RGF 32-32-8

RGF 40-40-10

RGF 50-50-12

RGF 60-60-15

RGF 72-72-18

   Rinsing heads

14

18

24

32

40

50

60

72

   Filing heads

12

18

24

32

40

50

60

72

   Capping heads

5

6

6

8

10

12

15

18

   Capacity(b/h)

3000

5000

8000

12000

15000

18000

22000

28000

   Power(KW)

2.2

3.5

4.5

6

7.5

9.5

11.2

15

   Dimension(mm)

2300*1650*2500

2600*1920*2550

3100*2100*2800

3500*3000*2850

4850*3800*2750

5750*3550*2750

6500*5500*2750

6800*5800*2850

   Weight(kg)

2600

3650

4800

6800

8500

10000

12000

15000

WHAT IS THE COST OF SETTING UP A COMPLETE JUICE BOTTLING LINE?

JUICE FILLING LINE MACHINES

Water-treatment-system

  Water Treatment System

Water treatment system provides purifed water for juice filling line.
Flow chart:
Raw water--Pump--Silica sand filter--Carbon filter--Water softner--Reverse Osmosis-UV sterilizer-Finished water tank
Features:
Use high quality stainless steel for tanks, pipes and connectors.
Online type pressure auto self-protection device.
System safe protecting and alarm system.

  Juice Processing System

Juice processing machines provide mixing, sterilizing, vacuum degassing, cleaning in juice production line.
-Syrup melting pot
-Mixing tank
-Double filter+Buffer tank+Homogenizer machine
-Vacuum degassing machine
-UHT sterilizer+CIP system
Juice-Processing-system
PET-Bottle-Blowing-Machine

  PET Bottle Blowing Machine

Bottle blowing machine is for making bottles in juice production line.
-Produce PET Bottles such as: water, beverage, wine, soybean, vinegar bottles and so on.
-Touch screen, PLC and pneumatic components use international well brand.
-Adopt the new type double bend arm and the four rod-clamping structure: Cross direction; Middle mould board is move parallel.

  Juice Filling Machine

Juice filling machine is very important machine in juice filling line.
-Hot filling is an economical and reliable method for beverage.
-After UHT sterilization, the juice temperature are kept at 85℃ to 95℃.
-The filling is completed in a short time. It is equipped with an automatic circulation system and CIP cleaning system.
-Juice bottle filling machine consists of three-in-one machine of bottle washing, filling and capping.
Washing-filling-capping-machine
Bottle-Inverse-Sterilizer

  Bottle Inverse Sterilizer

-It is mainly used in sterilizing PET bottle mouth and inside surface of caps, in which haven’t been disinfected or deal with high temperature after bottles are thermally filled with juice,tea or others.
-It mainly consist of conveying chain system,bottle reversing chain system,bottle reversing guiding rod and bottle repositioning rod.
-The machine can automatically reverse and reposition.
-The machine is fully made of SUS304 stainless steel,more convenient in operation.
-It is normal sterilizing machine in juice filling line.
Bottle-cooling-machine

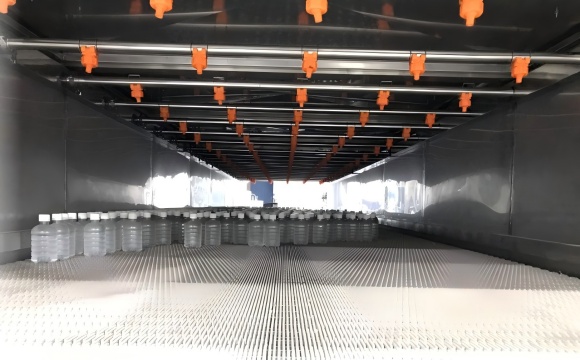

  Bottle Cooling Machine

-It is applied to PET glass bottle tea or juice filling production line and PET bottle carbonated drink filling production line.
-For hot filling, It can put down the temperature of hot filling drink to 36-40℃, to make the sterilization and cooling the bottle temperature for later good packing.
-For low-temperature filling, it can get up the temperature of low-temperature filling carbonated drink to 36-40℃ to eliminating the condensed water on the external wall of PET bottles, to keeping bottles dry and clean.
Labeling-machine

  Labeling Machine

It is suitable for labeling before and after filling when the bottle type label is required for pasting. Mainly used in beverage, daily chemical, condiment and other industries. In juice filling line, there are normally three types of labeling machine.

-Shrink sleeve labeling machine
-OPP Hot melt labeling machine
-Stick labeling machine
Packing-machine

  Packing Machine

It is widely used in the combination packaging of beverage, food, pharmaceutical and chemical products. No matter whether it is square, round, or flat, it can be packaged and has excellent visual effects. It is the preferred matching equipment for beverage filling  lines.
-PE film wrapping machine
-Semi auto shrink wrapping machine
-Carton packing machine

DETAILS OF JUICE FILLING MACHINE

  • Washing Heads
    Washing Heads
  • Filling Heads
    Filling Heads
  • Capping Heads
    Capping Heads
  • Air Conveyor
    Air Conveyor
  • Components Parts
    Components Parts

SERVICE PROCESS

We put our customers first. PESTOPACK provides turnkey solution, after-service support and spare parts. We help customers acheive a high-efficiency operation of juice bottling lines and technical innovation and upgrade to join hands with customers for a win-win situation.

SERVICE-PROCESS

AFTER SERVICE FOR JUICE FILLING LINE

Get service information of installation and technical support from a professional juice filling line manufacturer

编辑样式

  • On-site installation and training

  • 12 months guarantee period

  • 24/7 customer service


    ​​​​​​​

  • Life-long technical support

JUICE FILLING LINE MANUFACTURER

As a professional juice filling line factory in China, PESTOPACK has a factory including production workshop, raw material processing workshop, CNC finishing workshop, juice filling line assembly workshop. We have types of juice filling lines for sale: beverage bottling line, fruit juice filling line, small scale juice bottling plant. Welcome to buy juice filling line from us at any time. We will always give affordable and reliable juice bottling lines.

CASES OF JUICE PRODUCTION LINE

How to start a juice production line business? We have many juice production line experienced projects for your reference. Pestopack provides full solution of raw material, machine manufacturing, machine installation and debugging, after-sales service. You can get the best quality juice production line with best price from Pestopack.

FAQ ABOUT JUICE FILLING LINE

Orders

  • How do I start a juice bottling plant?

    1. Plan your bottled juice business

    2. Form your bottled juice plant business into a legal entity

    3. Get the Necessary Permits & Licenses for your bottled juice business

    4. Define your bottled and label design

    5. Buy juice bottling plant machines

    6. Start bottled juice market plan

  • How many juice processing line machine are used?

    A juice processing line performs a complex process that requires a high standard of professionalism. When we speak about juice processing line, in fact, many topics rise as far as hygiene, safety, and pollution are concerned: to grant the successful completion of the process, you have to choose only the best juice bottling systems available on the market.

    The whole juice processing line will be divided into four parts. The first part is RO water treatment system. The second part is beverage processing machine. The third part is PET bottle making. The forth part is bottling filling and packaing,
    The complete juice processing line machines includes:
    Water treatment system
    Beverage processing machines
    Blowing machine
    Filling machine
    Drying machine
    Inkjet coding machine
    Sleeve labeling machine
    Shrink wrapping machine

  • Where to buy juice bottling line

    It's not easy to find a good juice bottling line manufacturer, and you cannot just buy machine from your local distributors. Unstable machines are easy to buy from companies that make shoddy machines. Reputable companies like PESTOPACK are one of the best juice filling line manufacturers. The company has a professional engineering team with over 12 years' experience in this industry.

    PESTOPACK factory has different kinds of precision processing machine tools and advanced inspection and testing equipment. The company can finish various bottling machinery and packaging equipment. Be assured that this company will deliver high quality juice production line with fast delivery. This is undoubtedly the best place to buy a juice bottling line.

  • Juice filling line price

    Costs vary, but to deliver a return on investment a juice bottling plant needs to be of a certain size. You’ll need a suitably constructed water source, delivery pipework, a juice bottling line, usually an in-house testing laboratory and warehousing. If employing staff you will need to ensure that your employment conditions comply with the regulations.

    The cost factor depends on bottle filling capacity. No mater small scale business or large capacity, we can customize the juice filling line according to your needs. If you are looking for juice filling line price, you can contact our service team for inquiry.

  • Features of PESTOPACK juice bottling line

    1. We are juice bottling line manufacturer over 12 years, we have a good repulation for customer satisfaction.
    2. We provide turnky solution for complete juice bottling line from raw meratial, layout design, machine, and service.
    3. We have a wide range of production capacity whatever for small scale juice bottling line or large scale juice bottling line. We can guide customers for a suitable solution.
    4. We provide very reasonable price with reliable quality juice bottling line.
    5. We have many customer reference for juice bottling line in many countries.
