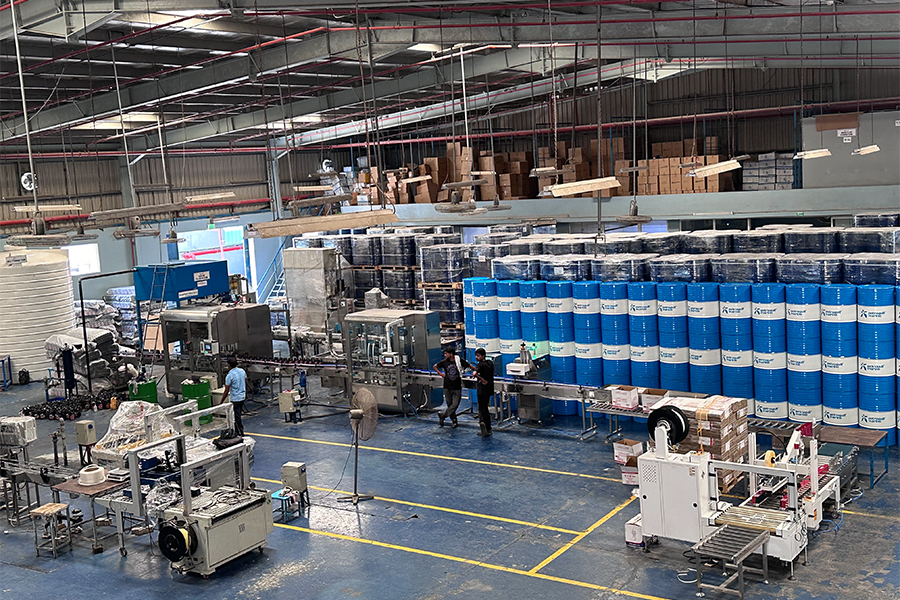

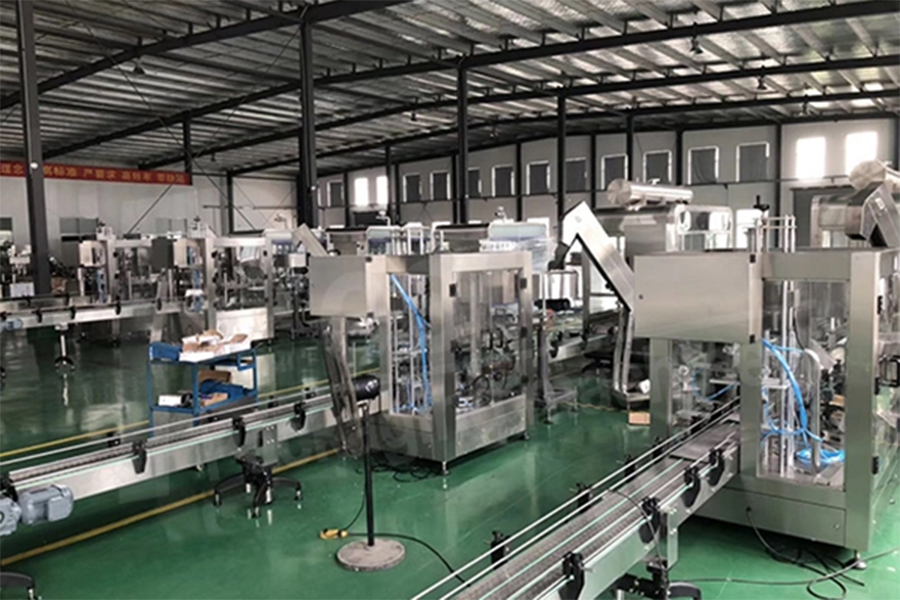

LUBRICANT OIL FILLING LINE

A lubricant oil filling line is an automated production system used to package engine oil, motor oil, gear oil, and other industrial lubricants into bottles, pails, or drums.

A typical lubricant oil packaging line includes filling machines, capping machines, induction sealing machines, labeling machines, conveyor systems, and end-of-line packaging equipment such as palletizers.

These systems are designed to handle high-viscosity liquids while maintaining precise filling accuracy and efficient production speed.

Lubricant oil filling lines are designed to fill various container sizes used in the lubricant industry.

Common container formats include:

• 200ml bottles

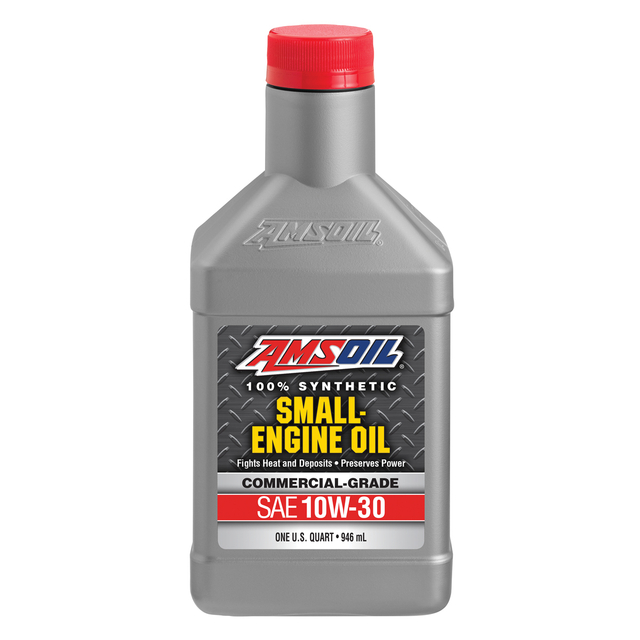

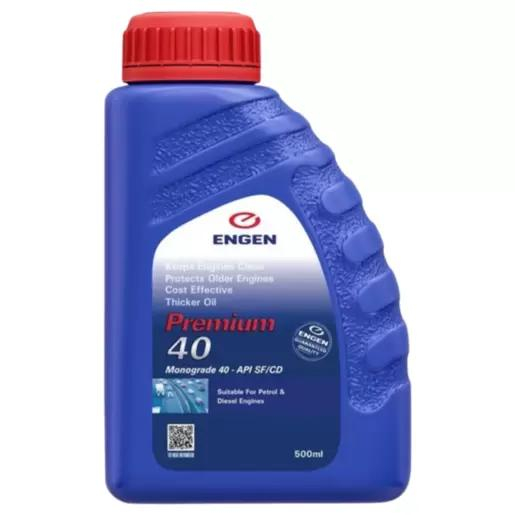

• 500ml bottles
• 1L bottles

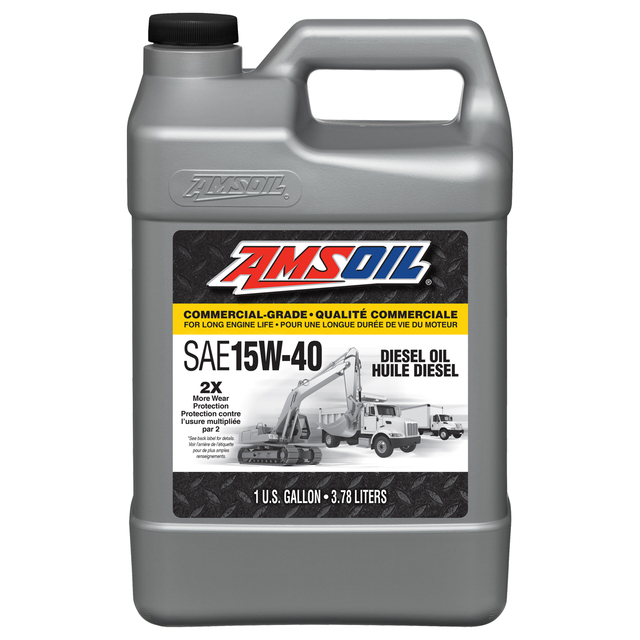

• 4L bottles
• 5L bottles

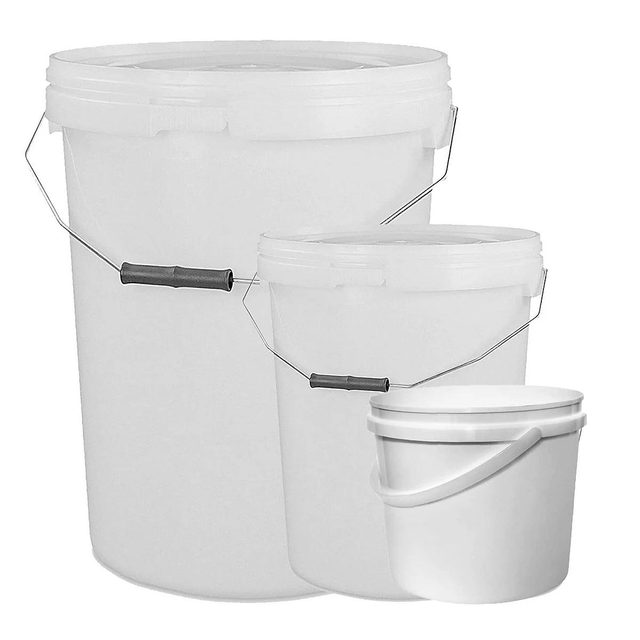

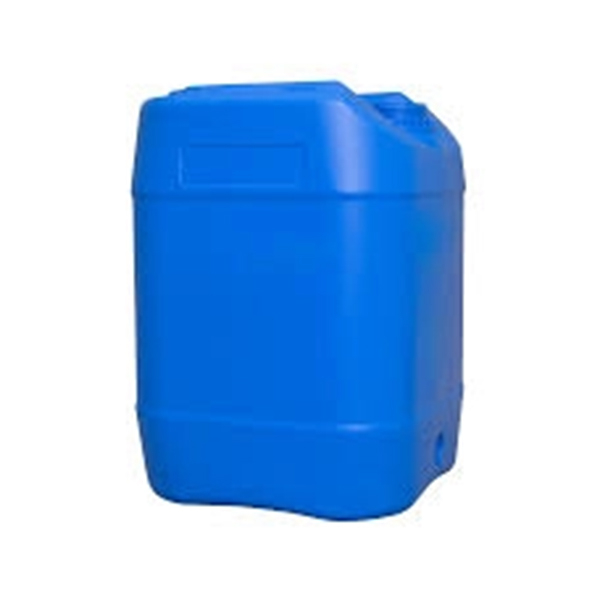

• 20L or 25L pails

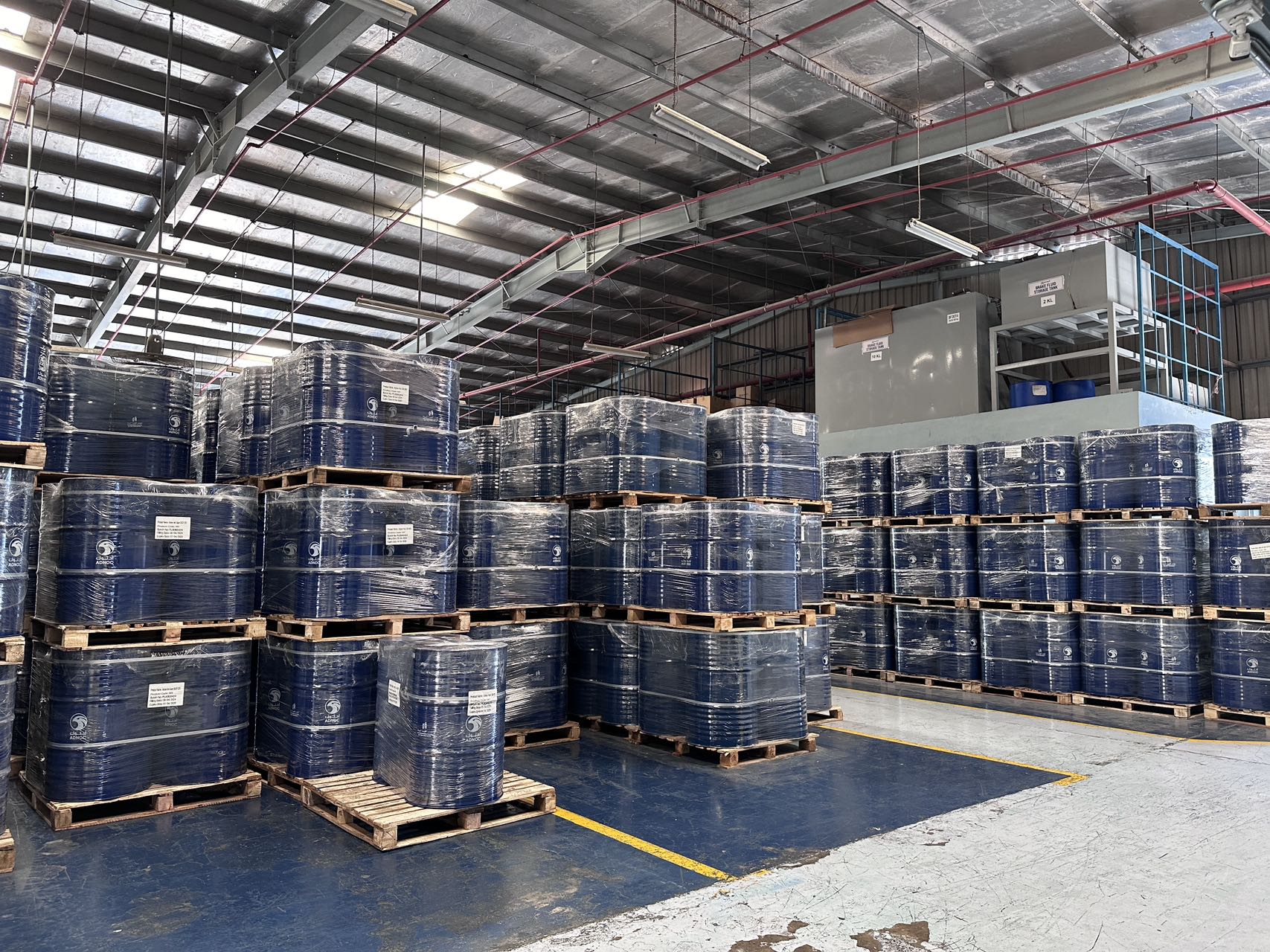

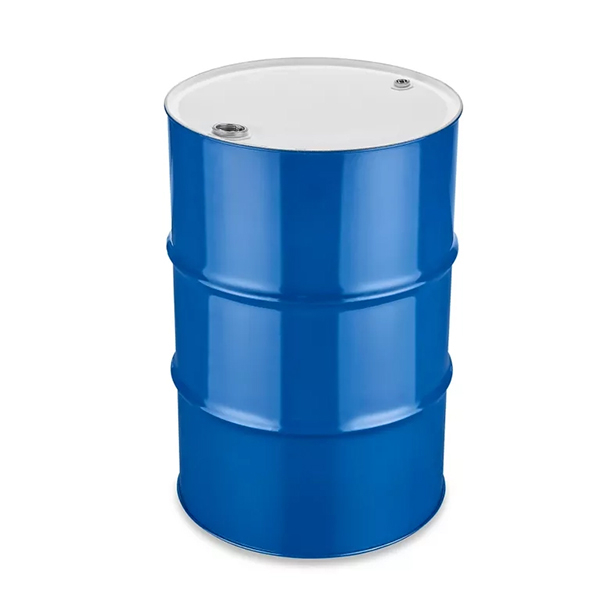

• 200L drums

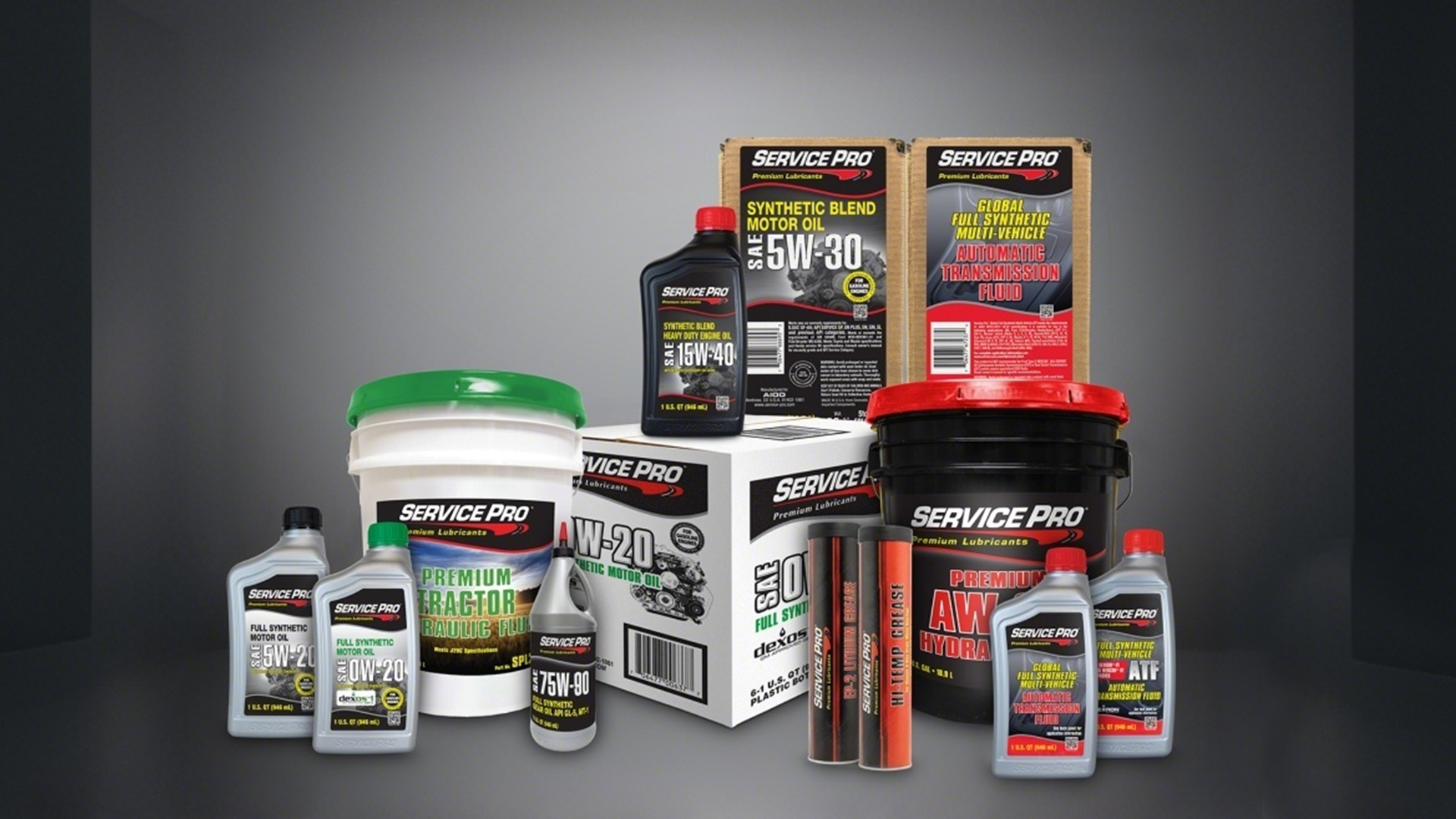

Flexible production lines allow lubricant manufacturers to produce different packaging sizes on the same equipment.

Three main filling technologies are used in lubricant oil packaging.

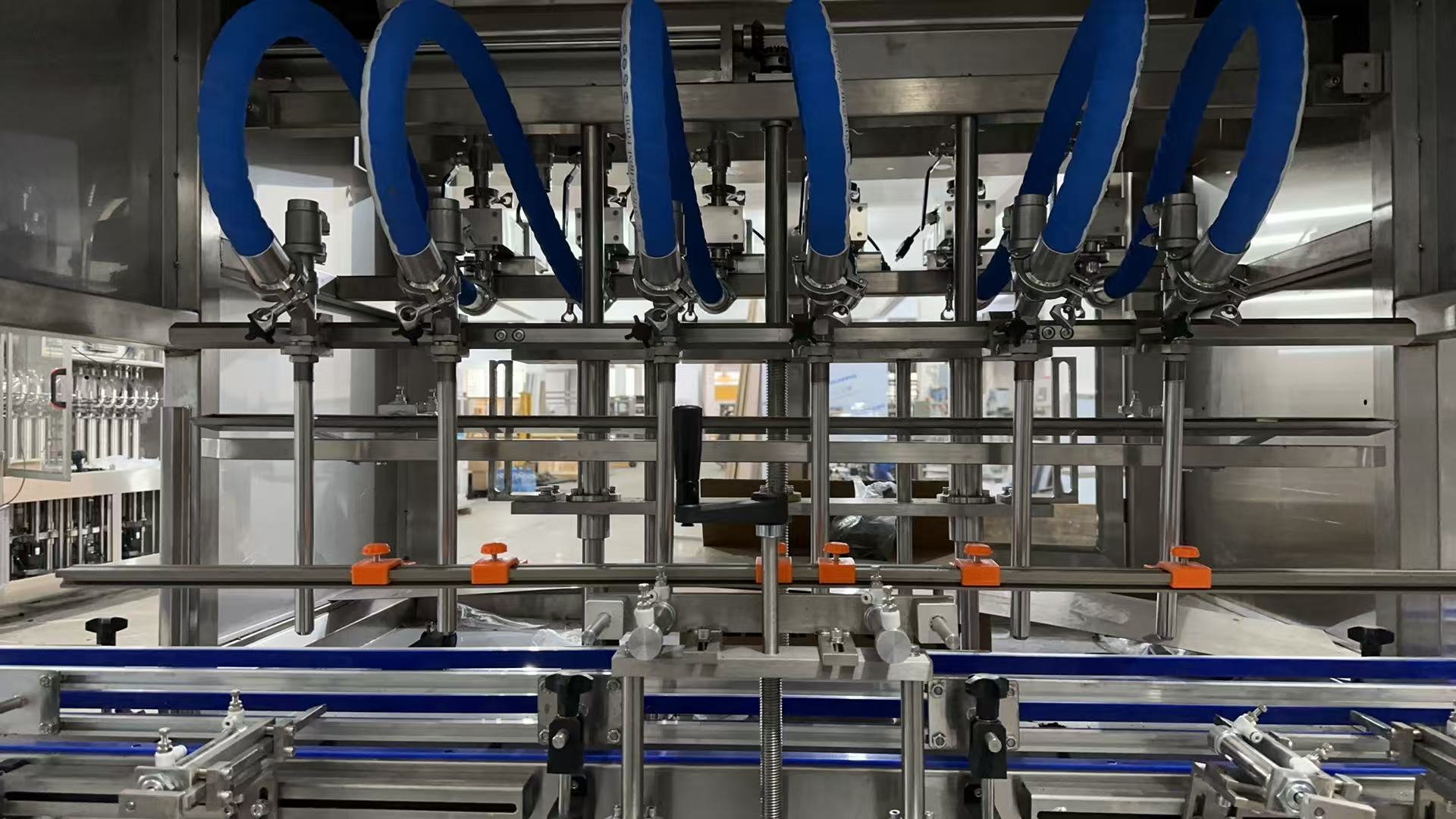

Piston filling

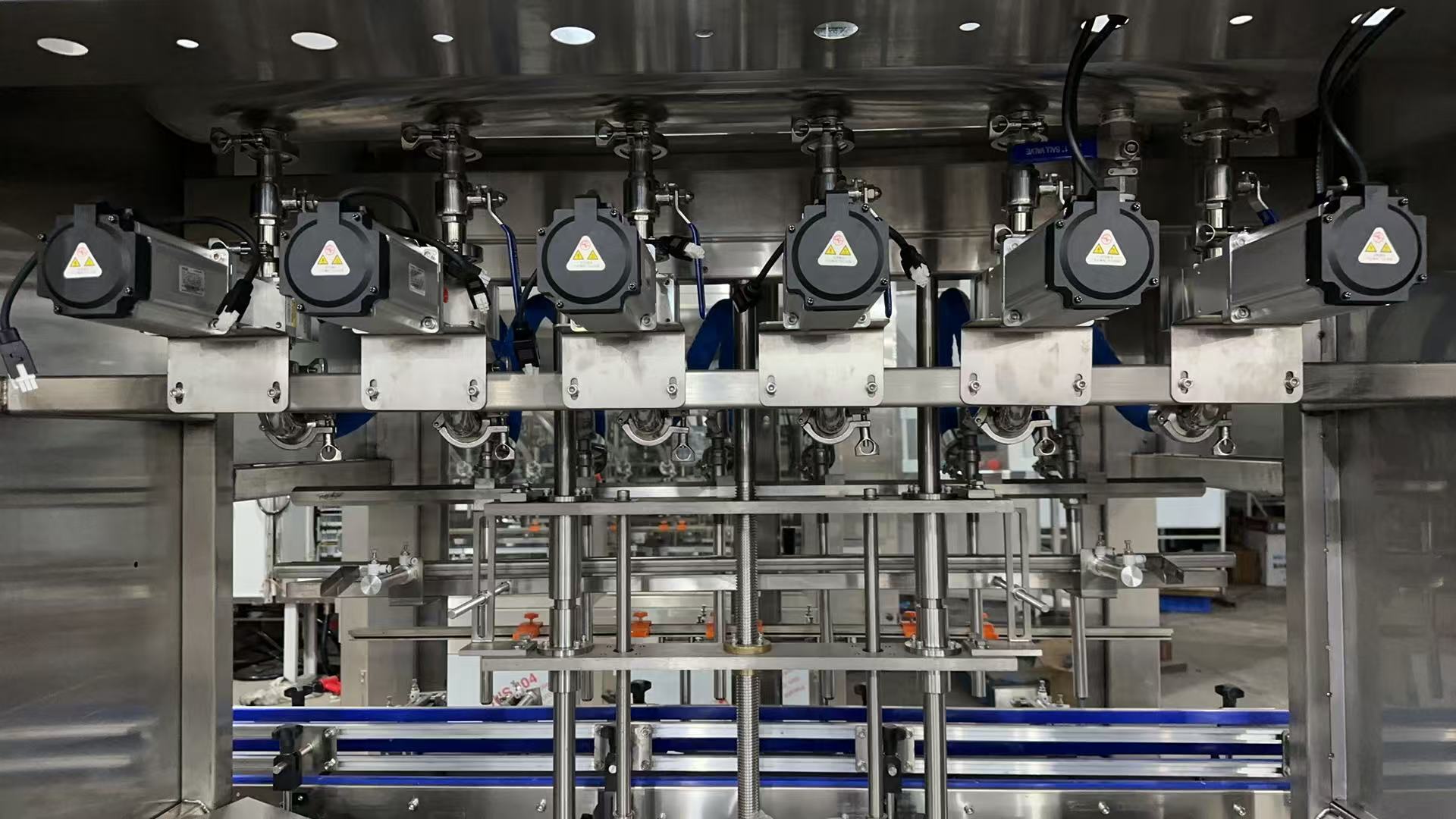

Servo piston filling machines are commonly used for 1L–5L lubricant bottles.

They provide high filling accuracy and stable performance for viscous oils such as engine oil and gear oil.

Magnetic pump filling

Magnetic pump filling machines are suitable for low to medium viscosity lubricants and smaller bottle sizes.

Weight filling

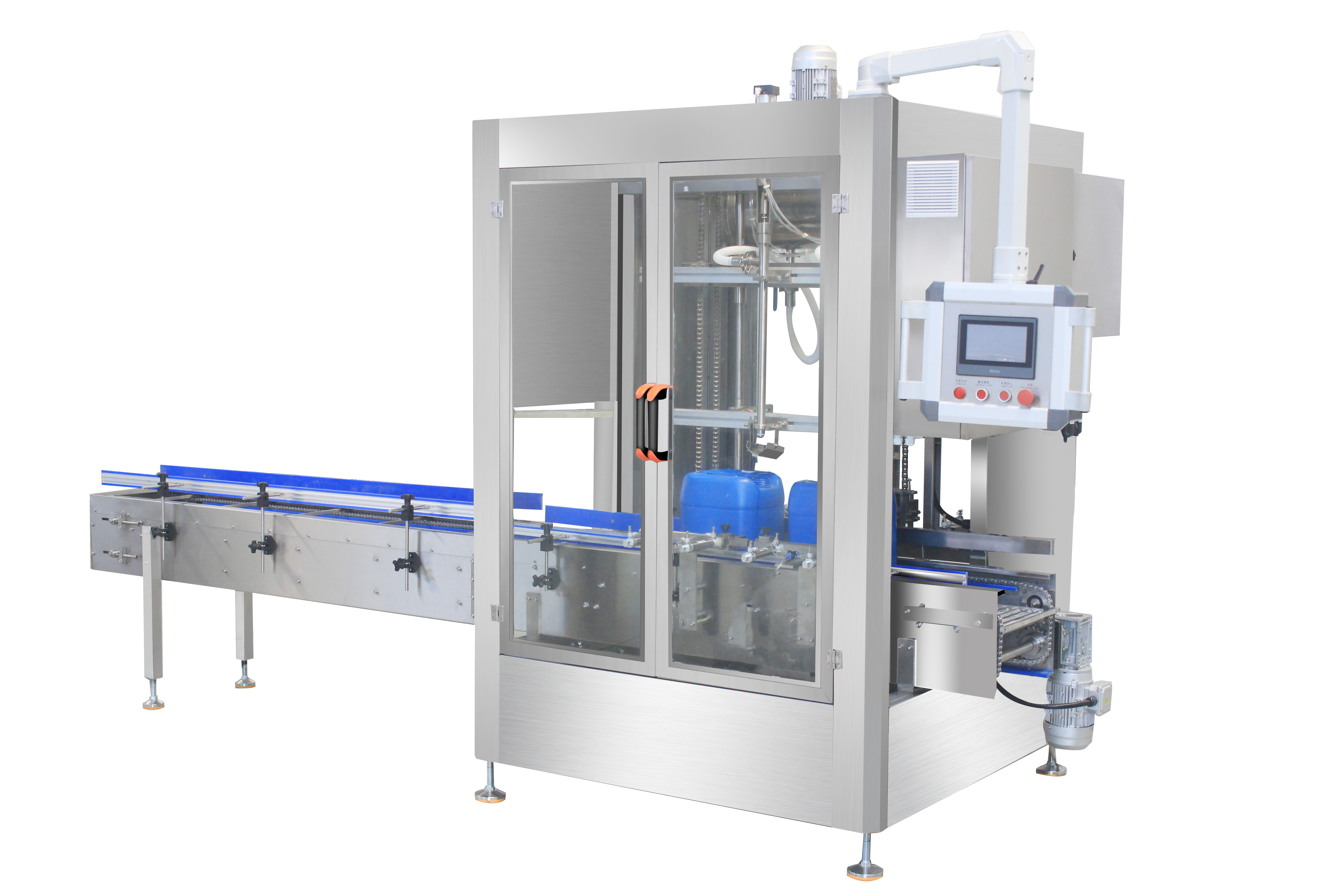

Weight filling systems are typically used for 20L pails and 200L drums, providing highly accurate filling regardless of viscosity changes.

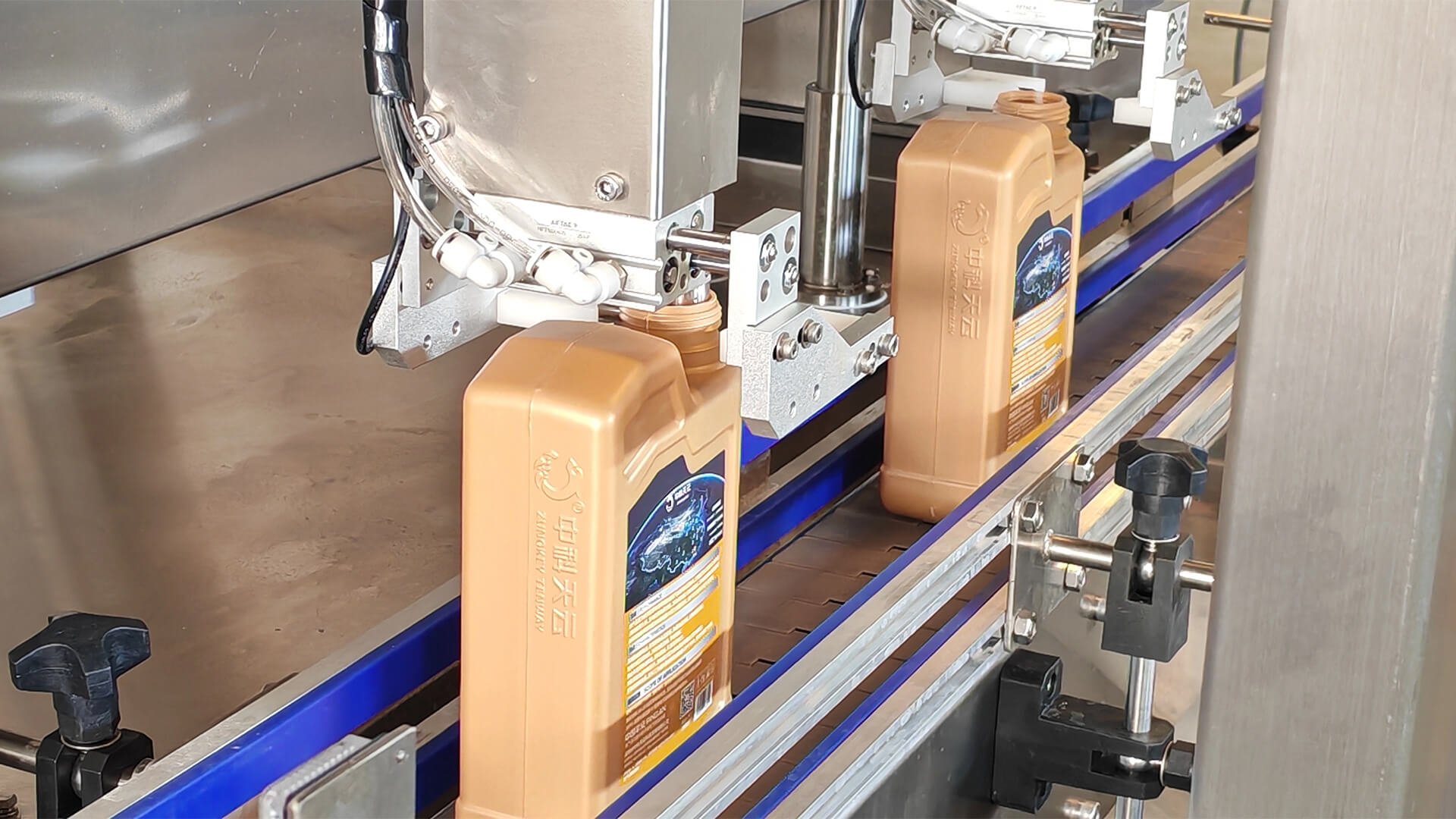

High-quality lubricant oil filling machines can achieve very precise filling accuracy.

Servo piston filling machines usually provide accuracy between ±0.2% and ±0.3%.

For large containers such as industrial drums, weighing filling systems can achieve even higher accuracy.

Production capacity depends on bottle size, number of filling heads, and machine configuration.

Typical capacities include:

• 1000–3000 bottles per hour for small lubricant factories
• 3000–6000 bottles per hour for medium production lines
• 8000–12000 bottles per hour for large lubricant manufacturing plants

For pails and drums, production capacity is usually measured in containers per hour.

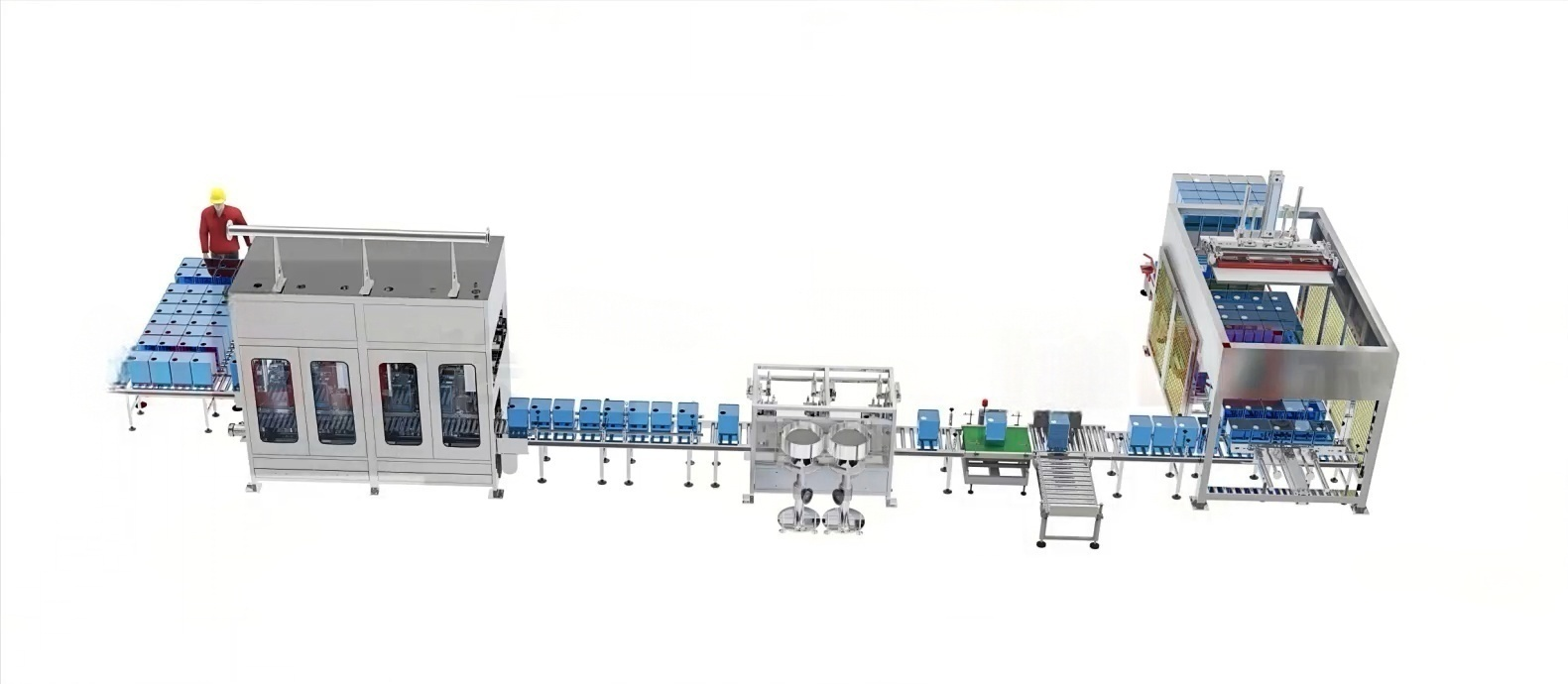

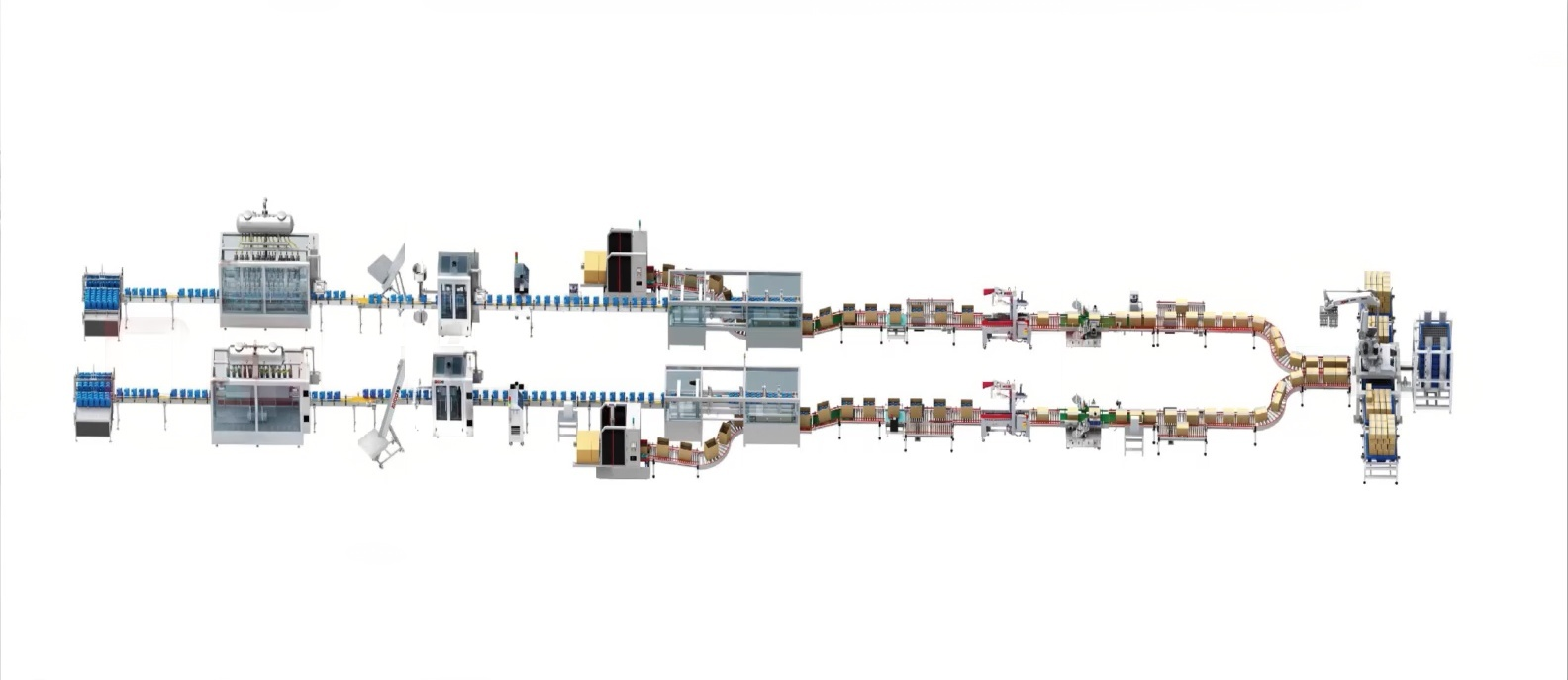

A complete lubricant oil packaging line typically includes:

• automatic lubricant oil filling machine

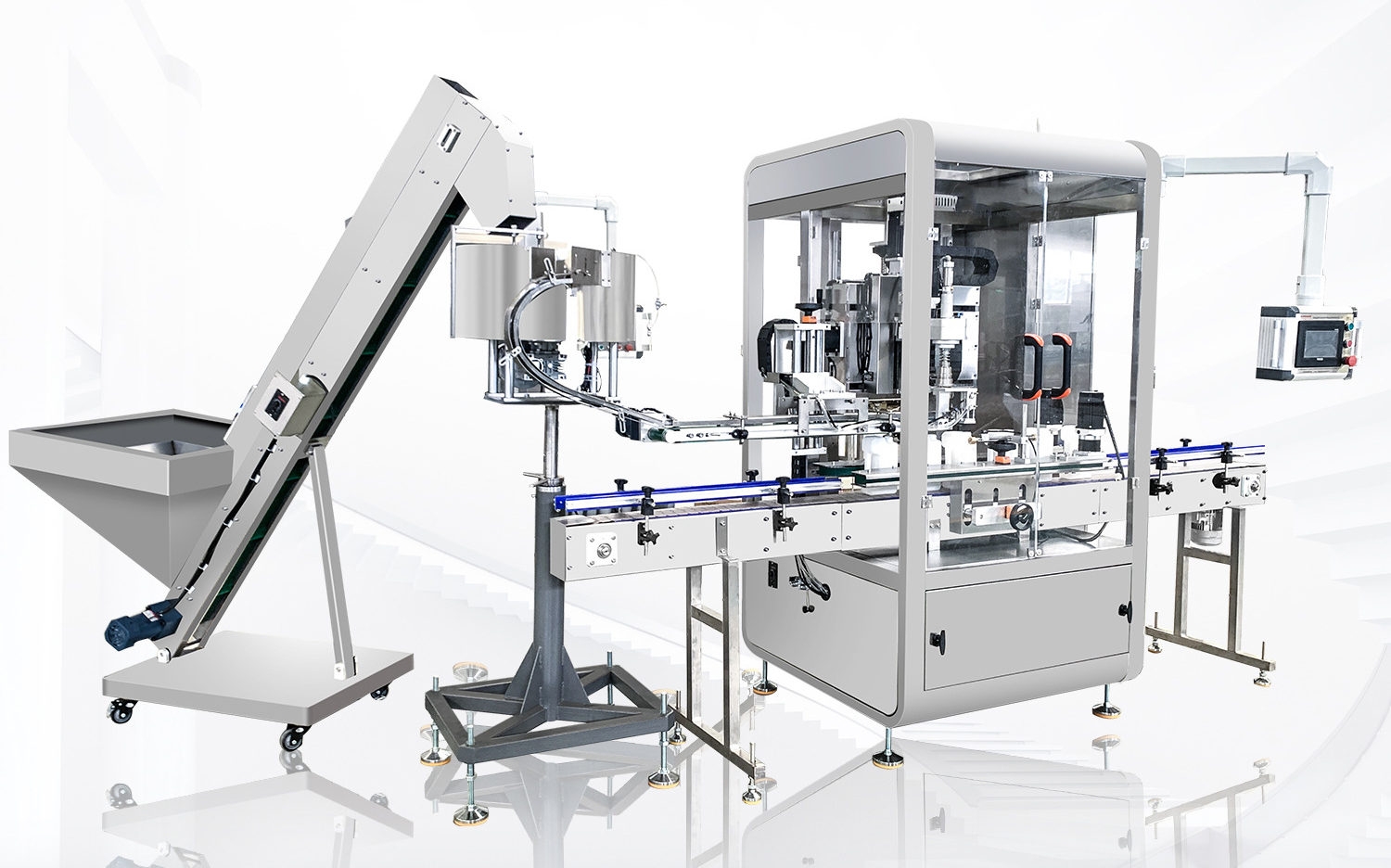

• automatic capping machine

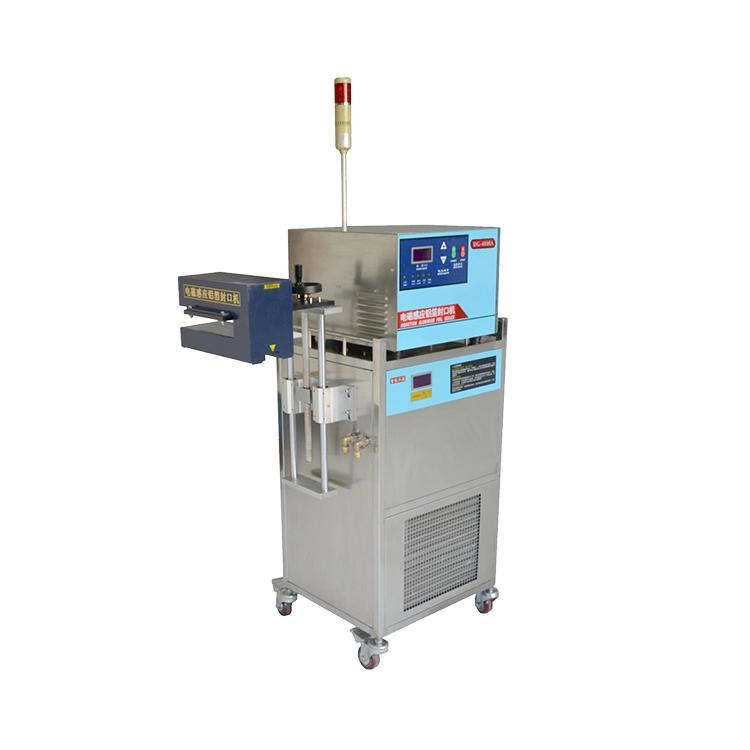

• induction sealing machine

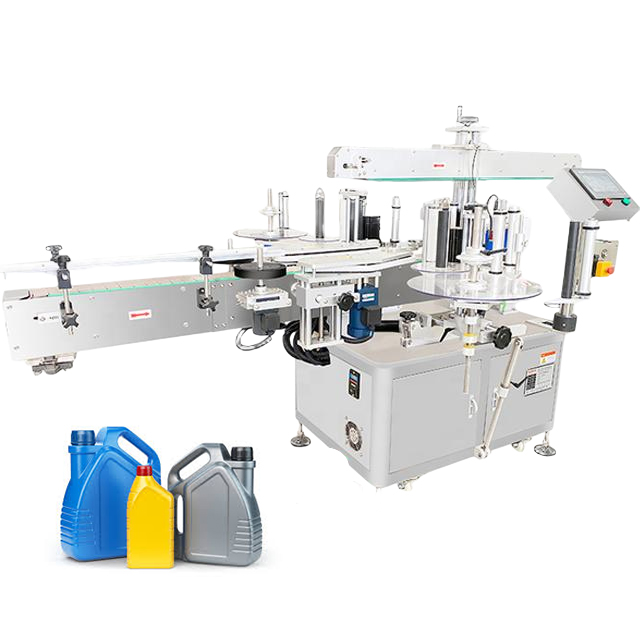

• labeling machine
• conveyor system
• accumulation table

Many modern factories also add:

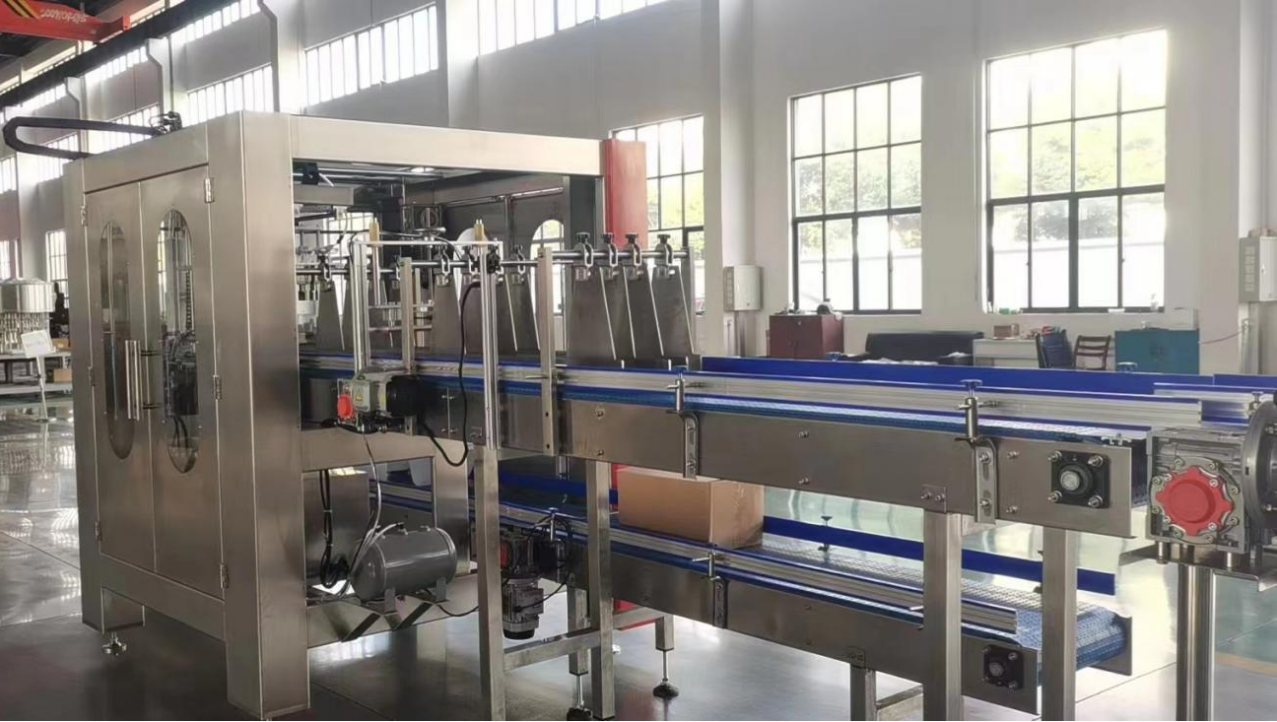

• carton packing machines

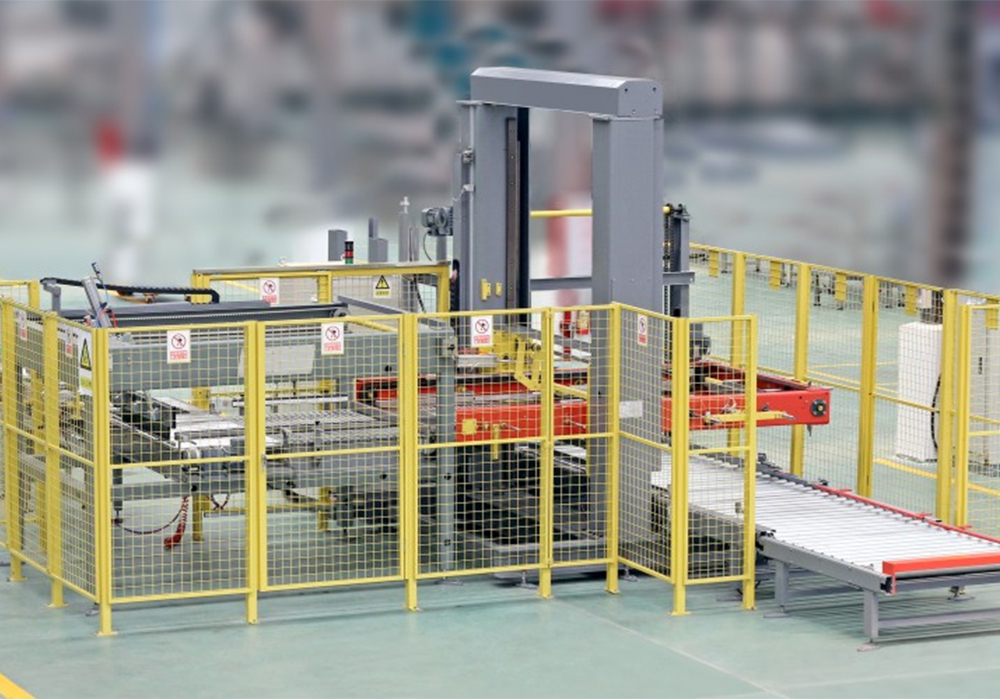

• robotic palletizers
• pallet wrapping machines
• pallet strapping machines

Lubricant oils are thick liquids that can easily cause dripping after filling.

Oil leakage can contaminate bottle surfaces and labels, affecting product appearance and increasing cleaning requirements.

Modern lubricant oil filling machines use anti-drip nozzles or vacuum suction technology to prevent oil dripping.

Yes.

Most modern lubricant oil filling machines are designed with quick changeover systems.

Manufacturers can switch between different bottle sizes such as 1L, 4L, and 5L containers with minimal downtime.

The cost of a lubricant oil filling line depends on:

• production capacity
• bottle size and container types
• level of automation
• number of machines included in the line

Small lubricant oil bottling lines may start from tens of thousands of dollars, while fully automated lubricant production lines require larger investment.

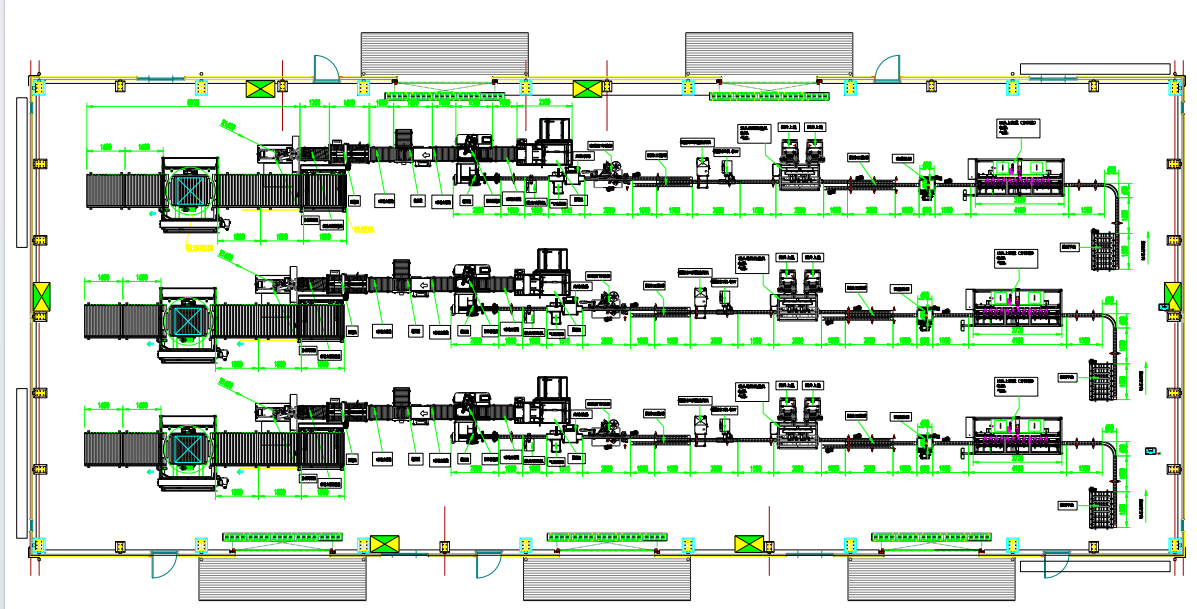

The required factory space depends on the production capacity and equipment configuration.

Small lubricant oil filling lines may require 200–300 square meters, while fully automated production plants with palletizing systems may require 500–1000 square meters or more.

Yes.

Modern lubricant oil factories increasingly adopt fully automated production lines.

Automation can include bottle feeding, filling, capping, induction sealing, labeling, carton packing, palletizing, and pallet wrapping.

Fully automated lubricant oil packaging lines improve efficiency and reduce labor costs.

Lubricant oil filling equipment usually includes several safety features such as:

• emergency stop systems
• overload protection
• anti-leak filling valves
• explosion-proof components (if required)

These features help ensure safe and stable production.

Bottle filling systems are designed for small retail containers such as 1L or 5L bottles.

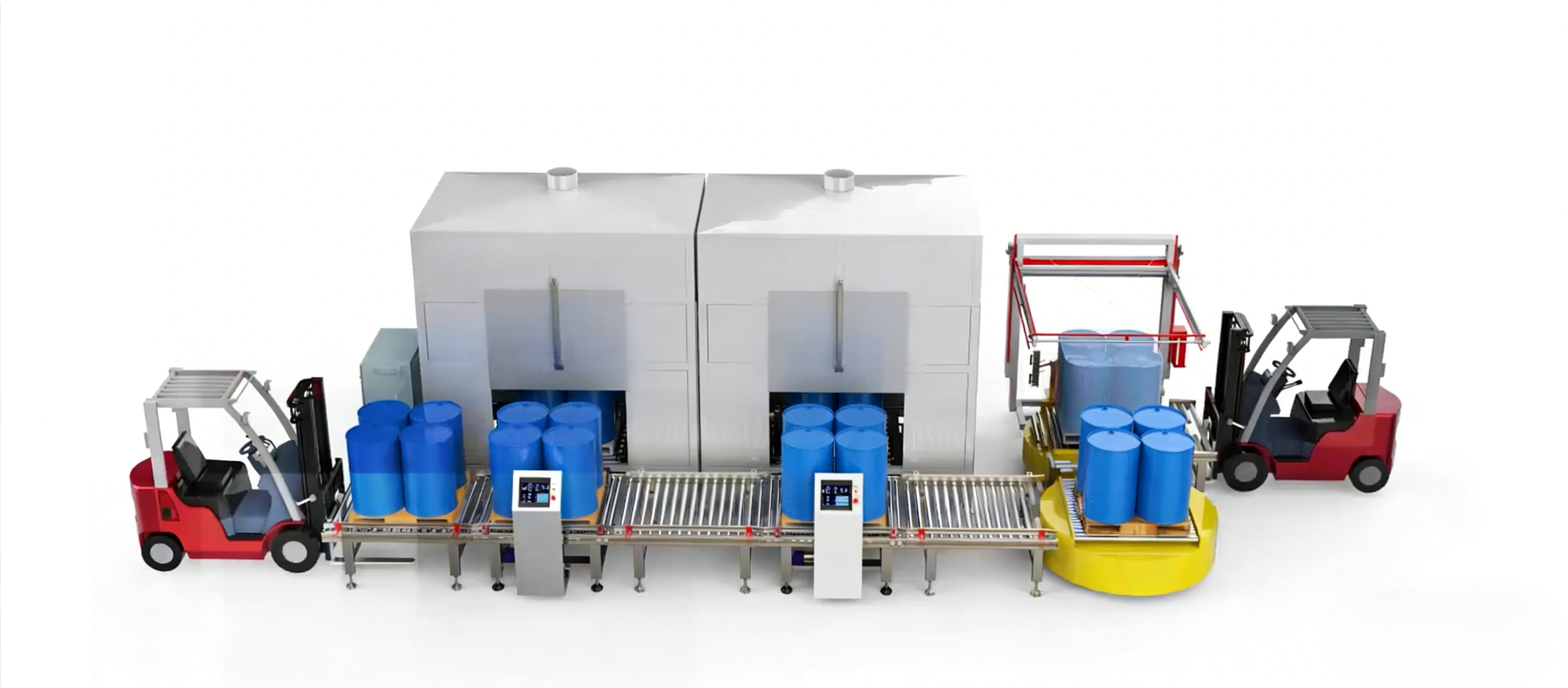

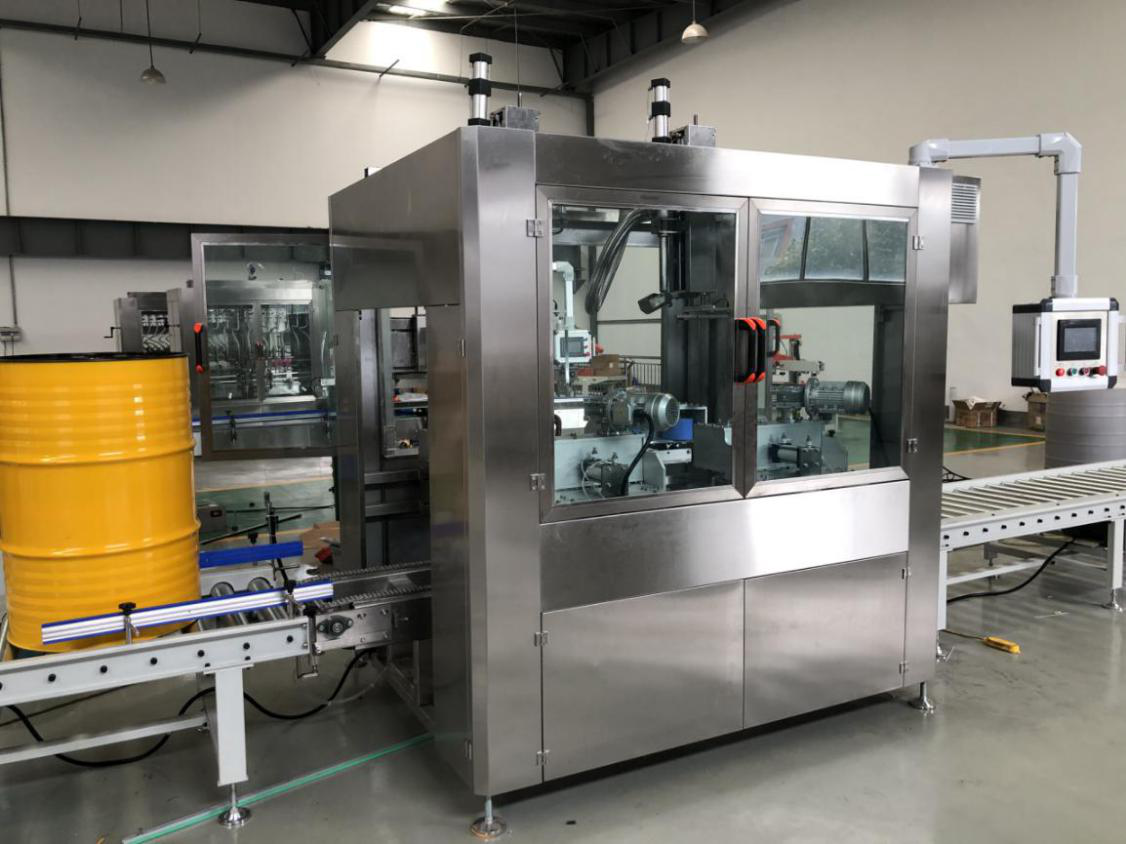

Drum filling systems are designed for large industrial containers such as 200L steel drums, often using weighing filling technology.

Installation time depends on the size and complexity of the production line.

Small lubricant oil filling lines may be installed within 1–2 weeks, while complete automated packaging lines may require several weeks including commissioning and training.

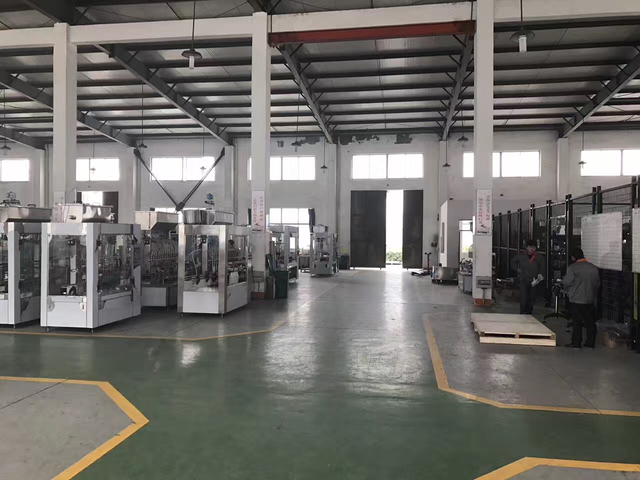

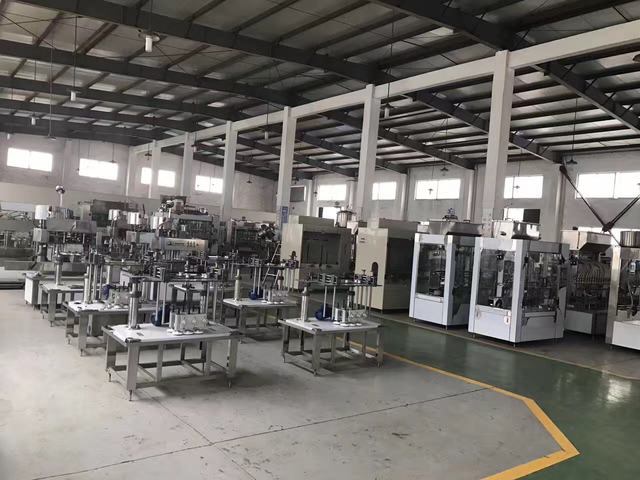

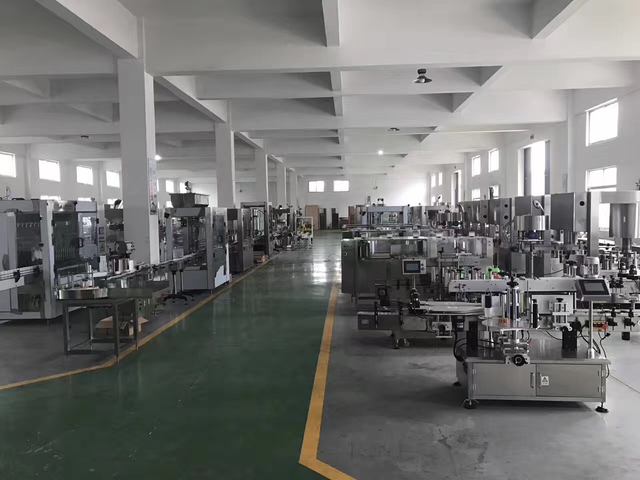

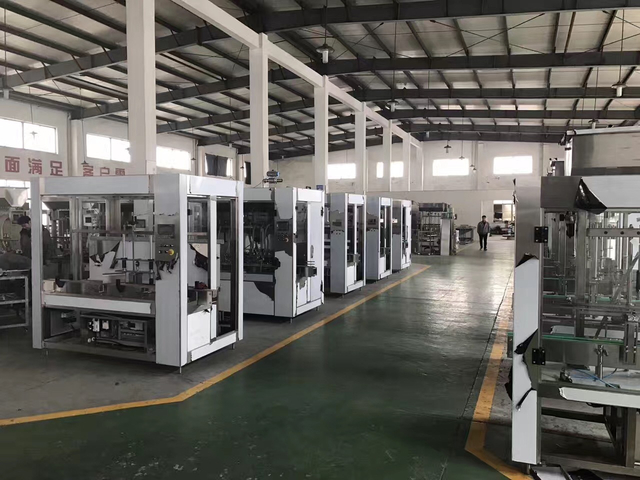

Choosing the right manufacturer depends on several factors:

• experience in lubricant oil packaging equipment
• engineering capabilities
• equipment quality and certifications
• after-sales service and technical support

Working with an experienced supplier ensures the lubricant oil filling line meets production requirements and operates reliably over the long term.
