600BPH 5 Gallon Water Filling Machine

How it Works:

This 5 gallon water filling machine is for 3 gallons and 5 gallons. 5 gallon water production line includes water treatment system, automatic barrel de-capper,, automatic external brushing machine, automatic barrel loading device, in/out barrel conveying, barreled water filling machine, automatic capping machine, light inspection equipment, automatic filming machine, shrinking film machine, coding Machine, automatic packing machine, palletizing machine.

Application:

3-5 gallon barrel water

Advantages:

Only two operators are needed for a line. Full auto and semi auto type are both optional as required.
  • PESTOPACK
  • One Year and Life-Long Technical Support
  • Engineers Available to Service Overseas
  • 3-5 gallon barrel
  • 3-5 gallon barrel water
  • Liquid
  • Full Automatic
Availability:
Quantity:

PESTOPACK-Banner1


PRODUCT DESCRIPTION


5Gallon Water Filling Machine - product

This 5 gallon water filling machine is for 3 gallons and 5 gallons. It is an ideal equipment for the production of mineral water, distilled water and pure water. It is made of high-quality stainless steel, corrosion-resistant and easy to clean. The main electrical components are all from international branded. The water filling machine has compact structure, high efficiency, stability, reliability and high automation. Machine adopts PLC control system and touch screen operation. 5 gallon water filling line includes water treatment system, automatic barrel de-capper,, automatic external brushing machine, automatic barrel loading device, in/out barrel conveying, 5 gallon water filling machine, automatic capping machine, light inspection equipment, automatic filming machine, shrinking film machine, coding Machine, automatic packing machine, palletizing machine.


FEATURES

  • This 5 gallon water filling machine is designed for the production of 3-5 gallons of bottled drinking water.
  • The gallon filling line is composed of three parts: barrel washing, filling and sealing.
  • The washing part of 5 gallon water filling machine adopts multiple spray of washing liquid and disinfectant to achieve the purpose of washing and disinfection. Disinfectant can be recycled.

  • The capping part of 5 gallon water filling machine can seal automatically, and the conveying bottle cap is equipped with a shower device to ensure that the platform is sterile and clean.
  • The main electrical components are from Siemens, Mitsubishi, Schneider, Omron and other well-known products.
  • The 5 gallon water filling machine has the advantages of compact structure, small footprint and high degree of automation. It is an ideal equipment for the production of mineral water, distilled water and pure water.
  • Only two operators are needed for a gallon filling line, which is wholly automatic barreled.
  • Full-auto or semi-auto barrel de-capper, full-auto leakage inspection, full-auto barrel outside brusher, full-auto barrel loading machine, steam shrinking film machine and coding system can be choose depends on what customer's need.


TECHNICAL PARAMETERS



Model Rinsing Filling heads Capacity Barrel volume Power
(KW)
Weight(KG)
PTGF-1200 rotary 8 1200BPH 12-19L
(3-5Gallon)

8 4000
PTGF-900 6 rows 6 900BPH 8 3500
PTGF-600 4 rows 4 600BPH 6 3000
PTGF-450 4 rows 3 450BPH 4 2100
PTGF-300 2 rows 2 300BPH 4 1500
PTGF-200 2 rows 2 200BPH 2.2 800
PTGF-100 1 row 1 100BPH 2 680




DETAILED PICTURES



5Gallon Water Filling Machine - details

1

Automatic De-capper


1, This 5 gallon water filling machine is driven by cylinder, controlled by PLC; Automatic working by barrel checking;
2, De-capping head is composed by claw device and cylinder, de-capping head position can move up and down, claw device can be adjusted slightly to be suitable for different caps.
3, When the gallon bottle comes into the machine, the de-capping head will go down and claw device will hold tightly barrel cap sides, and then lift the barrel to take off the caps; And when the caps are taken off, the compressor air will blow the caps into cap hopper, then fall outside into client's own holder;
The claw pressure is adjusted to protect caps.
2

Brush Internal-External Bottle Washer


1, The barrel water bottling machine is completely blocked to stop water leakage, when the gallon bottles are sent to washing position, the cylinder will increase the inner washers and insert into bottles, when the bottles are fixed by all brushes, the water will be pumped and jetted to bottle body, bottle rotates together with brushes; The bottles will be cleaned by brushes and water function;

2, No air compressor needed, it is easy for production and maintenance.

3

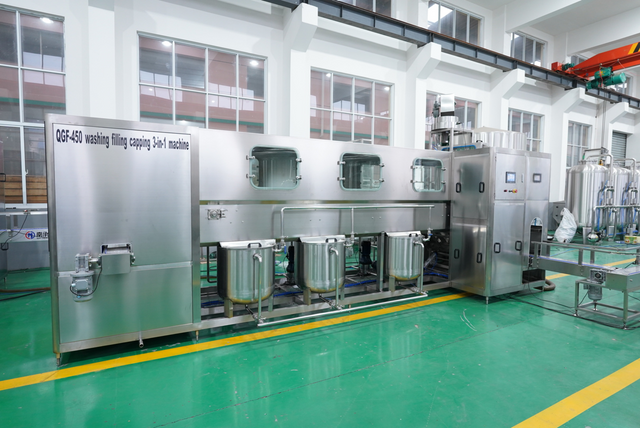

Washer/Filler/Capper with auto bottle loading


The5 gallon water filling machine is integrated washing filling and capping together. It is ideal machine to produce barrel water. The whole machine is using stainless steel 304 ,rot resistant,can be cleaned easily.Main electric parts are all branded. Air channel system use Air TAC brand product.The machine is with compact construction,will occupy small room,working efficiency is high.Only need 2 operators to control, is a good choice for factory to choose.


FLOW CHART

Gallon Water Filling Machine-flow chart



AUXILIARY EQUIPMENTS


5 Gallon Water Filling Machine-water treatment WATER TREATMENT FOR GALLON WATER PRODUCTION LINE

A. Pure water treatment system

Raw water--Pump--Silica sand filter--Carbon filter--Water softner--Reverse Osmosis -UV sterilizer-Ozone generator--Finished water tank

B. Mineral water treatment system

Raw water--Pump--Silica sand filter--Carbon filter--Water softner--Micro filter--Ultrafilter device -UV sterilizer--Finished water tank

Features:

1. Use high quality stainless steel for tanks, pipes and connectors.

2. Online type pressure auto self-protection device.

3. System safe protecting and alarm system.

4. All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system.

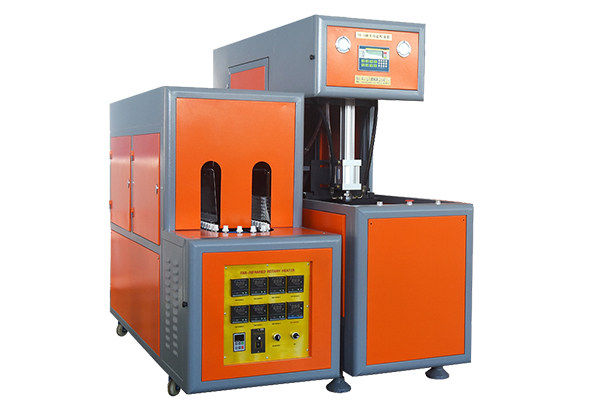

5 gallon water filling machine-blowing machine PET BOTTLE BLOWING MACHINE

This equipment in gallon water filling line can produce 10-20L water bottle, or 3Gallon to 5Gallon drink water bottle.

1. Special design for PET Gallon Bottle up to 6 Gallon
2.  Produce wide mouth jar up to 25 liter with neck size up to 200mm.
3.  Using Infrared reheat units to achieve uniform heating throughout the wall of preform
4.  Adopt special designed preform heating system to ensure the optimal heating effect for 730g thick-wall preform
5.  Special designed fan-cooling system in the heating channels to keep the oven with constant temperature and ensure the preform can be heated completely.
6.  Water cooling system ensures the quality of preform neck.
7.  Up to 90 bottles/hour using one-cavity mold for 5-gallon bottle
8.  Use advanced PLC control system with counting function and time-control precision to 0.01second, and a use-friendly panel.



5 gallon water filling machine-labeling machine SHRINK LABELING MACHINE

Shrink wrapping machine is mainly used for the industry packages for beverage, foods ,no foods glass, plastic bottles and cans, etc.

The machine in gallon water filling line can automatic finish bottle in-feeding, bottle formation, convey bottle, feed film to wrap and hot shrink to finish package.

Feeding film is tracked by photoelectrical sensor to ensure the accuracy film length.

PLC control, English and Man-machine interface, operating easy and simple maintain.

Advanced inverter to control speed and rotary air circulation structure.




PESTOPACK is an innovative and dynamic company in the design, manufacturing, maintenance and optimisation of pure water filling machine, beverage juice filling machine, carbonated drinks csd filling machine, beer filling machine, oil filling machine, sauce filling machine, household products filling machine, capping machine, labeling machine. We are specialized in liquid filling machinery and packing machinery field over 12 years.

In order to meet the demand for systems that fit seamlessly into existing operations, we have developed a range of packaging equipment that is unmatched in reliability, efficiency and cost effectiveness. And, because we understand that every line has its own unique requirements, each of our machines is customized to the individual needs of our customers.

We place our clients first and custom best solution for them until they are satisfied.


PESTOPACK Machinery-company profile(1)

Installation

We can dispatch our expert technicans to install 5 gallon water filling machine. Service charge includes installation fee, travel expenses and meals.


Training

For getting the best 5 gallon water filling machine performance, we offer on-site or at your factory training to dealers, machine operators, engineers and technicians.


Warranty

Provide efficient service, one year quality guarantee period, parts supply and quick feedback troubleshooting when 5 gallon water filling machine maintenance.


Consulting

We provide free consulting. Professional sales will give you the most suitable solution. CAD drawing design of 5 gallon water filling machine will be provided.


Technical Support

Offer 24/7 long life technical support. Just mail or give us a call, we will give quick feedback ASAP. Let you be free of worries.


Spare Parts

We will provide a set of spare parts in gallon water filling machine for free when shipping. Full-series quality parts can be ordered at any time with very reasonable price.


What type of machinery you supply?

We produce and sell packing machines like water treatment system, beverage processing machine, water filling machines, bottled water filling machines, pure water filling line, mineral water making machine, water production line, juice production line, juice filling machine, juice filling machine, CSD filling machine, carbonated drinks filling line, beer filling machine, oil filling machine, detergent filling machine etc.


How can I be sure the machine will absolutely work for my product?

We will test and run the bottled water or gallon water filling line with your bottle once machine completes and send you test run video to prove the machine works well and stable.


Will you send technical staff to help me with installation and operation training?

Yes, we have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.


How many years warranty of machine?

One-year warranty from the date of installation, during which if any parts fault in bottle or gallon water filling machine, we will courier to your replacing parts with replacing instructions.


When can I expect my email or questions to be replied?

Our working time is 9:00am--18:00pm Monday--Saturday, any email shall be replied within 24 hours normally. For an enquiry for 5 gallon water filling machine, the most recommended way of contact is by email, by sending your final product&photos to our email,due to our possible time difference.


We need basic information from you before providing suitable proposal.

What kind of products will you want to produce: water, juice, with gas or others?

Need single filling machine or the whole production line?

What is production capacity you expect, that means how many bottles per hour?

Bottle details : pet bottle or glass bottle; bottle volume; bottle shape or bottle picture?
