WATER FILLING MACHINE FOR SALE

The water filling machine for sale is suitable for filling various mineral water,drinking water, pure water, spring water, alcohol and other food industries. The water filling machines for sale are developed based on advanced technology and according to the filling process requirements of pure water and other beverages. As one of professionable water bottling machine manufacturers and suppliers, PESTOPACK specializes in water and beverage machinery industry and offer a wide range of automatic water bottling machine at very reasonable price and best service. Our water filling machines for sale are customized according to different shapes and sizes of bottle. Portable water bottling machine is the most popular water production machines customer need.

HOW AUTOMAITC WATER FILLING MACHINE WORKS

We have automatic water filling machines with different capacity. The small water filling machines are suitable for small water business, higer capacity water filling machines are for medium and big water business. The working process is purified the raw water from the ground or lake, make empty pet bottles, washing the empty bottles, filling water into bottles, sealing caps, labeling and coding on the bottle, packing the filled bottles into carton or film. So the water bottling machinery is mainly composed of four parts: water treatment system, bottle blowing system, filling system and packaging system. Pestopack supply turnkey solution for our customers with layout design and bottle design.

WATER FILLING MACHINE SELECTION

As one of the leading water bottling machine manufacturers and suppliers in China, PESTOPACK provides an extensive selection (3000BPH to 24000BPH) of water filling machines with high quality, competitive price and best service. Our water filling machines are designed to meet your needs and complete your production goals easily.

Type

CGF8-8-4

CGF14-12-5

CGF18-18-6

CGF24-24-8

CGF32-32-10

CGF40-40-12

CGF50-50-15

Rinsing heads

8

14

18

24

32

40

50

Filing heads

8

12

18

24

32

40

50

Capping heads

4

5

6

8

10

12

15

Filling volume

200-2000ml

200-2000ml

200-2000ml

200-2000ml

200-2000ml

200-2000ml

200-2000ml

Capacity

(b/h, 500ml)

2000-3000

4000-5000

6000-7000

10000-11000

12000-13000

17000-18000

23000-24000

Power (KW)

2.2

2.8

3.5

4.5

6

7.5

9.5

Dimension (mm)

2000*1650*2500

2400*1650*2500

2600*1920*2550

3100*2100*2800

3500*2800*2900

4600*2800*2900

5450*3300*2900

Weight(kg)

1500

2500

3500

4500

5600

8500

9800

FEATURES OF WATER BOTTLE FILLING MACHINE

Features-of-Water-Filling-Machine

The small bottle water filling machine for sale is for a wide range of production capacity from 3000BPH to 24000BPH.

Applicable to filling pet bottle for 200-2000ml.

High quality 304 grade stainless steel for main water filling machine material.

PLC control and touch screen operation, branded electrical components are used in water bottle filling machine.

High efficiency, low noise and low maintenaince.



Filling for pure water, mineral water, spring water and other non-carbonated drinks.

3 in 1 monoblock structure for automatic water filling machine makes machine cost more ecnomic.

The bottled water filling machine is built-in safeguard mechanism ensures the safety of operator and machine.

Spring type rinsing catcher can wash both inside and outside of the bottle.

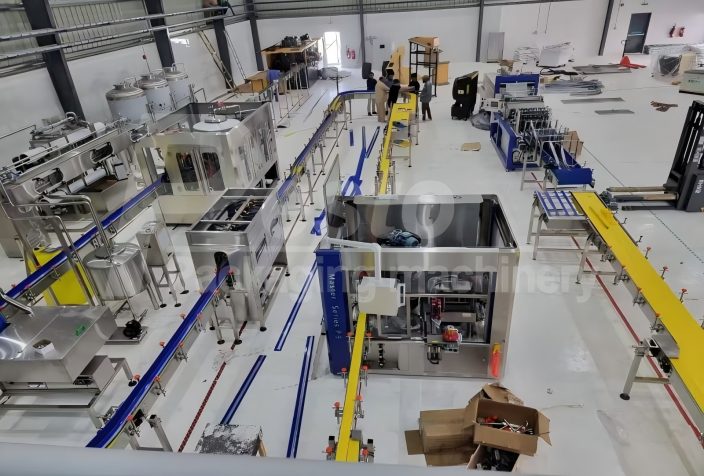

WATER BOTTLING MACHINE 3D LAYOUT

Water production line process

WHAT IS THE COST OF SETTING UP A COMPLETE WATER BOTTLING LINE?

HOW WATER FILLING MACHINE WORKS

How water filling machine works
Water filling machine works according to the gravity filling principle. This rotary water filling machine has three parts of stations.The process carried out by an automatic water filling machine includes three steps:

  Cleaning empty bottles

Cleaning empty bottles is one of the most important step in an automatic water filling machine. Cleaning is the only way to grant hygiene and safety to the water you are bottling. If we don't clean the empty bottles before filling, the water you are bottling maybe contaminated.

  Filling water in bottles

Filling the bottles with water is the most improtant step in an automatic bottle water filling machine. The bottles are grabbed by some grippers, while the above nozzles pour the water into them. Machines structures are different if you filling in pet bottles and filling in glass bottles. That means before you buy an autoamtic water filling machine, you should figure out container material. If you want to bottle your water into glass only, you would better focus on water filling machine specifically designed for glass bottles; on the other hand, the same suggestion can be made if you filling the water in PET bottles only.

  Sealing caps

It is the final step performed by an automatic water filling machine. The bottles are moved up to capping part that provides each of them with a cap and seal the water into protected atmosphere. After the capping, the filling process is finished, bottles are moved to label and packing process. Then your water is ready to be put on the market and sold locally or on a higher scale.

FINAL PRODUCT

Water filling machine-INAL-PRODUCT-
  Machine Name   Water bottle filling machine
  Bottle Type   PET bottles or glass bottles
  Volume 200-2000ml
  Bottle diameter 50-115mm
  Bottle height 160-320mm
  Production Capacity   3000-24000 bottles per hour
  Your Product   Mineral water/Drinking water/pure water/spring              water/purified water

DETAILS OF WATER BOTTLE FILLING MACHINE

Water filling machine-washing part

A. Washing Part In Water Bottle Filling Machine

1. Use spring cramps during bottle washing. Empty bottles can be turned 180° along the conveyor track. Wash twice inside and outside, the bottle washing efficiency is high.
2. The bottle holder is equipped with a high-efficiency spray on the nozzle. The squeezing drop at a 15° angle ensures that all sides of the bottle are washed and water is saved.
3. Made of stainless steel 304 of superior quality.

B. Filling Part In Water Bottle Filling Machine

The filling structure design is reasonable and sanitary, the water filling equipment runs smoothly, and the material can be controlled from the bottleneck, and the control accuracy is within ±2mm (subject to the bottle design). The filling valve material of 3 in 1 water filling machine is SUS304. The water bottle filling machine has automatic liquid level control. The lift of the filling valve is controlled by the valve lifter, and the filling starts after the filling valve touches the bottle neck. The bottles are transported by wheels in the filling section.
Water filling machine-filling part
Water filling machine-capping part

C. Capping Part In Water Bottle Filling Machine

1. Using advanced cap sealing technology, this improvement can reduce the defective rate of capping better and the traditional character of easy to set and adjust the torque of screwing capping head.
2. Placement and capping system, electromagnetic capping head with discharge function to ensure minimal bottle collision during capping.
3. No bottle no capping.
4. Automatc stop when lack of caps.
5. Use SUS304 material.

D. Air conveyor Before Water Bottle Filling Machine

1. The conveying for water production machine is stable, and the conveyor belt and the engine adopt synchronous chasing control, so that the bottle is in a good condition during conveying: no falling, no clogging, no paper jam.
2. The conveyor belt adopts modular design, which is easy to replace parts, compact in structure, low in noise, convenient in installation and maintenance, and can flexibly combine bottle types according to different capacities.
3. The electrical control design is advanced and reasonable. The control method can be designed according to the customer's layout, and the electrical control components can be selected to improve the conveying stability.
Water filling machine-AIR CONVEYOR

COMPONENTS IN WATER BOTTLING MACHINES FOR SALE

We use branded components like Panasonic, Siements, Festo, Schneider in water bottling machinery. Components brands can be customized.
Water filling machine-Components-Partners

HOW TO PRODUCE WATER BOTTLING MACHINE

How to produce a water bottling machine? In addition to professional designers, professional production equipment and installation teams are also required. To ensure the quality of each water filling machine for sale, we debug the water bottling machines as per requirement before shipping. Each water bottling equipment for sale from PESTOPACK is reliable and stable.
  • Water filling machine-Raw material

    Raw Material
  • Water filling machine-Cutting

    Cutting
  • Water filling machine-Shearing

    Shearing
  • Water filling machine-Bending

    Bending
  • Water filling machine-Drilling

    Drilling
  • Water filling machine-Welding

    Welding
  • Water filling machine-Assembly

    Assembly
  • Water filling machine-Debugging

    Debugging

BUY WATER BOTTLING MACHINE TO PROFIT YOUR WATER BUSINESS

  Customized Complete Solution

Provide A-Z turnkey complete water bottling machine line with different production capacity.The whole water production line includes water treatment system, bottle blowing machine, water filling machine, labeling machine, packing machine ect. Besides water filling line, we also provide raw meterials like bottle preform, caps, label rolls, film rolls ect.

 Perfect Service System

PESTOPACK will certainly be at your service 24/7. We supply solutions from factory layout designing, equipment installation, operation training, maintenance guidance, siting to budget planning, etc. We guarantees you timely delivery of wearing parts, spare parts, and other accessories. In all, you have the full support of water bottling machine from PESTOPACK Machinery.

 Lower Investment

Small investment high profit is core target for customers. With high cost performance, our water bottling machine are hot sales all around the world. No mater small scale water filling machine for sale or large capacity water bottling machine for sale, we alwasy give best price and best quality to our customers.



 Quality Management

PESTOPACK automatic water filling machine has undergonee extremely rigorous inspection and testing before sale. The water bottling machine produced by PESTOPACK company not only meets the national product implementation standard, but also passed the ISO9001-2000 quality system certification.


AUXILIARY EQUIPMENT FOR WATER FILLING MACHINE

Besides water filling machine for sale, we also provide turnkey complete water production line. Production capacity is from 3000BPH to 24000BPH. Besides pure water filling machine, also need water treatment system for water purify, bottle blowing machine for making pet bottles, labeling machine to labels of pvc, opp/bopp material, packing machine for film or carton.

FIND BEST WATER BOTTLING MACHINE MANUFACTURERS

As one of professional water bottling machine manufacturers and suppliers in China, PESTOPACK has a water packing machine factory including water bottling machine production workshop, raw material processing workshop, CNC finishing workshop, water filling machine assembly workshop. We have types of filling machines: fully automatic water filling equipment, rotary type water filling machines, linear type water bottling machines, 19 litre water bottling lines, purified water bottling system. Welcome to get water bottling machine price from us at any time. If you find China water packaging machine, please contact us, we will always give affordable and reliable water bottling equipment.

SERVICE OF WATER FILLING MACHINE FOR SALE

We put our customers first. Are you looking for water bottling equipment suppliers? PESTOPACK provides turnkey solution, after-service support and spare parts. We help customers acheive a high-efficiency operation of water filling machines and technical innovation and upgrade to join hands with customers for a win-win situation. We ensure water filling machines for sale are new and totally running well.
Water filling machine-SERVICE-PROCESS

WATER FILLING MACHINE PROJECTS

We have many water filling machine experienced projects for your reference. Mineral water bottling machines and drinking water filling machines are common machines customer ordered. PESTOPACK provides full solution of raw material, machine manufacturing, machine installation and debugging, after-sales service. You can get the best quality water bottle filling machine with best price from Pestopack.

RELATED MACHINES

Not only water filling machines, we also produce juice bottling machine, carbonated drink production line, beer filling equipment, oil filling machinery, sauce filling system, detergent filling line in water, beverage, food, chemical, personal care, household industries.

FAQ ABOUT WATER FILLING MACHINES

Orders

  • What is water filling machine?

    A water filling machine is an automated machine that fills water into bottles. The bottled water filling machine is a three-in-one integrated structure with functions of cleaning, filling and capping. It is the most economical water filling machine. Customers can choose different models of water filling machines according to production capacity, budget and bottle volume.

    Automatic filling machine is a modern equipment for producing bottled water. Compared with the semi-automatic type, the operation and maintenance of the bottled water filling equipment is simpler and more convenient. These automatic water bottling machines can save costs for bottled water producers because it is fully automatic and has high performance in producing bottled water. The structure design is simple and the failure rate is low.

    In addition, with the development of automation, in order to save manpower and costs, many people choose fully automatic rather than semi-automatic water injection machines. There are two types of automatic water filling machines: rotary automatic filling machines and linear filling machines. Both types can help make bottled water, reducing labor and increasing productivity.

  • How does an automatic water filling machine work?

    The automatic water filling machine works according to the gravity filling principle. This rotary water filling machine has three stations. The wash bottles are placed on a conveyor belt and taken to the wash unit. Their interior and exterior were washed with distilled water and dried. Filling - Bottles arrive at the filling unit by conveyor belt, and are filled into bottles in different ways according to the viscosity of the filling liquid. Cap filled bottles are sealed in this section until the end user opens them.

    Different types of automatic water filling machines have different functions. Automatic water filling equipment functions differently than glass bottle types. The functions of fully automatic water bottling machines and semi-automatic water bottling machines are also different. Empty bottles are conveyed to the inside of the portable water filling machine through an air conveying system, first into the bottle washer through a star wheel. The empty bottle bleaching machine turns the empty bottle down 180° to clean the inner and outer walls of the bottle.

    After the bottle is rinsed, the empty bottle is transferred to the desktop water filling machine through the star wheel for continuous filling, and the filling level is controlled by the air return pipe to ensure the filling accuracy. After the filling is completed, the cap is transferred to the capping machine by the star wheel, and the capping machine automatically grabs the cap to perform the capping function.

    The whole process runs continuously through PLC and pneumatic control, ensuring production efficiency, safety and health. After the bottle is filled and capped, the filled bottle leaves the autoamtic water filling machine through the outer conveyor belt, and the whole process runs automatically without manual intervention.

  • Types of automatic water filling machine for sale

    1. Automatic small water filling machine for sale
    The small bottled water filling machine is used for low-speed production of PET bottled water, which is suitable for customers with low price of bottled water filling machine to start a business. The fully automatic small water bottling machine allows investors to start a bottling plant with a low investment. PESTOPACK small water filling machines are highly efficient and cost-effective. It can produce from 330ml bottled water, 500ml bottled water to 2000ml bottled water.

    2. Automatic high-speed water filling machine for sale
    The structure of the high-speed water filling machine is specially designed, which can not only meet the speed requirements of the production line, but also save space and labor costs. The fully automatic high-speed water filling machine is not expensive and is the ideal solution if you want to be at the top of the entire bottled water market.

    3. Automatic large container water filling machine for sale
    The automatic large container water filling machine is specially designed for large bottles. PET material large bottles of yolume from one gallon to 15 liters can be used for home cooking.

    4. Fully automatic 5 gallon water bottling machine for sale
    The 5 gallon water bottling machine can produce 5 gallons of water and bottled water. It is produced high quality 5 gallon bottled water using a fully automatic flush filling and capping system.

    5. Automatic glass bottle water filling machine for sale
    Glass bottled water filling machine is high efficiency for glass bottled water. It is fully automatic. When customers want to produce high-end bottled water, PESTOPACK glass bottle water filling machine is the best choice. It can help to produce glass bottle mineral water and glass bottle sparkling water.

  • How to find good water bottling machine manufacturers

    Finding good water bottling machine manufacturers are not easy, and you can't just buy the water bottling machine from your local dealer. Unstable machines are easy to buy from companies that make inferior machines. Well-known companies like PESTOPACK are one of the best water bottling machine manufacturers. The company has a professional engineering team with more than 12 years of experience in the industry. They manufacture water bottling equipment including water treatment plants, mineral water bottling machines, small water bottling machines, 5 gallon water bottling machines.


    PESTOPACK owns factories including filling machine production workshop, raw material processing workshop, CNC finishing workshop, water filling machine assembly workshop.PESTOPACK factory has all kinds of precision machining machine tools and advanced inspection and testing equipment. The company can complete all kinds of water bottling machinery and packaging equipment. Rest assured, the company will provide high quality water filling machines with fast delivery. This is without a doubt the best place to buy an automatic water bottling machine.

  • How to do daily maintenance of water bottle filling machine?

    The most important electrical maintenance of the water bottle filling machine is daily maintenance.

    1. Check before power on.

    Check the power supply of the water bottling equipment every day before starting the machine for problems, and check whether the insulation outside the power supply is damaged or disconnected, and make sure that these places are all right. After there are no problems, start running the equipment, this is not only for the pure water bottle filling machine maintenance, but also for the safety of the operator.

    2. Check the motor daily.

    It is said that there is no need to disassemble it every day for maintenance, and the operator should also pay more attention to whether there is noise or poor flow when the motor is running. When this happens, if there is, stop working and start troubleshooting, then work after the final failure. If you work every day, lubricate the motor every once in a while.

    3. Pay attention to whether there is abnormal vibration, sound, etc. of the water injector.

    If you hear abnormal noise or find abnormal vibration of the water bottle filling machine during the work, you should stop working immediately, and the dyeing technician will deal with it. If you do not deal with it in time. May cause irreversible damage to the device.

    4. Review at the end of the work.


    Turn off the power and pull out the plug before leaving get off work every day to ensure that the machine is clean and the electricity is normal, which is convenient for simple review at work the next day without affecting the progress of the work.

  • Is water bottling business profitable?

    The bottled water business is still profitable, and it can be started on a relatively low budget. The smallest production capacity is 2000-3000BPH to start up. It will does not need too much investment for starting, when you grou up then inverst a larger scale capacity. There is a good opportunity to get profile as a wate botting business.
