Round Bottle Tabletop Labeling Machine

TABLETOP LABELING MACHINE VIDEO

TABLETOP LABELING MACHINE FOR SALE

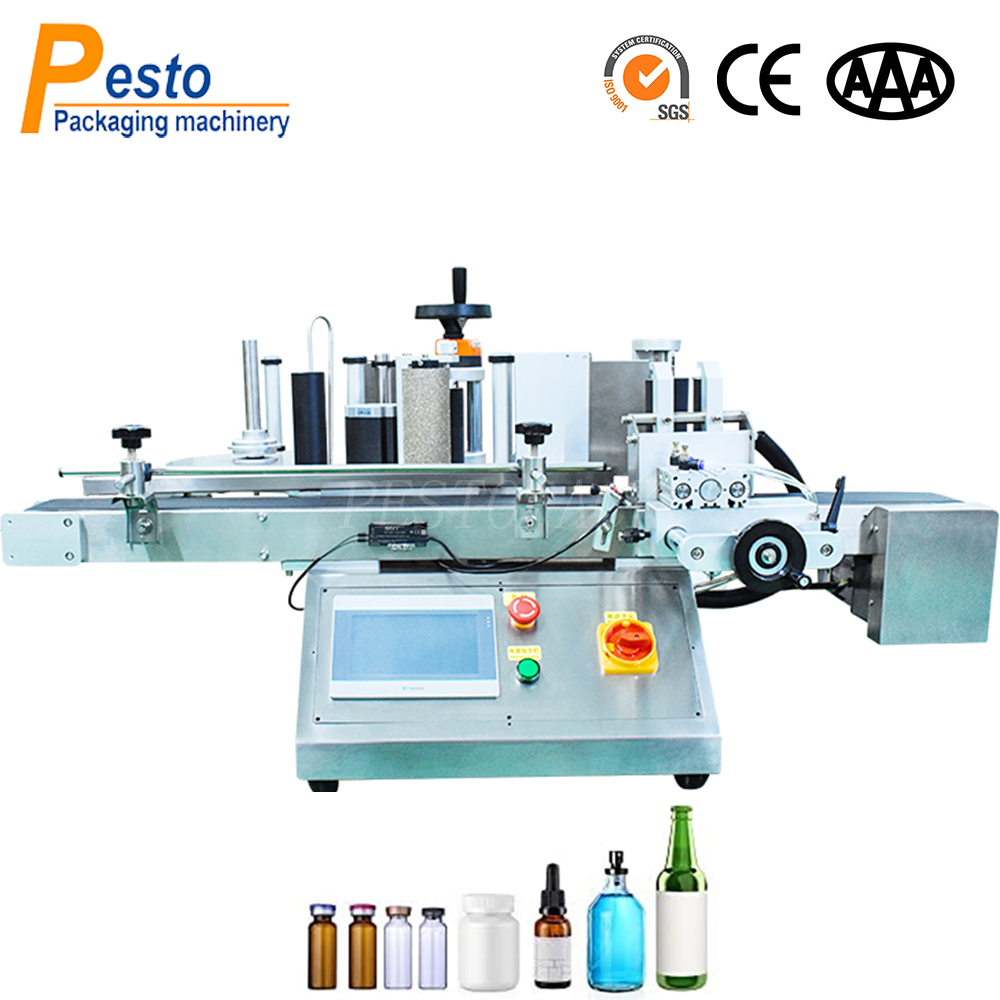

This small tabletop labeling machine is specifically designed, has the characteristic of uniqueness and is used for labeling on circumference and top of the cylinder or on assigned position (labeling on assigned position needs to add accessories). When getting familiar with the table top labeling machine, the machine can be also used for labeling on round container in other industries, such as canned food, round container for tinned food, cosmetics, medicine and so on.

HOW TABLETOP LABELING MACHINE WORKS

The working process of this tabletop labeling machine like this:

Place container →separate container→ conveyor→ product detection→ Label recovering→ Collect container.

1. Place product on the transportation belt of tabletop automatic labeling machine.

2. Container separating mechanism separates the containers in certain distance.

3. Under the dragging of the transportation belt, the container runs to the right side of the labeling mechanism automatically.

4. Container comes to the detected position and be detected by the electrical sensor which will feedback signals to PLC.

5. Traction motor rotates, sends out and pastes label on the product.

6. Labeling recovering mechanism twists and rolls label on the container.

7. Containers are transported and collected in the collecting container.

TABLETOP LABELING MACHINE STRUCTURE

1. Transportation mechanism: transmit products to labeling position and to the collecting mechanism after labeling.

2. Transition adjustment of tabletop wrap around labeler: receive products from the flowing line and do certain adjustment.

3. Labeling head of this table top labeling machine: core component of labeling to implement function of labeling.

4. Label recovering mechanism: twisting and rolling the label covered on the product.

5. Human-machine interface: human-machine communication window adjusts different parameters.

6. Product colleting plate: provide certain buffer area after labeling and can collect certain products.

7. Position mechanism: used for fixing product at certain position.

8. Electrical control box of tabletop round bottle labeler: centre of the motor of the tabletop labeling machine, to arrange kinds of controller and PLC.

TECHNICAL PARAMETERS OF TABLETOP LABELING MACHINE

1. Labeling precision: ±1mm (Errors of products and labels are not included.) and adjustment level will influence labeling precision obviously;

2. Labeling speed: 20～45 pcs/min (related with product label dimensions).

3. Application of table top label applicator: Samples provided by customers.

4. Applicable label: rolled label provided by customer.

5. Table top labeler dimension: 1930×1110×1520mm (length×width×height).

6. Applicable power: 220ACV 50/60HZ.

7. Tabletop bottle labeling machine weight: 185Kg.

DETAILS OF TABLETOP LABELING MACHINE

Labeling head

Product sensor

Adjustment mechanism

Positioning mechanism

Label recover mechanism

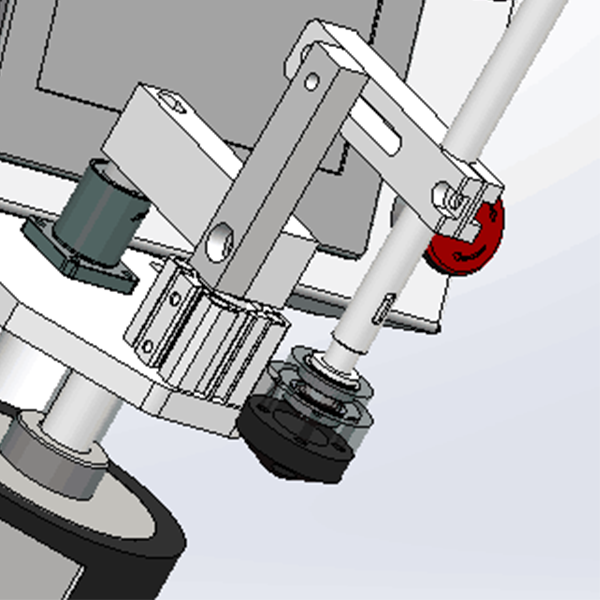

Top pressing mechanism
