Carbonated Drinks Filling Line For Glass Bottles Factory Price

PTPGF 18-6 carbonated drink filling line for glass bottle can be separated to 3 modules.The height of the bottle-out conveyor is adjustable, bottles are conveyed to rinser,filler and capper through starwheel and conveyed out finally through bottle-out conveyor.
  • PTPGF 18-6
  • PESTOPACK
  • One Year and Life-Long Technical Support
  • Engineers Available to Service Overseas
  • Carbonated drinks and soft drinks
  • Liquid
  • Full Automatic
  • glass bottle
Availability:
Quantity:

Product Description

PESTOPACK-Banner1





























PRODUCT DESCRIPTION


PTPGF 18-6 Carbonated Drink Filling Line For Glass Bottle adopts technology of air conveyor direct connect with bottle infeed starwheel to instead of screw and conveyor. It is easier and more simple to change over bottle size. Adopt neck handling technology to convey bottles.there is no need to adjust the height of equipment and only need to change some spare parts.

By 3-in-1 monoblock in carbonated drink filling line ,the bottle goes through washing,filling and capping with little abrasion,and the transferring is stable,bottle changing is easier. Specially designed stainless steel bottle gripper dose not contact the thread parts of the bottle neck,avoiding the second contamination. Pressure liquid carousel.High speed and mass flow filling valve ensures the high filling speed and exact fluid level.parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.the electric system is from international brand and achieves the national food hygienic standard.the bottle-out starwheel is helical structure.while changing over bottle size. It is no need to adjust bottle-out conveyor height.




DETIAL PICTURES


Carbonated drink filling line - detials1

Carbonated drink filling line - detials2




TECHNICAL PARAMETERS


Model PTPGF 12-6 PTPGF 18-6 PTPGF 24-6 PTPGF 32-8 PTPGF 40-10
PTPGF 50-12 PTPGF 60-15
Filling heads 12 18 24 32 40 50 60
Capping heads 6 6 6 8 10 12 15
Capacity(BPH) 2000 3500 5000 8000
12000 16000 20000
Power 2.2 3.5 4.5 6 7.5
9.5
11.2
Dimension(mm) 2400x1600x2500 2600x1920x2550 3100x2300x2800 3800x2500x2900 4600x2800x2900 5450x3300x2900 6500x4500x2900
Weight(kg) 2500 3500 4500 5600
8500 9800 12800


SERVICE

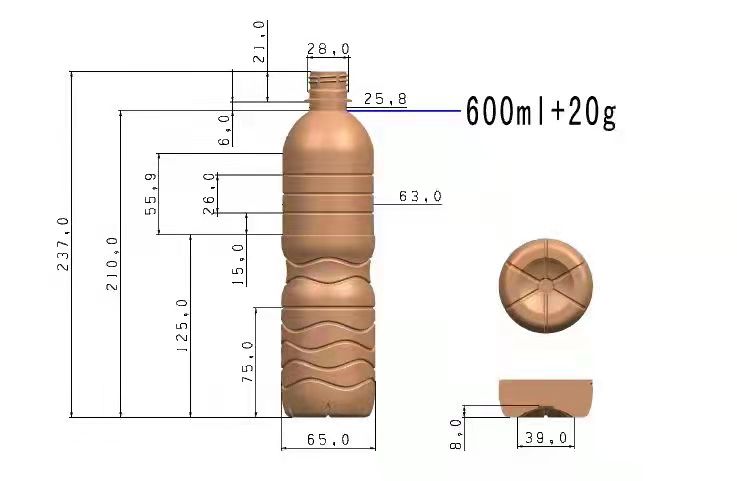

Bottle Design Service for carbonated drink filling line
Our engineer can design different bottle drawing for your reference

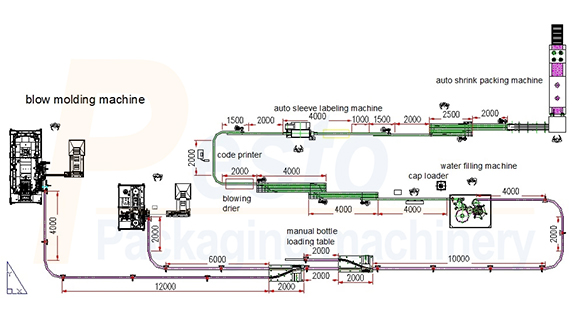

Layout Design Service
We supply standard layout for each water filling machine line,
also available for customize design layout based on customers factory size


Label Design Service
Design colorful label for customers choice


Sales Service of carbonated drink filling line
Before Sales
1.Answer your any question on us within 24 hours.
2.Supply all information you required.
3.Machines video for reference
4.Welcome to visit factory

On Sales
1.Update production progress each week
2.Sending machines pictures on production
3.Machines testing running over 8 hours, and sending testing videos

After Sales
1.engineer arranged to install machines
2.Spare Parts provided




ABOUT US


Carbonated drink filling line - about us1Carbonated drink filling line - about us2



Company Profile

PESTOPACK is an innovative and dynamic company in the design, manufacturing, maintenance and optimisation of pure water filling machine, beverage juice filling machine, carbonated drinks csd filling machine, beer filling machine, oil filling machine, sauce filling machine, household products filling machine, capping machine, labeling machine. We are specialized in liquid filling machinery and packing machinery field over 12 years.

In order to meet the demand for systems that fit seamlessly into existing operations, we have developed a range of packaging equipment that is unmatched in reliability, efficiency and cost effectiveness. And, because we understand that every line has its own unique requirements, each of our machines is customized to the individual needs of our customers.

We place our clients first and custom best solution for them until they are satisfied.


PESTOPACK Machinery-company profile(1)



After Sales Service

Installation

We can dispatch our expert technicans to install carbonated drink filling line. Service charge includes installation fee, travel expenses and meals.


Training

For getting the best carbonated drink filling line performance, we offer on-site or at your factory training to dealers, machine operators, engineers and technicians.


Warranty

Provide efficient service, one year quality guarantee period, parts supply and quick feedback troubleshooting when carbonated drink filling line maintenance.


Consulting

We provide free consulting. Professional sales will give you the most suitable solution. CAD drawing design of carbonated drink filling line will be provided.


Technical Support

Offer 24/7 long life technical support. Just mail or give us a call, we will give quick feedback ASAP. Let you be free of worries.


Spare Parts

We will provide a set of spare parts in carbonated drink filling line for free when shipping. Full-series quality parts can be ordered at any time with very reasonable price.

FAQ

What type of machinery you supply?

We produce and sell packing machines like water treatment system, beverage processing machine, water filling machines, bottled water filling machines, pure water filling line, mineral water making machine, water production line, juice production line, juice filling machine, juice filling machine, CSD filling machine, carbonated drinks filling line, beer filling machine, oil filling machine, detergent filling machine etc.


How can I be sure the machine will absolutely work for my product?

We will test and run the bottled water or carbonated drink filling line with your bottle once machine completes and send you test run video to prove the machine works well and stable.


Will you send technical staff to help me with installation and operation training?

Yes, we have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.


How many years warranty of machine?

One-year warranty from the date of installation, during which if any parts fault in water filling machine or carbonated drink filling line, we will courier to your replacing parts with replacing instructions.


When can I expect my email or questions to be replied?

Our working time is 9:00am--18:00pm Monday--Saturday, any email shall be replied within 24 hours normally. For an enquiry for carbonated drink filling line, the most recommended way of contact is by email, by sending your final product&photos to our email,due to our possible time difference.


We need basic information from you before providing suitable proposal.

What kind of products will you want to produce: water, juice, with gas or others?

Need single filling machine or the whole production line?

What is production capacity you expect, that means how many bottles per hour?

Bottle details : pet bottle or glass bottle; bottle volume; bottle shape or bottle picture?
