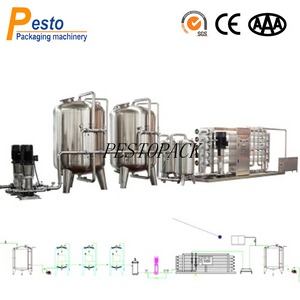

5T/H Water Purification System

The water purification system is applicable to pure water, mineral water, beverage products, water and process water of various types of water treatment equipment.
  • 5T/H
  • PESTOPACK
  • One Year and Life-Long Technical Support
  • Engineers Available to Service Overseas
  • Pure water, mineral water, beverage products
  • Full Automatic
Availability:
Quantity:

Product Description

PESTOPACK MACHINERY BANNER

FLOW CHART


Application of drinking water purification system: pure water, mineral water and other bottled water,water for food and beverage production.

Water treatment equipment flow chart


Model Production capacity
(Ton/h )
Motor power
(kw)
Membrane Entrance
Diameter (mm)
Size(L*W*H)
( mm)
Weight
(Kg)
PT-5 5 7 8040 Φ60 2550*750*1750 300

DETAILS OF WATER PURIFICATION SYSTEM


Water treatment equipment flow chart


First stage pretreatment (sand filtration)

The main purpose of using a multi-media quartz sand filter is to remove silt, manganese, rust, colloidal substances, mechanical impurities, suspended solids and other substances that are harmful to the human body with particles above 20UM in the water.


Second stage pretreatment (carbon filter)

Activated carbon filters are used to remove pigments, odors, a large number of chemical and biological organic substances in water, and reduce harmful pollutants such as water residues and pesticide pollution.


The third stage pretreatment (resin softener)

Cationic resin used for water softening, mainly to remove the hardness of water. So as to effectively prevent reverse osmosis membrane fouling. The system can automatically recoil, so it is red.



Fourth stage pretreatment (micron filter)

To remove fine particles of particle size in water, the sand filter can remove very fine colloidal particles in water, making the turbidity up to 1 degree.



Reverse osmosis system

The core equipment of the water pump is imported, and the diaphragm is imported from American Hydranautics. Equipped with a full set of cleaning units. It has the characteristics of simple structure, convenient operation and high technological level.


UV sterilize

It uses the UV to kill some bacteria that may also pass through the reverse osmosis system.


Ozone sterilizer

Some bacteria may not be killed by UV, the sterilizer uses ozone to kill those bacteria.


BUILD A TURNKEY WATER BOTTLING PLANT

Help our customers build an ideal water factory. Through effective cost control, we have found the right balance with our customers: diversified production range, high-end packaging form. At the same time, due to the efficient operation mode of the water filling equipment, the market competitiveness has been improved.
