2T/H Water Treatment Plant Reverse Osmosis Machine System

FLOW CHART

Application of drinking water treament machine: pure water, mineral water and other bottled water,water for food and beverage production.

DETAILS OF WATER TREATMENT SYSTEM

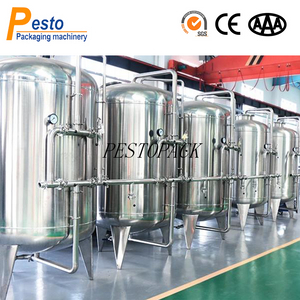

Multiple medium filter

Multi-media filter is a process by using several filter media to make the high turbidity of water through a certain thickness of granular or non-grain material in a certain pressure, then effectively removing the suspended impurities to make the water clarification ,.The commonly used filter is quartz sand, anthracite, manganese sand and so on.

1.Output: 4 tons per hour

2.Vertical type cylinder;

3.Diameter: ￠400*2000mm;

4.Work pressure:≤0.6Mpa;

5.Work flow speed: ≤4m3/h

6.Material of shell: SS304

7.The thickness of the shell: 3mm

Active carbon filter

Activated carbon filter is use the activated carbon adsorption process, it can effectively deodorant, to color, dechlorination, removal of organic synthetic detergent, some heavy metals, viruses, and some radioactive material.

1. Output:4tons per hour

2. Vertical type cylinder;

3. Diameter:￠400*2000mm;

4. Work pressure:≤0.6Mpa;

5. Work flow speed: ≤4m/h

6. Material of shell: SS304

7. The thickness of the shell: 3mm

Sodium-ion exchange

Sodium-ion exchanger namely softener,it is used to remove calcium ion and magnesium ion of the water, making the water softening ,reduce the water hardness.

1. Output:4tons per hour

2. Vertical type cylinder;

3. Diameter: ￠400*2000mm;

4. Work pressure:≤0.6Mpa;

5. Work flow speed: ≤4m/h

6. Material of shell: SS304

7. The thickness of the shell: 3mm

Precision filter

Precision filter contain honeycomb filter, folding filter element filter, etc., used to remove solid particles, suspended solids, bacteria and other impurities, filtering accuracy range of 0.2-100μm.

R/O system

The pore size of the membrane in the reverse osmosis device is 0.001 micron. After this process, 99.2% of the heavy metal ions and carcinogens in the water are absolutely removed.

All kinds of capacity indicator, pressure indicator, solenoid valve, balance device and pipeline valve system.

On-line pressure automatic self-protection device.

On-line electric quantity indicator (with stable compensation)

System safety protection and alarm system.

1.Production capacity: 2000L/H

2.Power :5.5kw

3.Desalt rate:98%

4.Rate of recovery:50-60%

5.Raw water conductivity:<200us/cm

6.Filtered water conductivity: <10us/cm

7.The size: 2600*1000*2000mm

8.Weight: 2500KG

9.Rate pressure:150Mpa

Ozone Generator

Ozone molecule As a kind of strong oxidizers with its function on the field of sterilizing. It has the special function to deal with the poisonous and Hardly-decomposed contamination and to improve the biology activity.

Complete a turnkey water bottling line

Pestopack has deep skills in waterworks engineering. Customers can consult their experts for the best water bottling line solution, saving money and space without compromising the quality they need to remain strong in the market.

As a professional water filling machine manufacturer, the most important factor for the success of a good turnkey bottling line is the ability to listen and understand the customer's needs, study the project carefully and implement it correctly. A turnkey bottling line can only achieve its goals if quality, efficiency and savings are fully met. Our production range of is from 3,000 bph to 24,000 bph.
