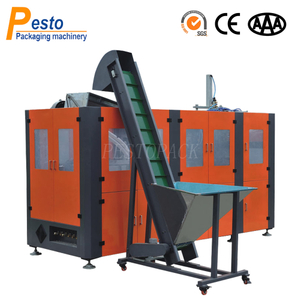

2000BPH Full Automatic Bottle Blowing Machine

Full automatic bottle blowing machine is suitable for blowing plastic containers and plastic bottles of any shape with pet as the main raw material. It is widely used in blowing carbonated beverage bottles, mineral water bottles, oil bottles, pesticide bottles, cosmetic bottles, etc. Reasonable design, fully automatic control, arc infrared heater, operation adopts full computer digital control, small spacing between preforms, uniform heating, greatly reducing power and manpower. The use of fan-shaped opening and closing molds reduces the cylinder and cylinder diameter and improves production efficiency.

  • PT-1800
  • PESTOPACK
  • Full automatic bottle blowing machine
  • One Year and Life-Long Technical Support
  • Engineers Available to Service Overseas
  • Water, beverage, food, pharmaceutical, chemical industries.
  • Full Automatic
  • Polyester bottles 100-2000ml
  • PLC+Touch screen
  • Preforms loading-Bottle making-Bottle output
Availability:
Quantity:

Product Description

PESTOPACK-Banner1



PRODUCT OVERVIEW


Full automatic Bottle blowing machine-product overview


FEATURES OF BOTTLE BLOWING MACHINE


✅ The whole automatic bottle blowing machine has low energy consumption, high degree of automation, simple operation, and adopts a touch screen control panel.
✅  It adopts internationally renowned imported servo motor, which is energy-saving and stable, which is more than 30% more energy-saving than the cylinder drive system.
✅ The electrical and pneumatic components of the whole bottle blowing machine adopt imported brand-name products to ensure the stability and service life of the equipment.
✅  The bottle making machine is equipped with several sets of cam precision manipulators; the cam mechanism is used to accurately control the preform, bottle taking and mold opening and closing processes to ensure the accuracy and efficiency of each movement process.
✅ Automatic preform loading equipment, self-service and independent design, no tube preforms stuck, continuous preform loading, stable and efficient
✅ It is suitable for blowing plastic containers and plastic bottles of any shape with pet as the main raw material. It is widely used in blowing carbonated beverage bottles, mineral water bottles, oil bottles, pesticide bottles, cosmetic bottles, etc. Reasonable design, fully automatic control, arc infrared heater, operation adopts full computer digital control, small spacing between preforms, uniform heating, greatly reducing power and manpower. The use of fan-shaped opening and closing molds reduces the cylinder and cylinder diameter and improves production efficiency.



TECHNICAL PARAMETERS


General Information PT-1800-2cavity
Clamping Force 480KN
Clamping Stroke 125mm
Max.Stretching Stroke 370mm
Bottom Moving Stroke 60mm
Number of Cavity 2cavity
Output 1500-2000BPH
Max.Mould Thickness 300mm
Electrical System
Voltage Standard 380V/3PH/50HZ or special order
Number of Heating Zone 2 Sections
Total Power 15KW
High Pressure System 3.0-4.0Mpa
Low Pressure System 0.8-1.0Mpa
Plastic Container
Container Volume 0.1-2.0L
Neck Diameter Range 38-50mm
Max.Container Diameter 360mm
Container Height 380mm
Diameter &Weight
Machine Size 225x160x200cm
Auto-loader Size 150x150x220cm
Net Weight 2T



FLOW CHART


Full automatic Bottle blowing machine-flow chart




DETAILED PICTURES OF BOTTLE BLOWING MACHINE

  Full automatic Bottle blowing machine-details picture


AFTER SERVICE FROM BOTTLE BLOWING MACHINE SUPPLIER


Installation

We can dispatch our expert technicans to install pet bottle blowing machine. Service charge includes installation fee, travel expenses and meals.


Training

For getting the best water bottle blowing machine performance, we offer on-site or at your factory training to dealers, machine operators, engineers and technicians.


 Warranty

Provide efficient service, one year quality guarantee period, parts supply and quick feedback troubleshooting when water bottle blowing machine maintenance.


 Technical Support

Offer 24/7 long life technical support. Just mail or give us a call, we will give quick feedback ASAP. Let you be free of worries.


 Spare Parts

We will provide a set of spare parts in plastic bottle blowing machine for free when shipping. Full-series quality parts can be ordered at any time with very reasonable price.
