800BPH Semi Automatic Water Bottle Making Machine

PT-1500 semi automatic bottle making machine is suitable for producing PET plastic containers and bottles in all shapes. Manual bottle blowing machine is suitable for edible oil, water, beverage, food jar, cosmetic, pharmaceutical industry.

  • PT-1500
  • PESTOPACK
  • Semi automatic bottle making machine
  • One Year and Life-Long Technical Support
  • Engineers Available to Service Overseas
  • Water, beverage, food, pharmaceutical, chemical industries.
  • Semi Automatic
  • 500-800BPH

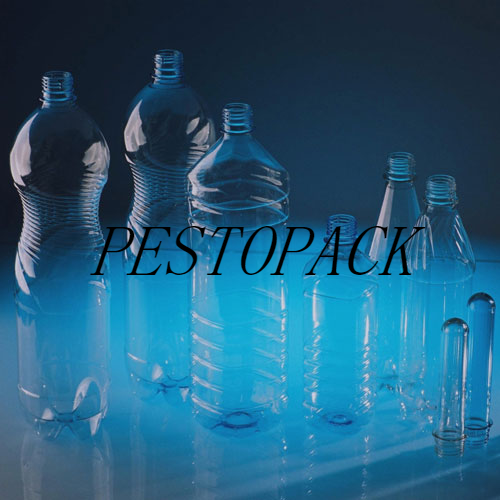

  • Polyester bottles(0.1L 0.2L 0.5L 0.6L 1L 1.5L 2L)
  • Bottle making
Availability:
Quantity:

Product Description

PESTOPACK-Banner1


semi auto water bottle making machine-product


APPLICATION OF SEMI AUTOMATIC BOTTLE MAKING MACHINE


water bottle making machine-application


DESCRIPTION OF SEMI AUTOMATIC BOTTLE MAKING MACHINE


PT-1500 semi automatic water bottle making machine is suitable for producing PET plastic containers and bottles. It is widely used to produce the carbonated bottles, mineral water, carbonated drink bottle, pesticide bottles oil bottles cosmetics,wide-mouth bottles, etc. Adopting double crank to adjust mold, heavy locking mold, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally. The air system has been divided into two parts: the pneumatic action part and the bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular-shaped bottles. The semi automatic pet bottle making machine is also equipped with a muffler and oiling system to lubricate the mechanical part of the machine. The semi auto plastic bottle making machine can be operated in the step-by-step mode and the semi-auto mode. Semi auto bottle maker machine is small with low investment, easy, and safe to operate.


FEATURES OF SEMI AUTO BOTTLE MAKING MACHINE


✅ Infrared lamps in semi auto water bottle making machine is adoped in the pre-heater ensures PET preforms being heated evenly.

✅ Mechanical-double-arm calmping ensures mould being tightly closed under hight pressure and high temperature.

✅ Pneumatic system consists of two parts: pneumatic acting part and bottle blowing part. In order to meet different requirements for both acting and blowing, it provides sufficient steady high pressure to blowing, and also provides sufficient steady high pressure to blow large irregular shape bottles.

✅ The semi automatic pet bottle making machine is equipped with silencer and oiling system to lubricate the mechanical pars of the machine.

✅ Operated step-by-step and in semi-auto made.

✅ Wide-mouth jar and hot-fill bottles can also be made in this semi auto plastic bottle making machine.


TECHNICAL PARAMETERS


General Information
PT-1500
One Blower And One Heater
PT-1500-2
Two Blower And One Heater
Name: Semi automatic bottle making machine
 Clamping Force
10T
 Clamping Stoke
160mm
 Max.Stretching Stroke
360mm
 Number of Cavities
1 Cavity
2 Cavity 2Pcs
 Theoretical Output
0.1-2L:600-800 BPH
0.1-2L:1000-1600 BPH
 Max.Mould Thickness
220mm
 Mould plate size
470x350mm
 Voltage Standard
380v/3PH/50Hz or special order
 Total Power(Full Loaded)
3-10KW
5-15KW
 Min air compressor
1.0m3/min 3.0Mpa
1.2m3/min 3.0Mpa
Net dimension & Weight(LxWxH)
 Blow Molding Machine
145x60x170cm
145x60x170cm 2Pcs
 Pre-heater
180x70x140cm
 Net Weight
1.1T
1.6T
Container
 Container Volume
1.5L
 Neck Diameter Range
8-60mm
 Container Diameter
115mm
 Container Height
360mm



FLOW CHART OF SEMI AUTOMATIC BOTTLE MAKING MACHINE

semi auto water bottle making machine-flow chart



AFTER SERVICE FROM SEMI AUTO BOTTLE MAKING MACHINE SUPPLIER


Installation

We can dispatch our expert technicans to install semi auto water bottle making machine. Service charge includes installation fee, travel expenses and meals.


Training

For getting the best semi auto water bottle making machine performance, we offer on-site or at your factory training to dealers, machine operators, engineers and technicians.


 Warranty

Provide efficient service, one year quality guarantee period, parts supply and quick feedback troubleshooting when semi auto pet bottle making machine maintenance.


 Technical Support

Offer 24/7 long life technical support. Just mail or give us a call, we will give quick feedback ASAP. Let you be free of worries.


 Spare Parts

We will provide a set of spare parts in semi auto plastic bottle making machine for free when shipping. Full-series quality parts can be ordered at any time with very reasonable price.
