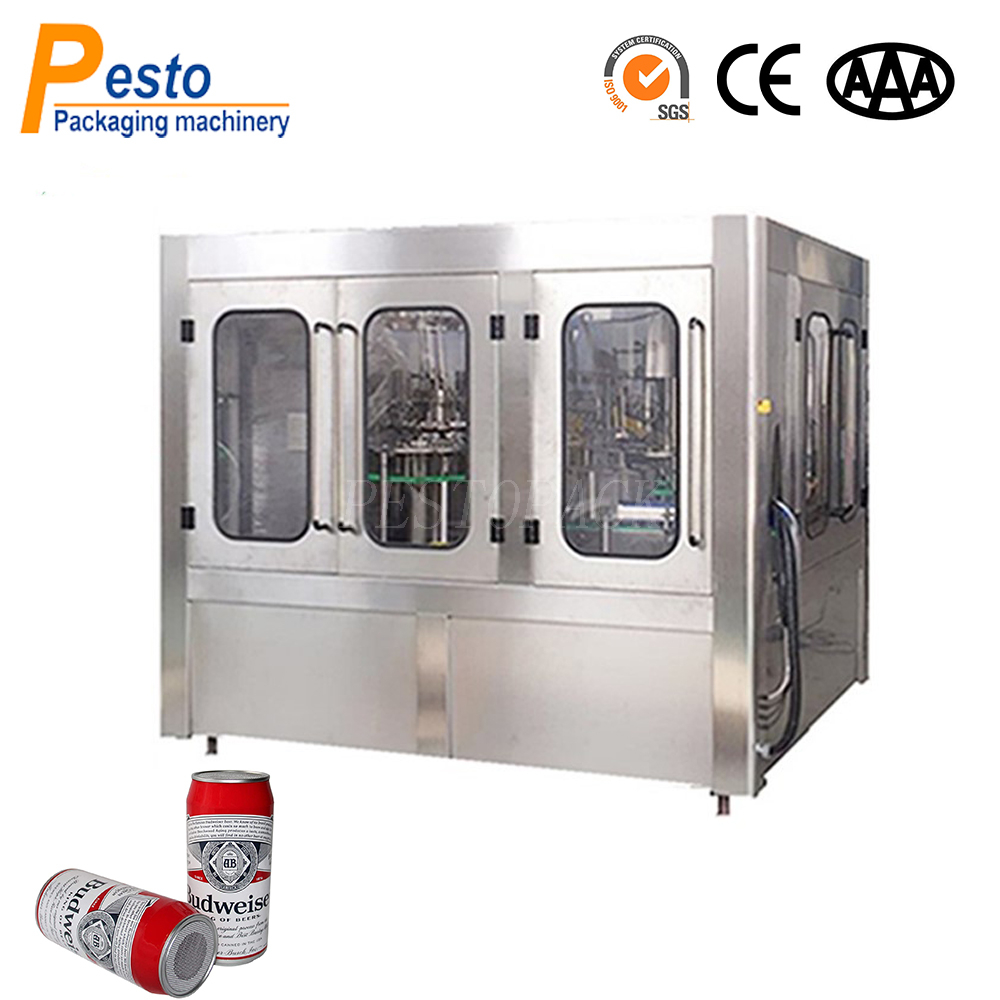

Beer Pop Top Can Filling Machine 9000BPH

The 18-4 beer can filling machine is mainly used for rinsing, filling and capping of cans such as tinplate, aluminum alloy and PET plastic. It has the functions of automatic lifting, automatic turning over, automatic flushing, filling and capping of stacks of empty cans, and large production capacity, which is an ideal equipment for producing beer and carbonated beverages. For example: Beer, Coke, Sprite and other soft drinks.
  • 18-4

  • PESTOPACK

  • One Year and Life-Long Technical Support

  • Engineers Available to Service Overseas

  • Beer, carbonated drinks, soft drinks

  • Liquid

  • Full Automatic

  • 9000 bottles per hour

  • Pop-top cans

  • PLC+Touch screen

  • SUS304

  • Washing Filling Sealing-Labeling-Packing

  • Siemens/Schneider/Mitsubishi/AirTac/Delta/Can customized

Availability:
Quantity:

Product Description

PESTOPACK-Banner1



























DESCRIPTION OF BEER CAN FILLING MACHINE


This beer can filling machine adopts the principle of equal liquid level filling, which is suitable for normal temperature filling and high temperature filling. It can be equipped with steam injection mechanism when filling at normal temperature. The empty can is limited by the variable pitch screw and enters the dial. After the dial dials the empty can into the center of the bottle holder, the empty can and the filling valve are centered, and the can holder is lifted by the can holder cam to make the empty can and the filling valve. The mouth is sealed, and the canister cam continues to rise to open the filling valve for filling. When the cam descends, the filling valve is closed and the can is removed from the filling valve. The can is now lowered to the working position above and below the can holder. The canned cans enter the hook chain link, and the cans are sent to the sealing machine through the transition plate under the action of the hook.

The cover in beer can filling machine is sent to the mouth of the can through the cover divider, the cover feeding dial and the pressure head, and the can holding mechanism is raised to make the can rise to the position of the cover. The first three are tightly pressed, and then the first sealing wheel is pre-sealed under the action of the sealing cam, and the second sealing wheel is sealed under the action of the sealing cam. After the actual sealing is completed, the sealed can is pushed out by the head of the capping mechanism and enters the can discharge dial, and the can discharge dial moves the can to the can discharge conveyor line to complete the whole process from filling to sealing.


FEATURES


1. This beer can filling machine is used for washing, filling and capping of two-piece cans, aluminum cans, PET plastic cans and other cans.

2. It has the functions of automatic lifting, automatic washing, filling and capping of the whole stack of empty cans.

3. Large production, the beer filling machine is the best equipment for the production of filling gas drinks.


DETIALED PICTURES


Beer can filling machine-filling part

Filling part

1.304/316 stainless steel high precision filling nozzle in beer can filling machine.

2. The filling volume can be fine-tuned, and the liquid level is the same after filling.

3. All 304/316 stainless steel contact parts and liquid tanks, finely polished, no dead corners, easy to clean.

4.304/316 stainless steel filling pump in beer can filling machine.

5. Thoroughly rinse with efficient spray, save water for rinsing.








Beer can filling machine-capping part

Capping part


1. Placement and capping system, electromagnetic capping head with unloading function to ensure minimal bottle collision during capping

2. All 304/316 stainless steel construction in beer can filling machine.

3. No bottle and no cap

4. Automatically stop when there is no bottle in beer can filling machine.

5. The capping effect is stable and reliable.



TECHNICAL PARAMETERS



Model 18-4
Capacity(BPH) 9000
Bottle size Dia 50-80mm  Height 80-150mm
Power 5
Dimension(mm) 2900&1850*1900mm
Weight(kg) 3500


AUXILIARY EQUIPMENTS


DEPALLETIZER

Beer can filling machine-depalletizer




Company Profile

PESTOPACK is an innovative and dynamic company in the design, manufacturing, maintenance and optimisation of pure water filling machine, beverage juice filling machine, carbonated drinks csd filling machine, beer bottling machine, oil filling machine, sauce filling machine, household products filling machine, capping machine, labeling machine. We are specialized in liquid filling machinery and packing machinery field over 12 years.

In order to meet the demand for systems that fit seamlessly into existing operations, we have developed a range of packaging equipment that is unmatched in reliability, efficiency and cost effectiveness. And, because we understand that every line has its own unique requirements, each of our machines is customized to the individual needs of our customers.

We place our clients first and custom best solution for them until they are satisfied.




After Sales Service

Installation

We can dispatch our expert technicans to install beer can filling machine. Service charge includes installation fee, travel expenses and meals.


Training

For getting the best beer can filling machine performance, we offer on-site or at your factory training to dealers, machine operators, engineers and technicians.


Warranty

Provide efficient service, one year quality guarantee period, parts supply and quick feedback troubleshooting when beer can filling machine maintenance.


Consulting

We provide free consulting. Professional sales will give you the most suitable solution. CAD drawing design of can filling machine will be provided.


Technical Support

Offer 24/7 long life technical support. Just mail or give us a call, we will give quick feedback ASAP. Let you be free of worries.


Spare Parts

We will provide a set of spare parts in beer filling line for free when shipping. Full-series quality parts can be ordered at any time with very reasonable price.

FAQ

What type of machinery you supply?

We produce and sell packing machines like water treatment system, beverage processing machine, water filling machines, bottled water filling machines, pure water filling line, mineral water making machine, water production line, juice production line, juice filling machine, juice filling machine, CSD filling machine, carbonated drinks filling line, beer filling machine, oil filling machine, detergent filling machine etc.


How can I be sure the machine will absolutely work for my product?

We will test and run the bottled water or beer filling machine with your bottle once machine completes and send you test run video to prove the machine works well and stable.


Will you send technical staff to help me with installation and operation training?

Yes, we have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.


How many years warranty of machine?

One-year warranty from the date of installation, during which if any parts fault in water filling machine or beer bottling machine, we will courier to your replacing parts with replacing instructions.


When can I expect my email or questions to be replied?

Our working time is 9:00am--18:00pm Monday--Saturday, any email shall be replied within 24 hours normally. For an enquiry for glass bottle beer bottling machine, the most recommended way of contact is by email, by sending your final product&photos to our email,due to our possible time difference.


We need basic information from you before providing suitable proposal.

What kind of products will you want to produce: water, juice, with gas or others?

Need single filling machine or the whole production line?

What is production capacity you expect, that means how many bottles per hour?

Bottle details : pet bottle or glass bottle; bottle volume; bottle shape or bottle picture?
