330ml 12oz Carbonated Beverage Beer Can Filling Line

Beer can fillng line is mainly used for rinsing, filling and capping of cans such as tinplate, aluminum alloy and PET plastic. It has the functions of automatic lifting, automatic turning over, automatic flushing, filling and capping of stacks of empty cans, and large production capacity, which is an ideal equipment for producing beer and carbonated beverages.
  • PESTOPACK

  • One Year and Life-Long Technical Support

  • Engineers Available to Service Overseas

  • Beer, carbonated drinks, soft drinks

  • Liquid

  • Full Automatic

  • 2000-18000 bottles per hour

  • Pop-top cans

  • PLC+Touch screen

  • SUS304

  • Washing Filling Sealing-Labeling-Packing

  • Siemens/Schneider/Mitsubishi/AirTac/Delta/Can customized

Availability:
Quantity:

Product Description

PESTOPACK-Banner1



























FINAL PRODUCT


Beer can filling line-final product


Beer Can Filling Line

Can Volume: 150~750 ml
Filling Temperature: 0~2°C
CO2: 2~5 g/L
Production Capacity: Up to 18000 cans/h (330ml/12oz)



PRODUCT DESCRIPTION

Beer can filling line-machine picture

Beer can filling line-details1
Beer can filling line-details2
Beer can filling line-details3

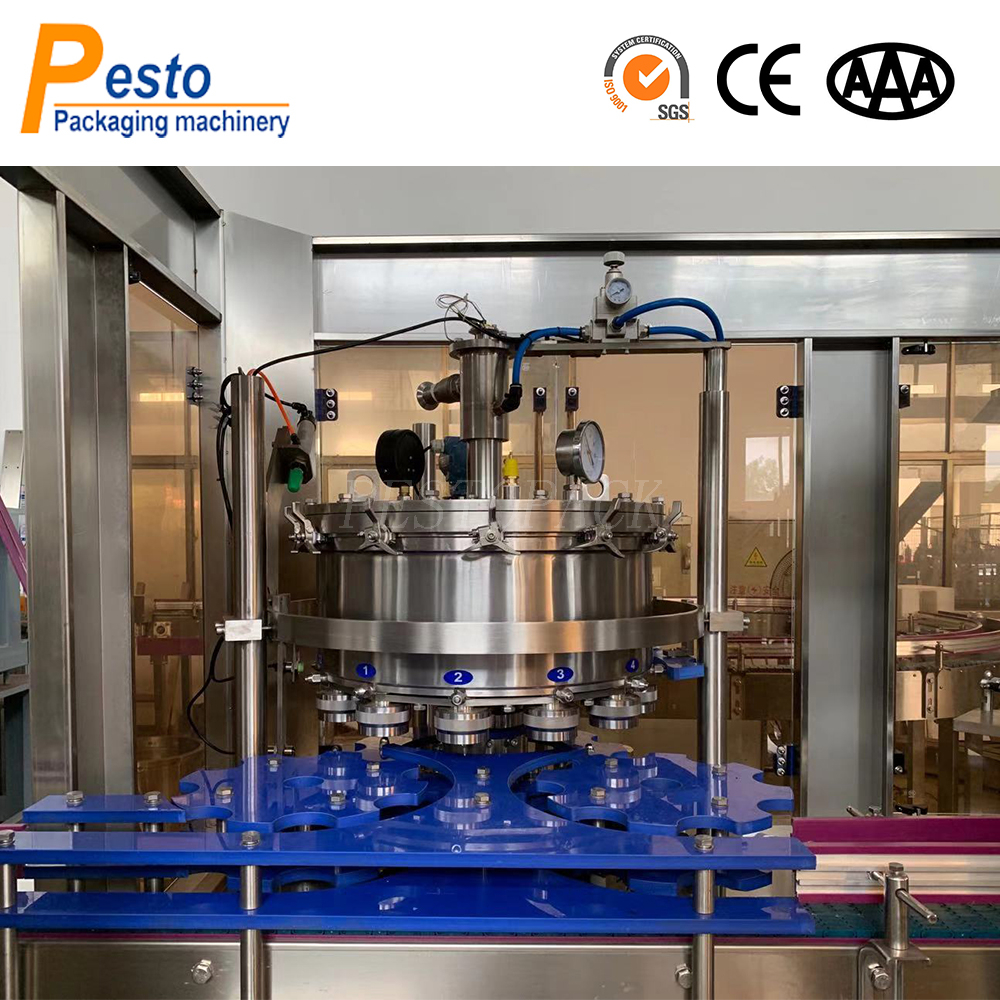

This beer can filling machine equipped with isobaric filler nozzles,  designed for filling and seaming of aluminium cans. Seamers are suitable to seam a wide range of round containers filled with soft drinks, beer and carbonated soft drinks. Beer can filler and seamer are mechanically synchronized, with only one drive, which can smoothly drive the filled containers to the seamer without spillage.



FEATURES


1. The beer can filling line adopts special filling valve, high power vacuum pump, low vacuum filling principle, filling against the bottle wall, no choking, no froth, to ensure the consistency of the liquid level after filling.

2. The bottle mouth is sealed when filling, the liquid flows down along the bottle wall, and the bottle with defective bottle is not filled automatically, which effectively controls the foam caused by the liquid impact when filling, prevents the liquid from overflowing, does not spill liquid, does not break the bottle, and the bottle height error is automatically adapted.

3. Filling system: The beer canning machine includes filling valve (exhaust valve), filling cylinder, liquid level control device, cylinder for lifting the filling valve, filling cylinder height adjustment device, etc.

4. Transmission system: The power of this beer can filling line comes from the capping machine, and after changing the speed ratio by the first-level chain wheel transmission, it is passed to the reducer, and the gear on the output shaft of the reducer drives the filling cylinder and related parts.

5. Can feeding system: The inlet conveyor belt of this can filling machine is self-assigned, and the outlet conveyor belt is assigned by the capping machine. The can feeding system includes can feeding screw, can stopping device, can feeding star wheel and various stopper parts.

6. Control system: The system is installed on the peripheral support of the beer can filling machine circumference, and various devices to control the opening of the filling valve.

7. The beer can filling line is applicable for beer, carbonated drinks, soft drinks, soda water in pop-top cans.


TECHNICAL PARAMETERS


Product filling
Product filling: beverages containing CO2, beer,
Volumes
150 ml- 750 ml
Packaging
Aluminium cans
Speed
2000-18000 cans per hour
Power supply
3P 380V/50Hz
Power
2.2-7.55KW


CAN FILLING LINE LAYOUT


Can filling line layout

AUXILIARY EQUIPMENT




Company Profile

PESTOPACK is an innovative and dynamic company in the design, manufacturing, maintenance and optimisation of pure water filling machine, beverage juice filling machine, carbonated drinks csd filling machine, beer filling machine, oil filling machine, sauce filling machine, household products filling machine, capping machine, labeling machine. We are specialized in liquid filling machinery and packing machinery field over 12 years.

In order to meet the demand for systems that fit seamlessly into existing operations, we have developed a range of packaging equipment that is unmatched in reliability, efficiency and cost effectiveness. And, because we understand that every line has its own unique requirements, each of our machines is customized to the individual needs of our customers.

We place our clients first and custom best solution for them until they are satisfied.




After Sales Service

Installation

We can dispatch our expert technicans to install beer can filling line. Service charge includes installation fee, travel expenses and meals.


Training

For getting the best beer can filling line performance, we offer on-site or at your factory training to dealers, machine operators, engineers and technicians.


Warranty

Provide efficient service, one year quality guarantee period, parts supply and quick feedback troubleshooting when beer can filling line maintenance.


Consulting

We provide free consulting. Professional sales will give you the most suitable solution. CAD drawing design of beer can filling line will be provided.


Technical Support

Offer 24/7 long life technical support. Just mail or give us a call, we will give quick feedback ASAP. Let you be free of worries.


Spare Parts

We will provide a set of spare parts in beer filling line for free when shipping. Full-series quality parts can be ordered at any time with very reasonable price.

FAQ

What type of machinery you supply?

We produce and sell packing machines like water treatment system, beverage processing machine, water filling machines, bottled water filling machines, pure water filling line, mineral water making machine, water production line, juice production line, juice filling machine, juice filling machine, CSD filling machine, carbonated drinks filling line, beer filling machine, oil filling machine, detergent filling machine etc. If you want to start with small business, we have small beer bottling machine with attactive price.


How can I be sure the machine will absolutely work for my product?

We will test and run the bottled water or beer filling machine with your bottle once machine completes and send you test run video to prove the machine works well and stable.


Will you send technical staff to help me with installation and operation training?

Yes, we have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.


How many years warranty of machine?

One-year warranty from the date of installation, during which if any parts fault in water filling machine or beer can filling machine, we will courier to your replacing parts with replacing instructions.


When can I expect my email or questions to be replied?

Our working time is 9:00am--18:00pm Monday--Saturday, any email shall be replied within 24 hours normally. For an enquiry for beer can filling line, the most recommended way of contact is by email, by sending your final product&photos to our email,due to our possible time difference.


We need basic information from you before providing suitable proposal.

What kind of products will you want to produce: water, juice, with gas or others?

Need single filling machine or the whole production line?

What is production capacity you expect, that means how many bottles per hour?

Bottle details : pet bottle or glass bottle; bottle volume; bottle shape or bottle picture?
