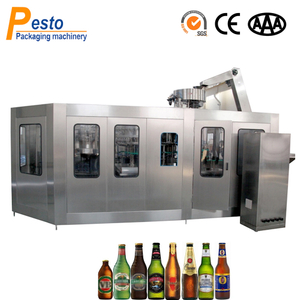

18000BPH Automatic Glass Bottle Beer Filling Line

Glass bottle beer filling line is specially used for equal pressure glass beer filling. Filling adopts suction technology, which has the function of automatically closing the bottle valve and flushing broken glass, and shock with hot water before opening the stopper.
  • PESTOPACK
  • One Year and Life-Long Technical Support
  • Engineers Available to Service Overseas
  • Cocktail, Beer, Wine, Vodka
  • Liquid
  • Full Automatic
  • 2000-18000 bottles per hour
  • Glass bottle
  • PLC+Touch screen
  • SUS304
  • Washing Filling Sealing-Labeling-Packing
  • Siemens/Schneider/Mitsubishi/AirTac/Delta/Can customized
Availability:
Quantity:

Product Description

PESTOPACK-Banner1





























FINAL PRODUCT


Glass bottle beer filling line-final product

Glass Bottle Beer Filling Line

Bottle Material: Glass Bottle

Cap: Metal Crown Cap

Bottle Volume: 100-2500ml

Production Speed: 2000-18000bph

Suitable Bottle: Height 170-320mm, Diameter 50-100mm



PRODUCT DESCRIPTION

Glass bottle beer filling line-machine

The glass bottle beer filling line is the latest design of the beer filling machine 3 in 1 type. It adopts external filling valves, all filling valves were hung on outside of the beer tank which has no contact with the beer inside. The can guarantee the beer won't have any bacteria infection risk. More stable and reliable than original design.


FEATURES


1. The rinsing machine using high-strength stainless steel bottles of spring-loaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plum-like structure can wash every corner of the sidewall and bottom to make the bottle clean.

2. Beer filling machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.

3. Using high-precision mechanical filling valve, with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time.

4. Stainless steel plunger and mechanical stirring gland-type magnetic reasonable cap to ensure that the gland is healthy and reliable. Hopper and the cap taking- cover, capping transmitted by magnetic. The capping is reliable and automatic unloading, reducing the rate of broken bottles.

5. Before the capping, use hot water bubble set to displace bottlenecks air, ensuring the oxygen content of less than 0.15mg / L.

6. Beer Filling machine includes broken bottle automatically stopping valve, broken bottle washing, and foam automatically exhausting device.

7. With perfect CIP cleaning function, and capable of rinsing filling pipes with acid, lye liquid and hot water.

8. All the materials in contact with the valves, tanks, pipes are made of stainless steel 304 materials, inside and outside the wall of mirror-polished, ensuring it is healthy.

9. Manually dry oil lubrication system to make sure equipment maintenance is more convenient.

10. The whole operation adopts advanced man-machine interface, PLC control, frequency conversion stepless speed regulation and other automatic control technology, with no bottle no open valves, no stamps; no cap no operation, and other security protection.


DETIAL PICTURES


Glass bottle beer filling line-details


TECHNICAL PARAMETERS


Model PTBGF 16-12-6 PTPGF 18-18-6 PTPGF 24-24-8 PTPGF 32-32-10 PTPGF 40-40-12
PTPGF 50-50-15
Washing heads 16 18 24 32 40 50
Filling heads 12 18 24 32 40 50
Capping heads 6 6 8 10 12 15
Capacity(BPH) 2000 4000 6000 10000
15000 18000
Power(KW) 3.5 4 4.8 7.6 8.3 9.6
Dimension(mm) 2200x1600x2400 2450x1900x2400 2750x2250x2400 4000x2300x2400 4550x2650x2400 5450x3210x2400

PROJECT CASES


Glass bottle beer filling line-Project cases


AUXILIARY EQUIPMENT



Company Profile

PESTOPACK is an innovative and dynamic company in the design, manufacturing, maintenance and optimisation of pure water filling machine, beverage juice filling machine, carbonated drinks csd filling machine, beer filling machine, oil filling machine, sauce filling machine, household products filling machine, capping machine, labeling machine. We are specialized in liquid filling machinery and packing machinery field over 12 years.

In order to meet the demand for systems that fit seamlessly into existing operations, we have developed a range of packaging equipment that is unmatched in reliability, efficiency and cost effectiveness. And, because we understand that every line has its own unique requirements, each of our machines is customized to the individual needs of our customers.

We place our clients first and custom best solution for them until they are satisfied.


PESTOPACK Machinery-company profile(1)




After Sales Service

Installation

We can dispatch our expert technicans to install beer filling line. Service charge includes installation fee, travel expenses and meals.


Training

For getting the best glass bottle beer filling line performance, we offer on-site or at your factory training to dealers, machine operators, engineers and technicians.


Warranty

Provide efficient service, one year quality guarantee period, parts supply and quick feedback troubleshooting when glass bottle beer filling line maintenance.


Consulting

We provide free consulting. Professional sales will give you the most suitable solution. CAD drawing design of beer filling line will be provided.


Technical Support

Offer 24/7 long life technical support. Just mail or give us a call, we will give quick feedback ASAP. Let you be free of worries.


Spare Parts

We will provide a set of spare parts in beer filling line for free when shipping. Full-series quality parts can be ordered at any time with very reasonable price.

FAQ

What type of machinery you supply?

We produce and sell packing machines like water treatment system, beverage processing machine, water filling machines, bottled water filling machines, pure water filling line, mineral water making machine, water production line, juice production line, juice filling machine, juice filling machine, CSD filling machine, carbonated drinks filling line, beer filling machine, oil filling machine, detergent filling machine etc.


How can I be sure the machine will absolutely work for my product?

We will test and run the bottled water or beer filling line with your bottle once machine completes and send you test run video to prove the machine works well and stable.


Will you send technical staff to help me with installation and operation training?

Yes, we have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.


How many years warranty of machine?

One-year warranty from the date of installation, during which if any parts fault in water filling machine or beer filling machine, we will courier to your replacing parts with replacing instructions.


When can I expect my email or questions to be replied?

Our working time is 9:00am--18:00pm Monday--Saturday, any email shall be replied within 24 hours normally. For an enquiry for glass bottle beer filling line, the most recommended way of contact is by email, by sending your final product&photos to our email,due to our possible time difference.


We need basic information from you before providing suitable proposal.

What kind of products will you want to produce: water, juice, with gas or others?

Need single filling machine or the whole production line?

What is production capacity you expect, that means how many bottles per hour?

Bottle details : pet bottle or glass bottle; bottle volume; bottle shape or bottle picture?
