5 Gallon Purified Water Filling Machine 900BPH

The 5 gallon purified water filling machine is used for 3 gallon & 5 gallon water filling, which is composed of washer, filling and capper.
  • QGF-900

  • PESTOPACK

  • One Year and Life-Long Technical Support

  • Engineers Available to Service Overseas

  • 1 gallon 3 gallon 5 gallon 19 liter 20 liter

  • Liquid

  • Full Automatic

  • 900 barrels per hour

  • Barrel

  • PLC+Touch screen

  • SUS304

  • Water purify-Bottle blowing-Washing Filling Sealing-Labeling-Packing

  • Siemens/Schneider/Mitsubishi/AirTac/Delta/Can customized

Availability:
Quantity:

Product Description

PESTOPACK-Banner1

VIDEO OF 5 GALLON PURIFIED WATER FILLING MACHINE

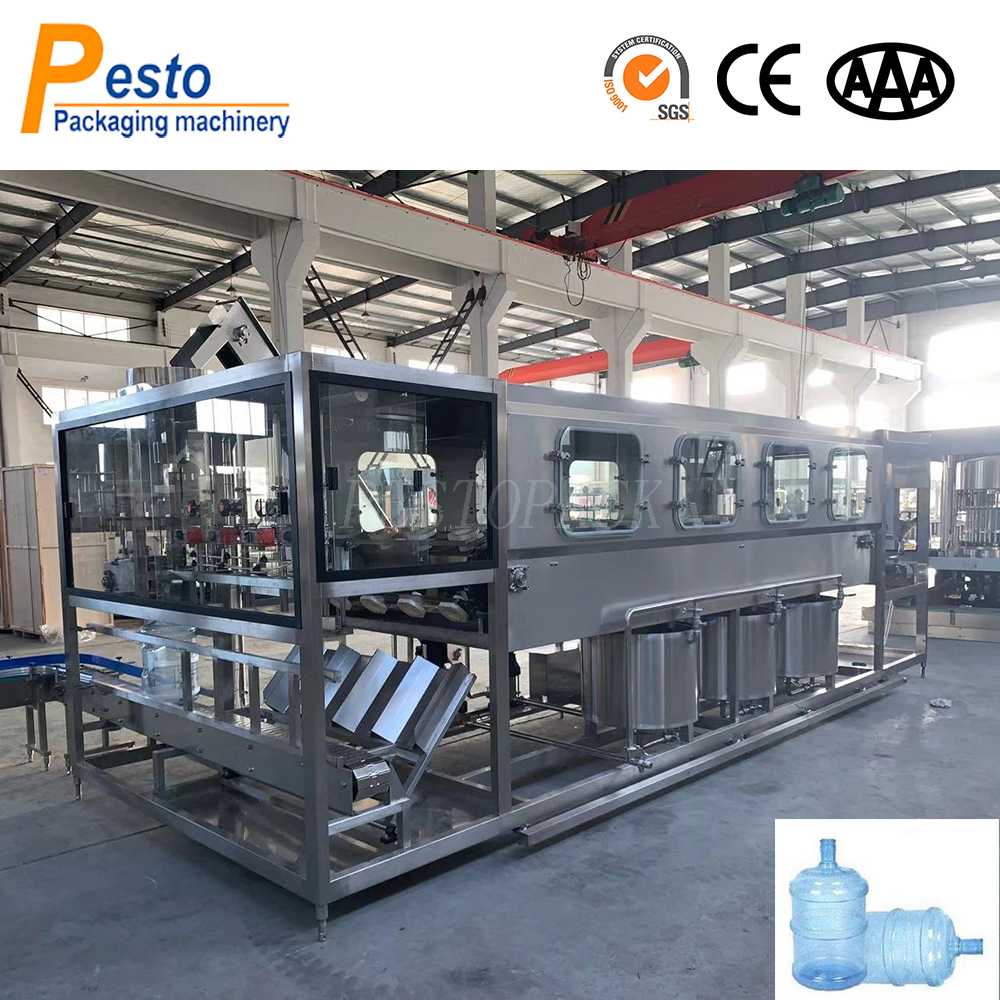

5 GALLON PURIFIED WATER FILLING MACHINE PICTURE


5 gallon purified water filling machine


1. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
2. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
3. PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
4. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
5. frame and body of 5 gallon water filling machine: all 304 Stainless Steel, combine with clear fiber glass windows Automatic 5 gallon bottle washing machine



FEATURES OF 5 GALLON PURIFIED WATER FILLING MACHINE


The 5 gallon purified water filling machine integrates rinser, filler and capper together.

The 5 gallon purified water bottling machine is of stainless steel, resisting corrosion and easy to clean.

The main electrical components and gas circuit elements are all of international brand.

Water pump is Nanfang, Hangzhou (Grundfos is available)


TECHNICAL PARAMETERS


Type QGF-900
Filling nozzle 6
Filling capacity 18.9L
Barrel size 270*490mm
Production capacity
900BPH
Air source
0.6Mpa
Air consumption 1M3/min
Motor power
9.75KW
Rated voltage 380V/50HZ
Weight 3500kg


DETAILS OF 5 GALLON PURIFIED WATER FILLING MACHINE


5 gallon purified water filling machine

5 Gallon Water Bottle Filling Machine5 gallon purified water filling machine

Cap Decapper

This model automatic decapper is special equipment for 5-gallon retrieving barrel. It does not damage caps.
This 5 gallon purified water filling machine adopts computer control and its capacity can be adjusted. Cap pulling organism from AIRTAC adopt pneumatic adjustment, which solves the problems of tolerance of barrel height and tolerance of barrel's mouth, and increases cap pulling success greatly. 304 stainless machine frame and machine body.

Outer Brusher

Function: clean the external of 5 gallon bottles with brush and water
1. Rotary style to wash the bottle body.
2. Material of machine frame and body: all 304 Stainless Steel.
3. All 304 stainless steel pipeline , valve and connector, fine polish, no death corner
4. Linear washing style with ø350brush 1pc ø200 brush 3pcs 300*3 brush 20pcs
5. Water pump: with 304 stainless steel pump
6. Washing tank: size 500*300*600*1.2, 304 stainless steel
7. No bottles, no washing


AUXILIARY EQUIPMENTS


Water treatment, gallon bottle blowing machine, automatic de-capper, bottle washer, 5 gallon water bottle filling machine, shrink labeling machine are necessary for 5 gallon water filling line.


5 gallon purified water filling machine
