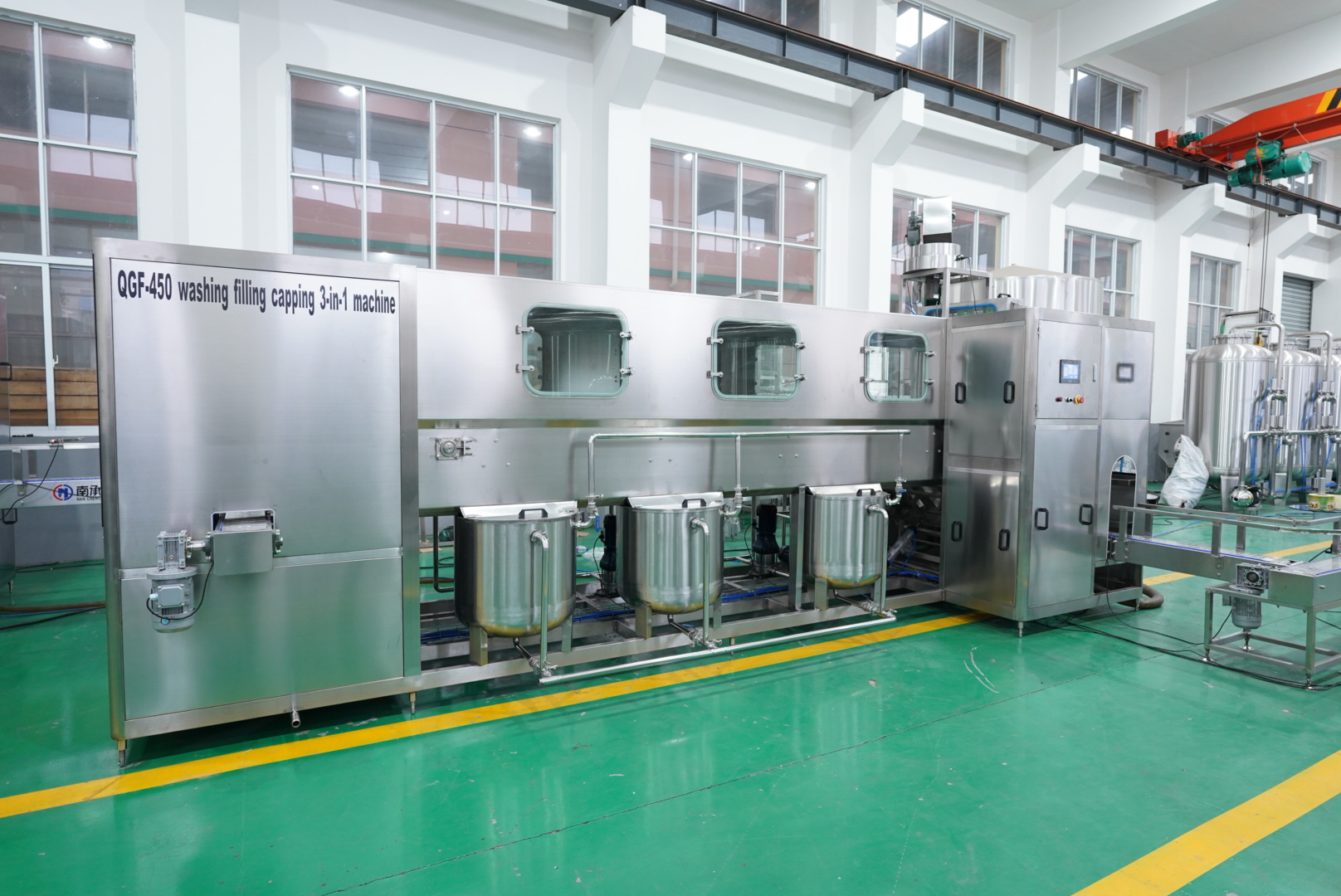

Automatic 5 Gallon Water Filling Machine 450BPH

The automatic 5 gallon water filling machine specially produces 3&5 gallons barreled drinking water. This series barreled filling production line integrates bottle washer, filler and sealer into one unit.
  • 5 Gallon Water Filling Machine

  • PESTOPACK

  • One Year and Life-Long Technical Support

  • Engineers Available to Service Overseas

  • 1 gallon 3 gallon 5 gallon 19 liter 20 liter

  • Liquid

  • Full Automatic

  • 450 barrels per hour

  • Barrel

  • PLC+Touch screen

  • SUS304

  • Water purify-Bottle blowing-Washing Filling Sealing-Labeling-Packing

  • Siemens/Schneider/Mitsubishi/AirTac/Delta/Can customized

Availability:
Quantity:

Product Description

PESTOPACK-Banner1

VIDEO OF 5 GALLON WATER FILLING MACHINE



DESCRIPTION OF 5 GALLON WATER FILLING MACHINE

5 gallon water filling machine


This 5 gallon water filling machine is specially for 3 gallons and 5 gallons barreled drinking water. It integrates bottle washing,filling and capping into one unit. It is specialized in pulling cap for recycle barrel and raise working efficiency. The 5 gallon water filling machine is made of high quality SUS304 stainless steel corrosion resistance and easy to clear. In order to achieve the purpose of washing and sterilizing.The washing machine use multi-washing liquid spray and-thimerosal spray.This thimerosal can be used circularly.The capping machine can cap barrel automatically.This 5 gallon water filling machine equips with water spraying device in order to ensure those caps sterile and clean. It also can automatically carry out barrel,washing,sterilizing,filling,capping,counting and products discharge,with complete function,modern design and high degree of automation. It is a new kind of barreled water auto-producing line,which integrates mechanism,electricity and pneumatics technologies together.


FEATURES OF 5 GALLON WATER BOTTLE FILLING MACHINE


✅ Material of the 5 gallon water bottling machine: The frame, sealing plate and water tank of the machine are all made of 304 stainless steel.

✅ Conveying Parts: The Rising conveyor is driven by a motor, which can accurately convey the bucket, which is easy to control, and the bucket falls more smoothly after the washing is completed.

✅ Bearing: The bearing is upgraded with SUS304 stainless steel, which is more sanitary, corrosion resistant and has a longer life.This kind of bearing is easy to install, may work in the harsh environment.

✅ Washing Parts in 5 gallon water filling machine: High pressure AISI304 washing nozzle, no washing dead corner, to make sure better washing effect and improve product quality.

✅ Filling Parts in 5 gallon water filling machine: The filling part is upgraded to use non-contact filling, fast filling, precise control of the liquid level, without wasting a drop of water.

✅ Capping Parts in 5 gallon water filling machine: Automatic put cap onto bottle mouth, and use pneumatic cylinder to press cap tight. It’s energy-saving and low noise.

✅ Electrical Control System: It is made up of PLC, relay, intermediate relay, sensor and other components. Each action time of the whole line can be setting dependently on the man-machine interface.



TECHNICAL PARAMETERS



Model QGF-450
Filling nozzle
3
Filling capacity
18.9L/5gallon
Barrel size 270*490mm
Production capacity 450BPH
Air source 0.4-0.6Mpa
Air consumption 0.8m3/min
Motor power 3.8KW
Rated voltage 380V/50HZ
Remark Please contact us for customized solution


DETAILS OF 5 GALLON WATER BOTTLE FILLING MACHINE


A. Decapper of 5 gallon water filling machine

This cap remover is specifically crafted for use in 3 and 5-gallon water bottling line. Its primary function involves extracting the cap from recyclable bottles before the rinsing process commences. Utilizing a combination of digital camera and fiber optic detection, it identifies and rejects bottles that fall into various categories: those lacking caps, caps without stoppers, caps with partial openings, or bottles without caps being removed.

B. External and Internal Brusher of 5 gallon water filling machine

Empty barrels are conveyed in via a transfer chain, guided by the barrel-insertion wheel into the workstation. There, a central high-pressure washing initiates, followed by brushing at four separate stations, ensuring a comprehensive cleansing of both the interior and exterior of the barrel. At the barrel's exit, a rinsing spray with clean water ensures a thorough external cleansing of the barrel.

The high-pressure internal washing machine is a specialized cleaning equipment designed for both the interior and exterior surfaces of 18.9-liter water barrels. This equipment boasts innovative and unique design, integrating machinery, electricity, and pneumatics. It operates autonomously without the need for manual intervention, offering high levels of automation. It can be customized according to manufacturers' requirements and efficiently cleans both the inner and outer walls of the barrels. This high efficiency makes it an ideal complementary equipment for automatic filling machines.

The internal washing utilizes a 360° rotating high-pressure nozzle for thorough cleaning without any blind spots, resolving previous issues of shedding within the barrel. It boasts high automation, simple operation, and easy maintenance. Constructed entirely of stainless steel, it can be customized according to manufacturers' requirements, serving as complementary equipment for automatic filling machines.

C. Filler and sealer of 5 gallon water filling machine

The nozzle's insertion depth ranges from 10-15cm, facilitating the rinsing out of minute impurities within the container. Individual control of flushing pumps via distinct solenoid valves ensures operation solely when a barrel is detected, preventing the mixing of different cleaning solutions.


5 gallon water bottle filling machine-Decapper

De-capper

5 gallon water bottle filling machine-Brusher

Brusher

5 gallon water bottle filling machine-washer

Washer

5 gallon water bottle filling machine-filler

Filler


AUXILIARY EQUIPMENTS FOR 5 GALLON WATER FILLING MACHINE


Water treatment, gallon bottle blowing machine, automatic de-capper, bottle washer, shrink labeling machine are necessary for gallon water bottling line.


5 gallon water filling machine-water treatment

WATER TREATEMENT

5 gallon water filling machine-blower

BLOWING MACHINE

5 gallon water filling machine-top shrink

TOP SHRINKING MACHINE

5 gallon water filling machine-Automatic Bagging Machine

BAGGING MACHINE



OTHER MACHINES YOU MAY INTERESTED


Besides automatic gallon water bottling machine, we also have kinds of different water filling lines for water and beverage. Like automatic water filling machine, carbonated drinks filling line, beer bottling equipment, juice filling line, carbonated drink filling machine ect.




Gallon Water Production Line


INTEGRATE A COMPLETE 5 GALLON WATER PRODUCTION LINE


3-5Gallon Water Filling Line生产线图含logo


Petsopack specializes in integrating complete 5-gallon water production lines, offering a comprehensive solution that encompasses various stages and machinery to facilitate the production of high-quality bottled water efficiently.


Consultation and Design

Petsopack initiates the process by understanding the client's requirements and production needs. We offer consultation services to design a tailored 5-gallon water filling line that meets specific capacity, quality, and automation requirements.


Water Treatment System Integration

We include water treatment systems within the line, incorporating purification processes like filtration, reverse osmosis, UV sterilization, and ozonation to ensure the water meets quality standards.


Bottle Production

If required, We can include bottle blowing machines to produce PET bottles from preforms, ensuring seamless integration from bottle creation to the final product.


Filling Line Components Integration

Petsopack integrates various crucial components into the 5 gallon barrel filling machines including decapper, brusher, filling, sealing, labeling, packing and palletizing.


Automation and Control Systems

We ensure that the entire 5 gallon water bottling line operates seamlessly with integrated control systems, enabling automation, monitoring, and adjustments for optimal efficiency and quality control.


Testing and Commissioning

Before handover, Petsopack conducts thorough testing and commissioning of the integrated line to ensure its functionality, reliability, and compliance with quality standards.


Training and Support

After installation, we provide training to the client's staff and ongoing support to ensure smooth operation and maintenance of the integrated 5 gallon water bottling line.


Raw Material Supply

Petsopack offers comprehensive raw material supply solutions tailored for 5-gallon water bottling lines like PET Preforms, Bottle Caps and Seals, Labeling Materials, Packaging Materials.


Our expertise lies in providing end-to-end solutions, from initial consultation to the delivery of a fully functional and efficient 5-gallon water filling line, meeting industry standards and client-specific requirements.
