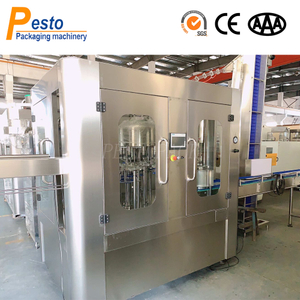

Small Scale Juice Beverage Bottling Equipment

The beveage bottling equipment is mainly used for washing filling capping PET bottle juice, tea drinks and all kinds of energy drink for hot filling. Only need to change a few spare parts, that can suitable for filling juice, beverage and water.

  • Beverage bottling equipment
  • PESTOPACK
  • One Year and Life-Long Technical Support
  • Engineers Available to Service Overseas
  • Beverage, fruit juice, tea, water and other non-carbonated drinks
  • Liquid
  • Full Automatic
  • 3000-28000 bottles per hour
  • PET bottles 200-2000ml
  • PLC+Touch screen
  • SUS304
  • Water purify-Beverage Processing-Bottle blowing-Washing Filling Sealing-Labeling-Packing
  • Siemens/Schneider/Mitsubishi/AirTac/Delta/Can customized
Availability:
Quantity:

Product Description

PESTOPACK-Banner1


HOW BEVERAGE BOTTLING EQUIPMENT WORKS


beverage bottling equipment-picture


This beverage bottling equipment is used for hot filling production of beverage, tea drinks, fruit juice drinks and other products. The beverage bottling equipment is a combination of rinsing, filling and sealing. the design is scientific and reasonable, so operate is simple. The beverage bottling equipment is the preferred equipment for hot-filling drinks. The filling temperature of this machine is 55-95℃ hot filling, It adopts suspension air conveyor. When change the bottle,It only needs to adjust the conveying width, which is more efficient and labor-saving. Filling action is smooth, fast, high precision, reliable sealing, low material loss and other functions, avoid secondary pollution of materials effectively. The beverage filling machine adopts advanced technologies such as human-machine interface touch control system, PLC computer control, frequency converter control, etc. It has high degree of automation and easy operation.

The beverage bottling equipment has these systems as below:

1. Rinsing system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing
pump.
2. Filling system: Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder.
3. Capping system: Combined with capper, cap sorter and cap falling track.
4. Driving system: Combined with main motor and gears.
5. Bottle transmitting system: Combined with air conveyor, steel starwheels and neck supporting carrier plates.
6. Electrical controlling system: this part is frequency inverted, PLC controlled and touch screen operated.


beverage bottling equipment-air conveyor

Air conveyor

beverage bottling equipment-Rinsing part(1)

Rinsing part

beverage bottling equipment-Filling part(1)

Filling part

beverage bottling equipment-Capping part(1)

Capping part


TECHNICAL PARAMETERS


Model PTRGF
14-12-5
PTRGF
18-18-6
PTRGF
24-24-6
PTRGF
32-32-8
PTRGF
40-40-10
PTRGF
50-50-12
PTRGF
60-60-15
PTRGF
72-72-18
Rinsing heads 14 18 24 32 40 50 60 72
Filing heads 12 18 24 32 40 50 60 72
Capping heads 5 6 6 8 10 12 15 18
Capacity
(b/h)
3000 5000 8000 12000 15000 18000 22000 28000
Power
(KW)
2.2 3.5 4.5 6 7.5 9.5 11.2 15
Dimension(mm) 2300*1650*2500 2600*1920*2550 3100*2100*2800 3500*3000*2850 4850*3800*2750 5750*3550*2750 6500*5500*2750 6800*5800*2850
Weight
(kg)
2600 3650 4800 6800 8500 10000 12000 15000



PROJECT OF BEVERAGE BOTTLING EQUIPMENT


beverage bottling equipment-project picture(1)


AUXILIARY EQUIPMENTS


We can also provide turnkey complete beverage bottling equipment production line :
1. Juice preparation system ( sugar melting/dissolve , juice blending tanks, juice sterilize /pasteurizer , homogenizer,CIP)
2. Bottle blowing system make PET plastic bottles ( Semi automatic / Fully automatic )
3. Water treatment system purify water (Sand filter,carbon filter,RO/UF ,Ozone sterilizer,UV sterilizer and etc.)
4. Air conveyor for empty bottle loading
5. Rinser-filler-capper 3 in 1 monoblock beverage bottling equipment
6. Cap loader load caps
7. Code printer (Ink-jet printer/ laser-jet printer)
8. Labeling machine ( PVC sleelve labeling machine /OPP hot melt glue labeling machine/Self-adheisive labeling machine )
9. End packaging ( PE shrink wrapping machine / Carton packing machine )

beverage bottling equipment-mixing machine

beverage bottling equipment-Packing machines


RECOMMEND PRODUCTS




water bottling equipment-Automatic water filling machine-Bottled water(1)

Bottle Water Filling Machine

water bottling equipment-Automatic water filling machine-Gallon water(1)

Gallon Water Filling Machine

water bottling equipment-Automatic water filling machine-Carbonated drinks(1)

Carbonated Drinks Filling Machine




water bottling equipment-Automatic water filling machine-beer(1)

Beer Filling Machine

water bottling equipment-Automatic water filling machine-Juice(1)

Beverage Filling Machine

water bottling equipment-Automatic water filling machine-Can(1)

Can Filling Machine




Company Profile

BEVERAGE BOTTLING EQUIPMENT MANUFACTURER


PESTOPACK is an innovative and dynamic company in the design, manufacturing, maintenance and optimisation of water filling machine, beverage filling machine, carbonated drinks csd filling machine, beer filling machine, oil filling machine, sauce filling machine, household products filling machine, capping machine, labeling machine. We are specialized in liquid filling machinery and packing machinery field over 12 years.

In order to meet the demand for beverage bottling equipment that fit seamlessly into existing operations, we have developed a range of beverage bottling machine that is unmatched in reliability, efficiency and cost effectiveness. And, because we understand that every juice bottling equipment has its own unique requirements, each of our beverage filling machines is customized to the individual needs of our customers.

We place our clients first and custom best beverage bottling equipment solution for them until they are satisfied.


PESTOPACK Machinery-company profile(1)


Turnkey Solution



GET BEST BEVERAGE BOTTLING EQUIPMENT PRICE FROM PESTOPACK


PESTOPACK has invested its best resources in technical research, to design and realize innovative in bottle blowing, beverage bottling equipment, capping, labeling and packing systems which enable to respond and reach different demands and achieve new goals everyday, seizing the market's expectations in the pass years . At the same time , we also provides turnkey solution for customers, from plant layout design, bottle and label design, beverage bottling machine manufacturing, beverage bottling line setup, raw material supply, to operators training. We are always trying our best to meet the demands of our customers continuously and seeking for mutual development.



Raw material supply


Raw material supply

We can supply bottle preform, caps, label rolls with very reasonable price.

Layout-Design


Layout design

We will design and confirm the machine layout according to your factory sketch.

Bottle and label design

Bottle design

Our designers can design bottle styles according to your requirement.

Label-Design

Label design

We can provide the label design according to the bottle size and style you want.


After Service


BEVERAGE BOTTLING EQUIPMENT SUPPLIER


Installation

We can dispatch our expert technicans to install beverage bottling equipment. Service charge includes installation fee, travel expenses and meals.


Training

For getting the best beverage bottling equipment performance, we offer on-site or at your factory training to dealers, machine operators, engineers and technicians.


Warranty

Provide efficient service, one year quality guarantee period, parts supply and quick feedback troubleshooting when beverage bottling machine maintenance.


Consulting

We provide free consulting. Professional sales will give you the most suitable solution. CAD drawing design of beverage bottling equipment will be provided.


Technical Support

Offer 24/7 long life technical support. Just mail or give us a call, we will give quick feedback ASAP. Let you be free of worries.


Spare Parts

We will provide a set of spare parts in beverage bottling line when shipping. Full-series quality parts can be ordered at any time with very reasonable price.


FAQ


BEVERAGE BOTTLING EQUIPMENT FOR SALE


What type of filling machinery you supply?

We produce and sell packing machines like water treatment system, beverage processing machine, water filling machine, water production line, juice production line, beverage filling machine, juice bottling machine, CSD filling machine, carbonated drinks filling line, beer filling machine, oil filling machine, detergent filling machine etc.


How the beverage bottling equipment will work for my product?

We will test and run beverage bottling equipment with your bottle once machine completes and send you test run video to prove the machine works well and stable.


Will you send technical staff to help me with installation of beverage bottling equipment?

Yes, we have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.


How many years warranty of beverage bottling equipment?

One-year warranty from the date of installation, during which if any parts fault in beverage bottling machine, we will courier to your replacing parts with replacing instructions.


When can I expect my email or questions to be replied?

Our working time is 9:00am--18:00pm Monday--Saturday, any email shall be replied within 24 hours normally. For an enquiry for beverage bottling line, the most recommended way of contact is by email, by sending your final product&photos to our email,due to our possible time difference.


We need basic information from you about beverage bottling equipment:

What kind of products will you want to produce: juice with gas or others?

Need single beverage filling equipment or the whole juice production line?

What is production capacity you expect, that means how many bottles per hour?

Bottle details : pet bottle or glass bottle; bottle volume; bottle shape or bottle picture?
