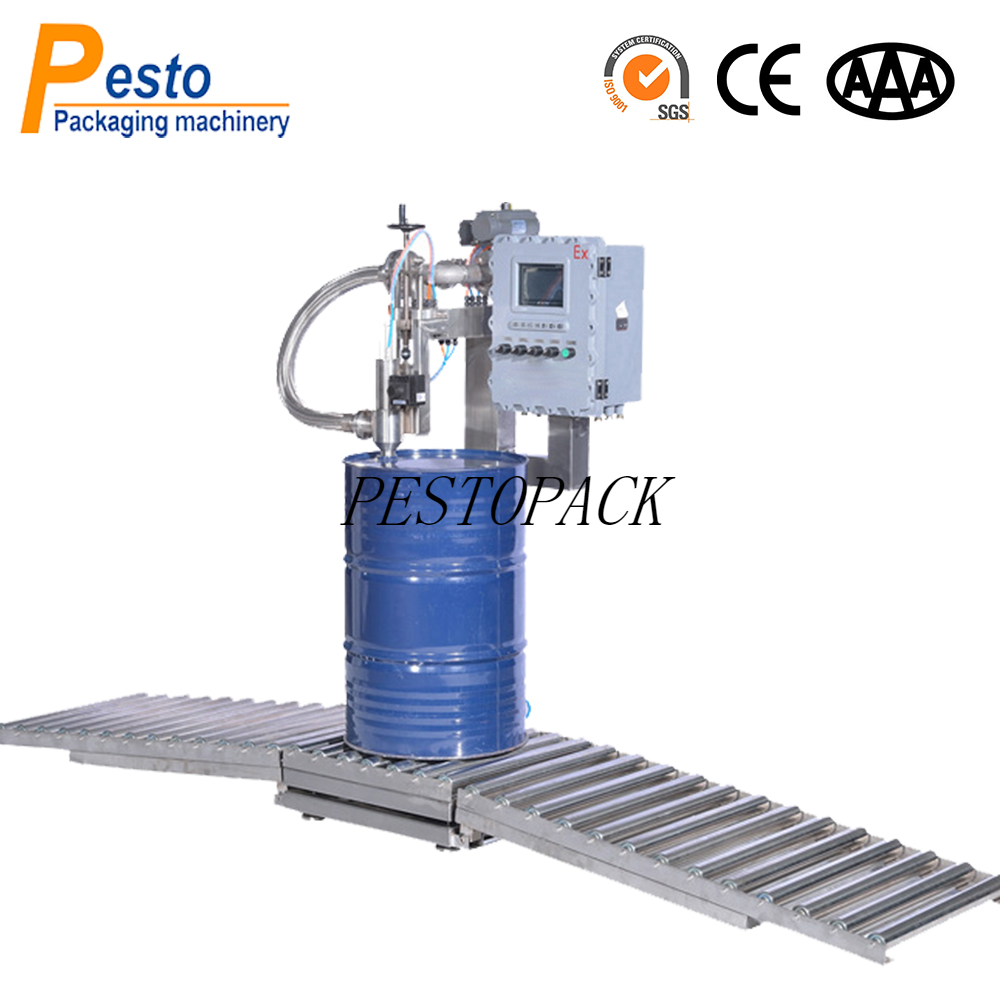

Semi Automatic Explosionproof Drum Filling System

  • Semi Auto Drum Filling System
  • PESTOPACK
  • One Year and Life-Long Technical Support
  • Engineers Available to Service Overseas
  • Chemical products, oil products, emulsion paint, latex paint, emulsion varnish, oil varnish, oil paint, coatings, solvents
  • Pail, Bucket, Drum, Jerrycan, Barrel
  • Semi Automatic
  • 120-240 barrels/hr
  • 100L 200L 300L
  • PLC+Touch screen
  • SUS304/SUS316/PTFE(optional) and Anti-explosion(optional)
  • Auto Filling and Sealing
  • Siemens/Schneider/Mitsubishi/AirTac/Delta/Can customized
Availability:
Quantity:

Product Description

PESTOPACK-Banner1




LAYOUT OF SEMI AUTOMATIC DRUM FILLING SYSTEM

Semi automatic drum filling system-layout


FEATURES OF SEMI AUTOMATIC DRUM FILLING SYSTEM


1. This semi automatic drum filling machine is specially designed for barrels of 100-300kg. The drum filling machine part adopts stainless steel frame. The whole drum filling line is manually entered into the barrel, manually aligning the barrel mouth, automatic submerged filling, and automatic measurement.

2. The electrical control part of this semi automatic drum filling system is composed of PLC programmable controller, frequency converter, etc. It has strong control ability, high degree of automation, special device, no barrel filling, no barrel mouth no filling, etc., to avoid Waste and pollution of materials.

3. Convenient function switching, net weight/gross weight, automatic/manual function switching mode.

4 Automatic tared before filling.

5. The semi automatic drum filling equipment has high filling accuracy.



WORKING PROCESS


Turn on the drum filling system---Manually put the barrel on the filling position---press the [Start] key---Filling nozzle is automatically inserted into the barrel mouth---Automatically tared---Automatically filling--- Filling nozzle automatically closes and rises to the outside of the barrel --- Manually move the barrel and sealing.



TECHNICAL PARAMETERS


◆Name: Drum filling system

◆Type: Semi automatic

◆Filling head: 1

◆Power supply: AC220V 50/60HZ 0.5KW

◆Using air source: 0.5~0.7 Mpa

◆Filling range: 100-300L

◆Filling capacity: 35-45 barrels/Hr

◆Filling accuracy: +-100g

◆Filling gun material: SUS304/SUS316/PTFE (optional)

◆Explosion-proof grade: Exd11BT4 (optional)

◆Application: Chemical products like oil, emulsion paint, latex paint, emulsion varnish, oil varnish, oil paint, coatings, solvents, inks



FUNCTION CONFIGURATION


◆Display of drum filling system: 7-inch color LCD screen, full English guide operation;

◆Intelligent efficiency: No bucket no filling, automatic peeling, automatic detection and filling;

◆Equipment filling gun: No dripping after filling;

◆Easy to operate: Fast and accurate positioning; automatically filling; the height of the filling gun can be adjusted to 150mm;

◆Function switching of the semi automatic drum filling system: net weight/gross weight, automatic/manual function switching mode;

◆Accurate and fast filling: equipped with large and small ball valves and two-stage filling, to make filling accuracy and high speed;

◆Explosion-proof protection for drum filling machine: use explosion-proof electric control box, explosion-proof grade Exd II BT4, protection grade IP67 (optional).



PESTOPACK designs and builds filling machines and packaging equipment for drums


Our drum filling system is designed to meet the changing needs of the chemical and oil industry. We manufacture the ideal machinery to handle your drum filling needs and meet your production goals. Accuracy and speed are important when filling and packing chemical products into drums. Inaccurate filling can lead to spills and drippage that may necessitate rejection and repacking. In a high-volume operation such as filling, speed and efficiency are paramount. An semi automatic drum filling system can fulfill both of these needs, offering the machine-regulated accuracy and speed required for any chemical filling facility.


Types of Drum Filling System Can Fill


Let PESTOPACK conceptualize and build a customized drum filling system for your fluid or viscous products in chemical field:

  • Paints

  • Glues

  • Sealants

  • Coatings

  • Resins

  • Inks

A leading chemical filling machine manufacturer and supplier, PESTOPACK designs and engineers filling equipment for paints and related products. Our extensive experience in handling all types of liquids — including special applications such as explosive liquids — combines with our ability to manufacture high-quality filler/cappers to make PESTOPACK a standout company in the paint and related products industry.
