BEER BOTTLING MACHINE

 Manufacturing beer bottling machines over 12 years
● Different types for cans and glass bottles
● Production capacity range 2000-18000BPH
● Maximize benefits to our customers with lower price
● Reliable quality and high efficiency for our beer bottling machines

BEER BOTTLING MACHINES & BEER CANNING MACHINES

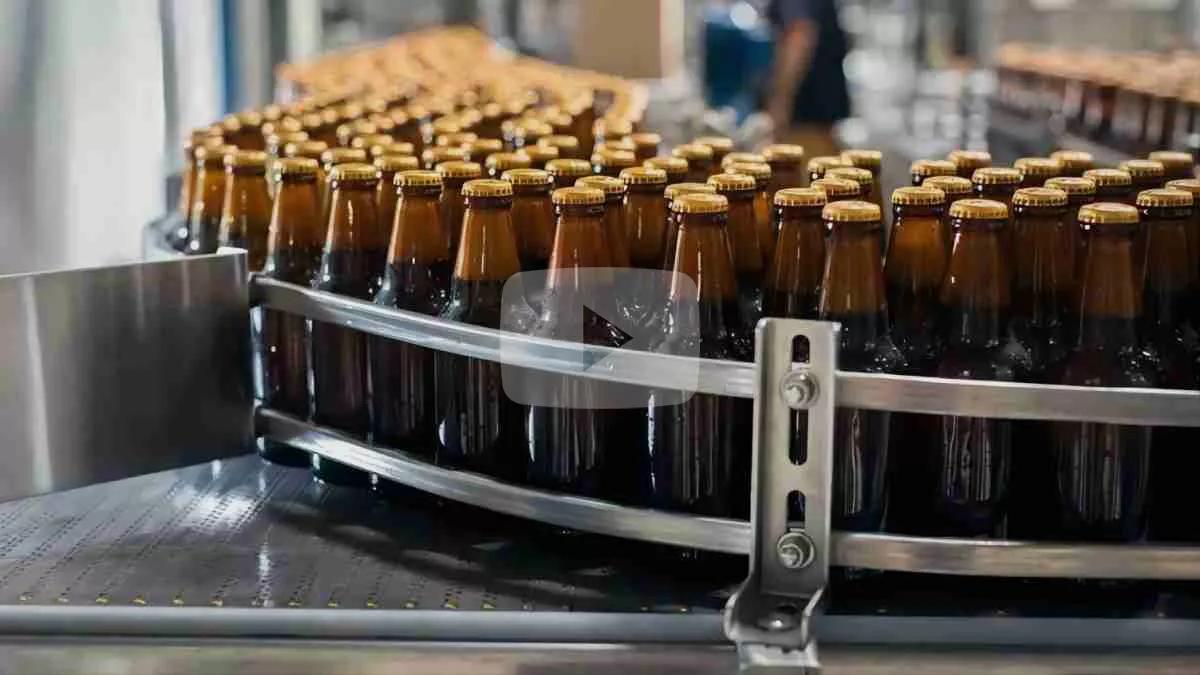

GLASS BOTTLE BEER FILLING MACHINE VIDEO

PESTOPACK provides a wide range of beer bottling machines for glass bottles. We design, manufacture and install complete systems for the treatment and filling of beer in glass bottles(from 2,000 to 18,000 bph) .These beer bottling machines also be used for bottling a wide range of sparkling and still drinks such as water, wine, cider, kombucha, soft drinks and carbonated drinks.

 TECHNICAL PARAMETERS FOR GLASS BOTTLES

PESTOPACK offers beer bottling machines with production capacity 2000BPH to 18000BPH for bigger microbreweries and medium breweries. Most operations are performed automatically. Glass bottle beer filling machine is a 3 in 1 monoblock structure with rising filling and sealing function.

Type

BGF
16-12-6

BGF
18-18-6

BGF
24-24-8

BGF
32-32-10

BGF
40-40-12

BGF
50-50-15

Rinsing heads

16

18

24

32

40

50

Filing heads

12

18

24

32

40

50

Sealing heads

6

6

8

10

12

15

Filling volume

100-2500ml

100-2500ml

100-2500ml

100-2500ml

100-2500ml

100-2500ml

Capacity

(b/h, 500ml)

2000

4000

6000

10000

15000

18000

Power (KW)

3.5

4

4.8

7.6

8.3

9.6

Dimension (mm)

2200*1600*2400

2450*1900*2400

2750*2250*2400

4000*2300*2400

4550*2650*2400

5450*3210*2400

FINAL PRODUCT

  Machine Name   Automatic beer filling machine
  Bottle Type   Glass bottles
  Volume 100-2500ml
  Bottle diameter 50-100mm
  Bottle height 170-320mm
  Production Capacity   2000-18000 bottles per hour
  Your Product  Beer, wine

DETAILS OF BEER BOTTLING MACHINE

1. This beer bottle filling machine can realize automatic washing and filling and capping in united machine. It's used for glass bottle and crown cap.
2. The filling method is the vacuumed type, it can decrease the oxygen content.

3. All filling valves are hung on outside of the beer tank which has no contact with the beer inside. The can guarantee the beer won't have any bacteria infection risk.
4. Our beer filling machine for glass bottle can vacuum twice and filled with carbon dioxide twice. This can cut the amount of oxygen dissolved and ensure the taste of beer.

BEER CANNING MACHINE VIDEO

PESTOPACK provides a wide range of automatic beer canning machines for sale. We design, manufacture and install complete systems for the treatment and filling of beer in cans (from 2,000 to 18,000 bph) .These beer bottling machines can also be used for bottling a wide range of sparkling and still drinks such as water, wine, cider, kombucha, soft drinks and carbonated drinks.

TECHNICAL PARAMETERS FOR CANS

PESTOPACK provides an extensive selection (2000BPH to 18000BPH) of beer canning machines with high quality, competitive price and best service. Our automatic can beer filling machines are designed to meet your needs and complete your production goals easily.

Type

12-1

18-4

36-6

Filing heads

12

18

36

Sealing heads

1

4

6

Filling volume

150-750ml

150-750ml

150-750ml

Capacity

(b/h, 500ml)

2000

9000

18000

Power (KW)

2.2

5

7.5

Dimension (mm)

2500*1650*1900

2900*1850*1900

3200*2300*1900

FINAL PRODUCT

  Machine Name   Automatic beer canning machine
  Bottle Type   Cans
  Volume 150-750ml
  CO2: 2~5 g/L
  Filling Temperature: 0~2°C
  Production Capacity   Up to 18000 cans/h (330ml/12oz)
  Your Product  Beer, carbonated drinks

DETAILS OF BEER CANNING MACHINE

1. The can beer filling machine machine is suitable for filling and sealing of carbonated drink beer and beverage in the industrial of pop can beverage.

2. The beer canning machine is adopts counter pressure filling technology, it is specially designed for beer filling. The beer can filling machine has the advantages of high speed, reliable output, compact design and stable operation. The machine suitable for medium or large capacity breweries.
3. We choose Siemens programmable control cabinet. The beer canning machine runs and works without errors for a long time.

COMPONENTS PARTNERS

We have deep cooperation with branded components suppliers like Panasonic, Siements, Festo, Schneider. Components brands in beer bottling machines can be customized.

Automatic beer bottling machines

for small and big breweries

  Beer bottling machines for microbreweries

Many small breweries think they cannot afford an automatic, full professional plant to pack their beer. Discover our 2000bph automatic beer filling machines: the best solution to improve the equipment of your microbrewery with a professional packaging machine that carries out the rising, filling and capping of bottles.

 Beer bottling machines for big breweries

18,000 bph automatic beer filling machines are the ideal solution for high-productivity breweries that need to pack a large number of bottles each hour. Like the other plants, they provide the complete process of rinsing, filling and capping. They are highly customizable according to the requirements of the customers.

AUXILIARY EQUIPMENT

FOR BEER BOTTLING MACHINE

To establish a complet beer bottling line, you need other machines to connect with craft beer bottling machine. Pestopack provides turnkey complete beer production line. Besides craft beer filling machine, you also need brew tank, can depalletizer, labeling machine, packing machine etc.

BEER BOTTLING MACHINE

MANUFACTURER PESTOPACK

PESTOPACK is one of manufacturers of beer bottling machines in China. We provide turnkey solutions for breweries. We sell beer bottling machines in galss bottles and in cans. All the machines are varified by CE certification. You can get the best service and price of beer bottling machine from PESTOPACK.

SERVICE PROCESS

We put our customers first. PESTOPACK provides turnkey solution, after-service support and spare parts. We help customers acheive a high-efficiency operation of beer filling machines and technical innovation and upgrade to join hands with customers for a win-win situation.

FAQ ABOUT BEER BOTTLING MACHINE

Orders

  • How to start a beer company?

    1. Plan your bottled beer business

    2. Form your beer plant business into a legal entity

    3. Get the Necessary Permits & Licenses for your beer business

    4. Define your bottle and label design

    5. Buy beer bottling machines

    6. Start bottled beer market plan


  • How are beers bottled?

    Beers are bottled with beer bottling machine. The principle of beer bottling machine is like this: send the cleaned bottles to the bottle feeding screw of the machine by the bottle conveyor belt, and sent to the turntable through the bottle feeding star wheel. The bottle supporting cylinder is raised. Under the guidance of the centering device, the bottle mouth is tightly pressed under the filling valve inlet to form a seal.

    After emptying the bottle, the gas (CO2) in the storage tank flushes into the bottle. When the air pressure in the bottle is equal to the air pressure in the storage tank, the liquid valve opens under the action of the liquid valve spring. At this time, the beer is guided by the umbrella-shaped reflection ring on the return air pipe. It will automatically fill the bottle along the bottle wall. When the beer rises to a certain height, the beer will automatically stop, this completes the filling process.
  • How much does it cost for a beer bottling machine?

    We have different production capacity beer bottling machines for small, medum, and big breweries. You will find the best suitable solution according to your requirement. Contact our service team to get the beer bottling machine price.
