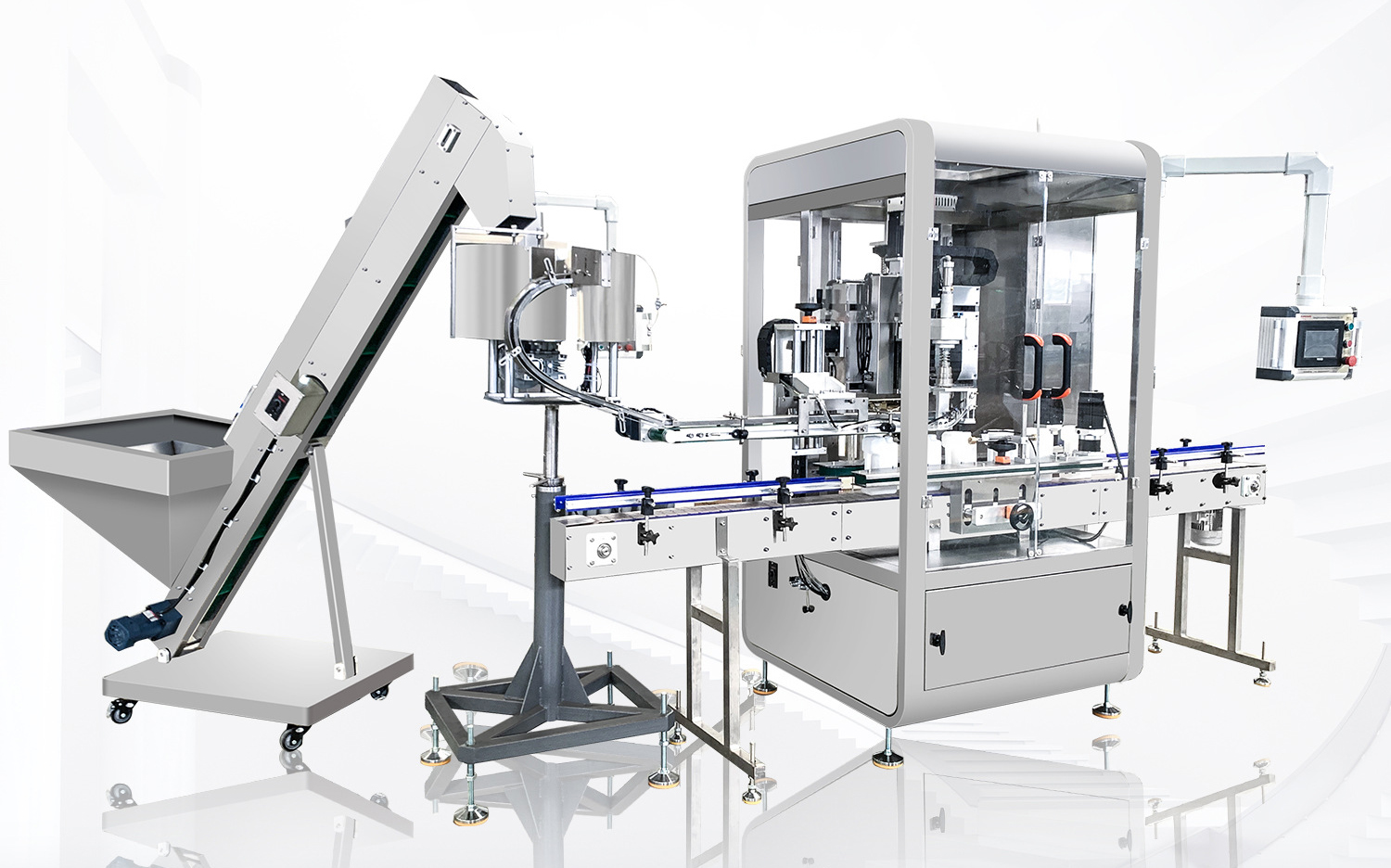

How Much Does a Lubricant Oil Filling Line Cost? Complete Price Guide

If you are planning to start or expand an engine oil, motor oil, gear oil, or industrial lubricant packaging plant, one of the first questions is usually simple:

How much does a lubricant oil filling line cost?

The short answer is that a complete lubricant oil filling line can cost anywhere from around $20,000 for a small basic system to $350,000 or more for a high-speed, fully automated packaging line.

That is a wide range. Why?

Because asking for the price of a lubricant filling line is a little like asking, “How much does a truck cost?” A small delivery truck and a fully equipped heavy-duty truck are both trucks, but their capacity, configuration, performance, and price are completely different.

The same applies to lubricant packaging equipment.

A 1,000 bottles-per-hour line filling 1L engine oil bottles has very different requirements from a 6,000 BPH line handling 1L, 4L, and 5L containers with automatic capping, induction sealing, labeling, case packing, and palletizing.

In this guide, we will break down the major cost ranges, explain what affects the price, and help you understand what type of equipment actually makes sense for your production plan.

If you are already comparing complete systems, you can also explore our lubricant oil filling line solutions for different bottle sizes, production capacities, and automation levels.

Quick Answer: How Much Does a Lubricant Oil Filling Line Cost?

For budgeting purposes, the following ranges can be used as a general reference:

These numbers should be treated as budgetary estimates rather than fixed quotations.

The final price depends heavily on what is actually included.

For example, does the quotation include only a filling machine?

Or does it include:

• bottle feeding

• filling

• capping

• induction sealing

• labeling

• coding

• conveyors

• carton packing

• case sealing(semi automatic or full automatic)

• palletizing(semi automatic or full automatic)

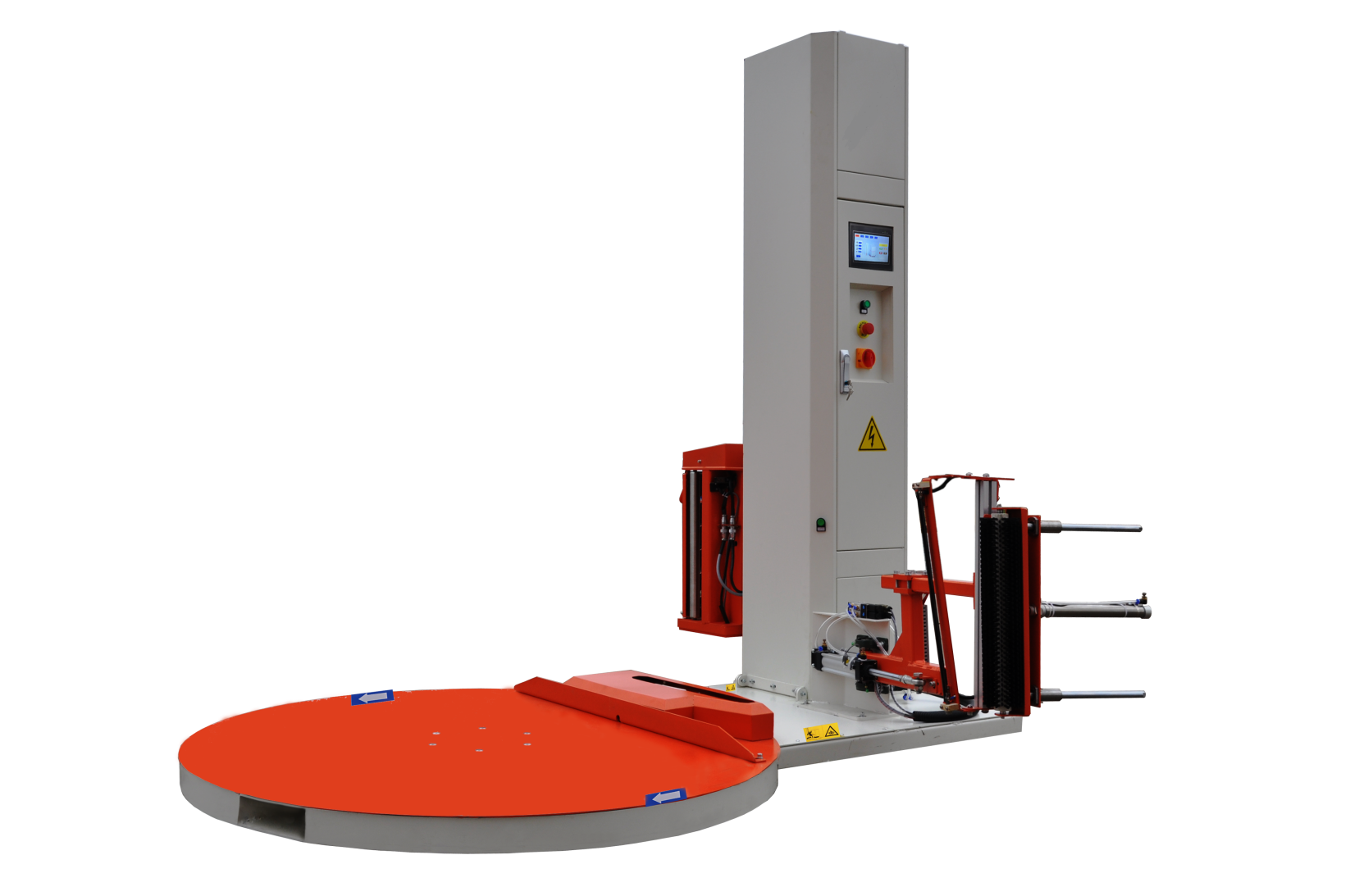

• pallet wrapping(semi automatic or full automatic)

Two suppliers may both quote a “3,000 BPH lubricant oil filling line,” yet one quotation can be twice the price of the other because the equipment scope is completely different.

That is why you should never compare lubricant filling line prices by looking only at the final number.

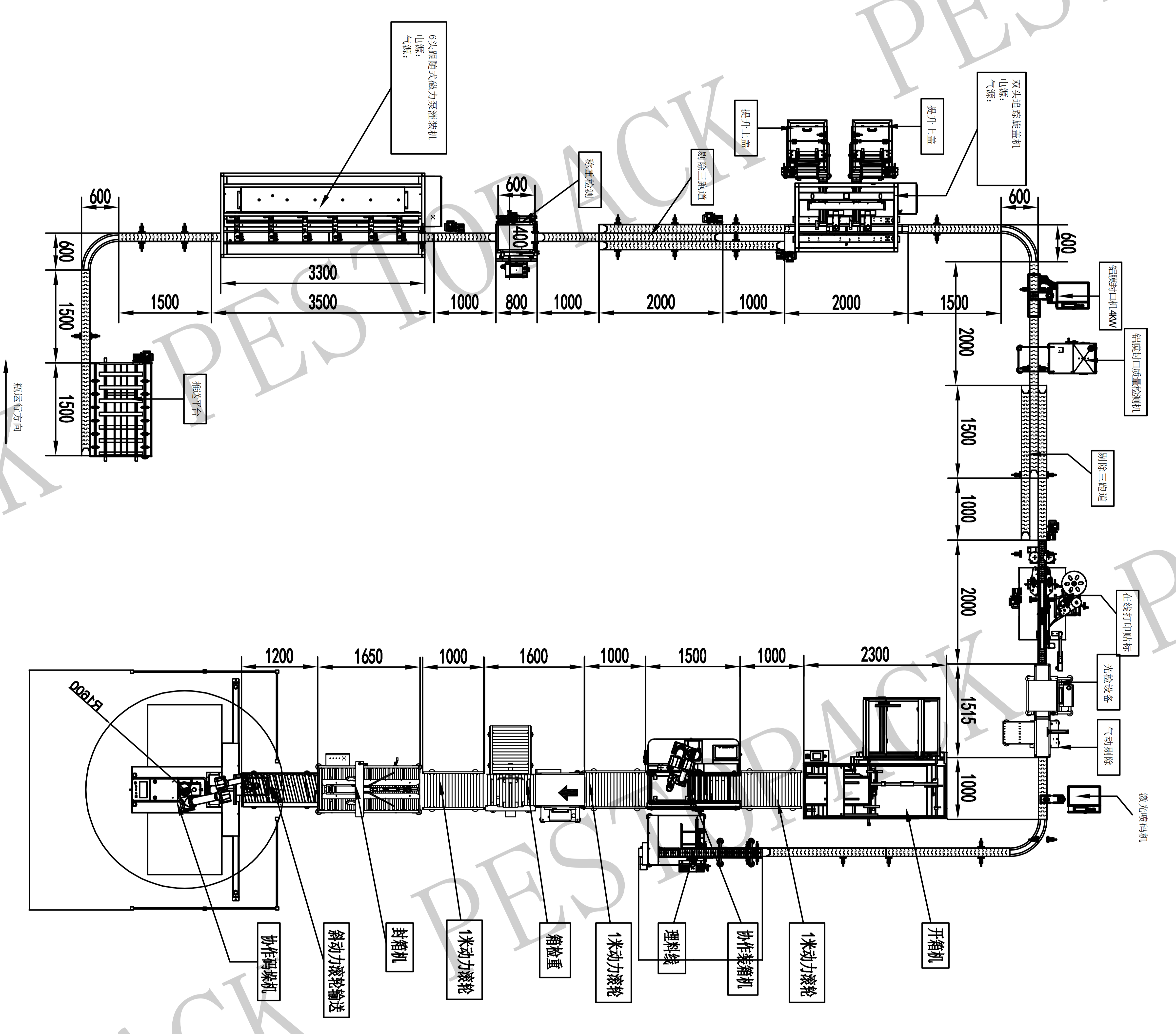

What Is Included in a Lubricant Oil Filling Line?

Before discussing price in more detail, it helps to define what a lubricant oil filling line actually is.

A basic line may include only three or four machines.

A complete automatic packaging line can include equipment from empty bottle feeding all the way to finished pallet handling.

Typical Primary Packaging Equipment

The core machines normally include:

1. Automatic bottle feeding or bottle unscrambling system

2. Lubricant oil filling machine

3. Automatic capping machine

4. Induction sealing machine

5. Labeling machine

6. Date or batch coding machine

7. Conveyor system

Optional Secondary Packaging Equipment

A larger project may also include:

• carton forming

• robotic or mechanical case packing

• carton sealing

• shrink wrapping

• check weighing

• inspection systems

• robotic palletizing

• pallet wrapping

• pallet strapping

You may also need upstream equipment such as lubricant blending tanks, finished oil storage tanks, transfer pumps, pipelines, filters, and control systems.

Naturally, the more processes you automate, the higher the initial investment becomes.

But higher automation can also reduce labor requirements and improve long-term production consistency.

Production Capacity Is One of the Biggest Price Factors

Production speed has a major influence on lubricant oil filling line cost.

A small factory filling 800–1,000 bottles per hour does not need the same equipment architecture as a large automotive lubricant manufacturer targeting 8,000 or 10,000 bottles per hour.

Small Lubricant Filling Lines: Around 500–1,000 BPH

For a startup or local lubricant producer, a smaller line may be sufficient.

Typical applications include:

• 500ml engine oil

• 1L motor oil

• 4L or 5L automotive lubricant

• relatively limited daily production

A basic system may use fewer filling heads and more manual operations.

For example, operators may manually feed bottles, place caps, pack bottles into cartons, or move finished cartons onto pallets.

A budget of approximately $20,000-$50,000 may be reasonable depending on the machine configuration.

This is often the most practical option when labor costs are relatively low and production demand is still developing.

Medium Lubricant Filling Lines: Around 3,000 BPH

Once production reaches approximately 3,000 bottles per hour, automation becomes much more important.

At this level, manufacturers usually expect stable synchronization between:

• filling

• capping

• sealing

• labeling

• conveyors

Manual bottle handling becomes more difficult because any delay at one station can affect the whole line.

A medium-sized lubricant oil filling line can typically cost around $50,000-$200,000, depending on how complete the system is.

That may sound like a very broad range, but there is a major difference between:

Filling + capping + labeling

and

Bottle feeding + filling + capping + induction sealing + labeling + coding + automatic carton packing + complete conveyor system.

High-Speed Lines: 6,000 BPH and Above

Large lubricant manufacturers usually focus not only on filling speed but on overall production efficiency.

At 6,000 BPH or more, you need to consider:

• automatic product handling

• filling accuracy at high speed

• buffer conveyor design

• automatic cap feeding

• bottle stability

• label positioning

• inspection

• automatic secondary packaging

• palletizing

Complete high-speed projects may require an investment of approximately $200,000-$350,000 or more.

At this level, the line is no longer simply a collection of machines. It becomes an integrated production system.

Bottle Size Can Change the Equipment Cost

Are you filling 500ml bottles or 200L drums?

That single question can completely change the filling technology.

Lubricant packaging commonly includes:

• 200ml

• 500ml

• 1L

• 4L

• 5L

• 20L

• 25L

• 200L

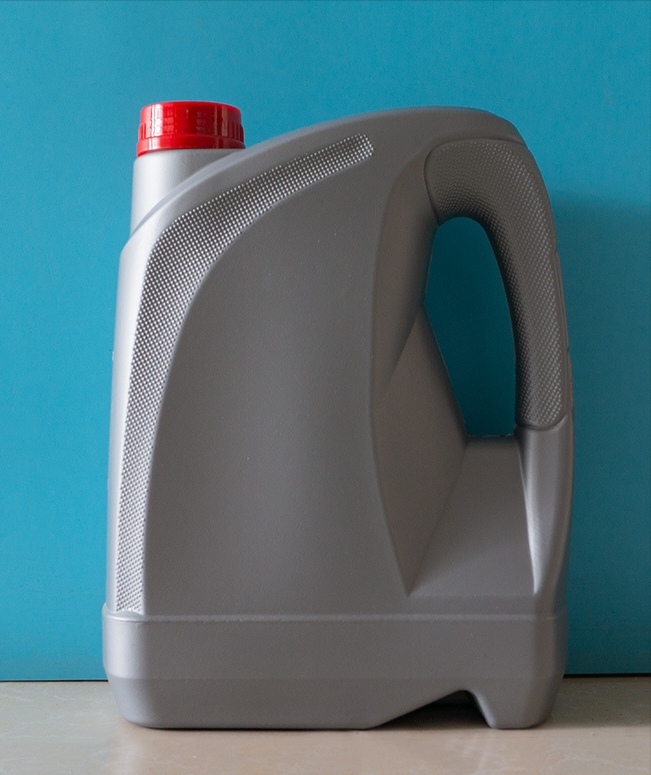

1L–5L Bottles

Retail engine oil and motor oil are commonly sold in 1L, 4L, and 5L containers.

These containers are often handled by automatic conveyor-based filling lines.

A servo piston filling system, pump filling system, or another suitable volumetric technology may be selected depending on viscosity, required accuracy, and speed. If your main products are packed in 1L, 4L, or 5L bottles, you can read our 1L–5L Engine Oil Filling Line: Machines, Capacity and Production Process for a detailed breakdown of the equipment configuration, production capacity, and complete packaging process.

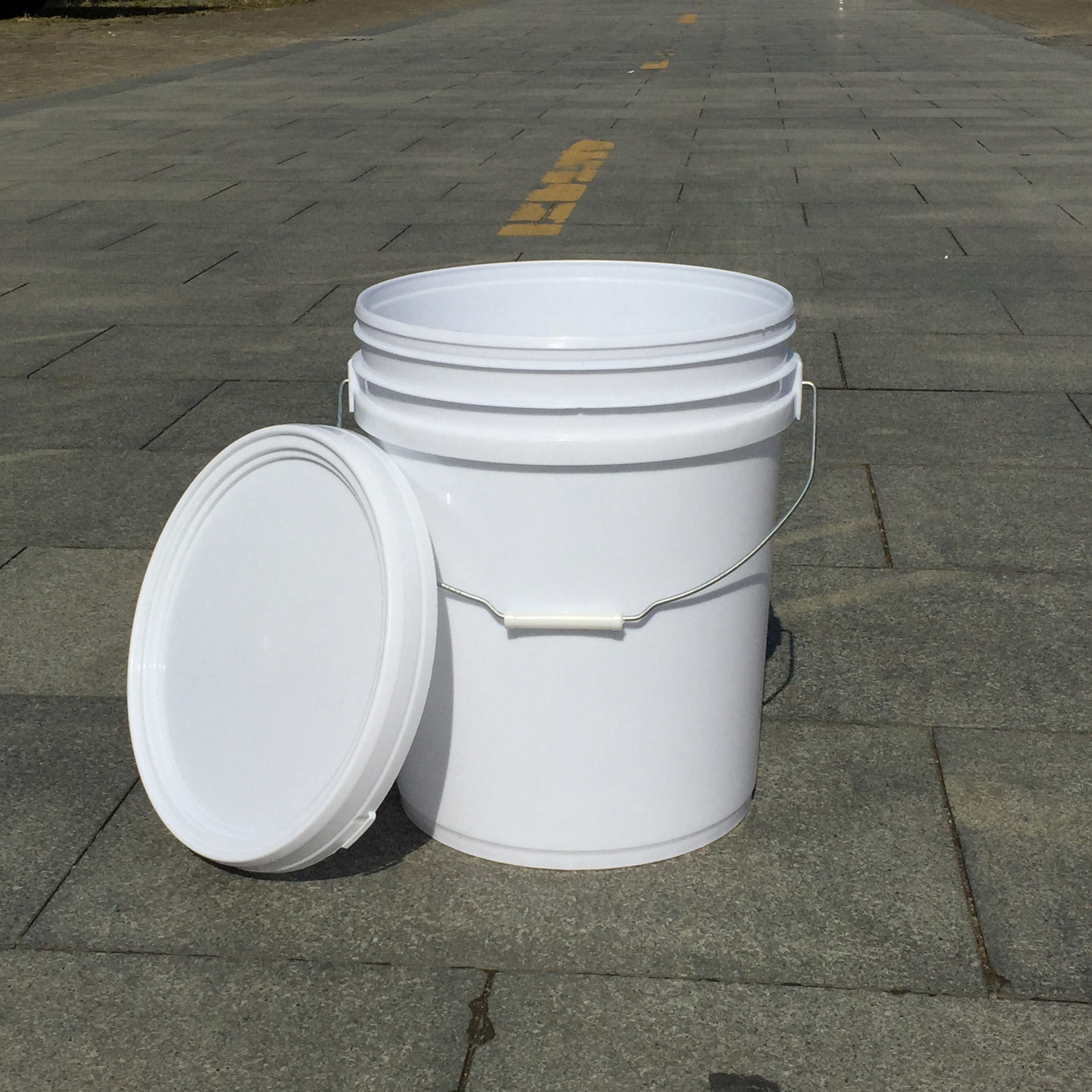

20L and 25L Containers

When container size increases, production speed is usually lower, but each fill becomes more valuable.

Accuracy therefore becomes extremely important.

20L and 25L lubricant containers are frequently filled using weight-based systems or other solutions designed for large-volume dosing.

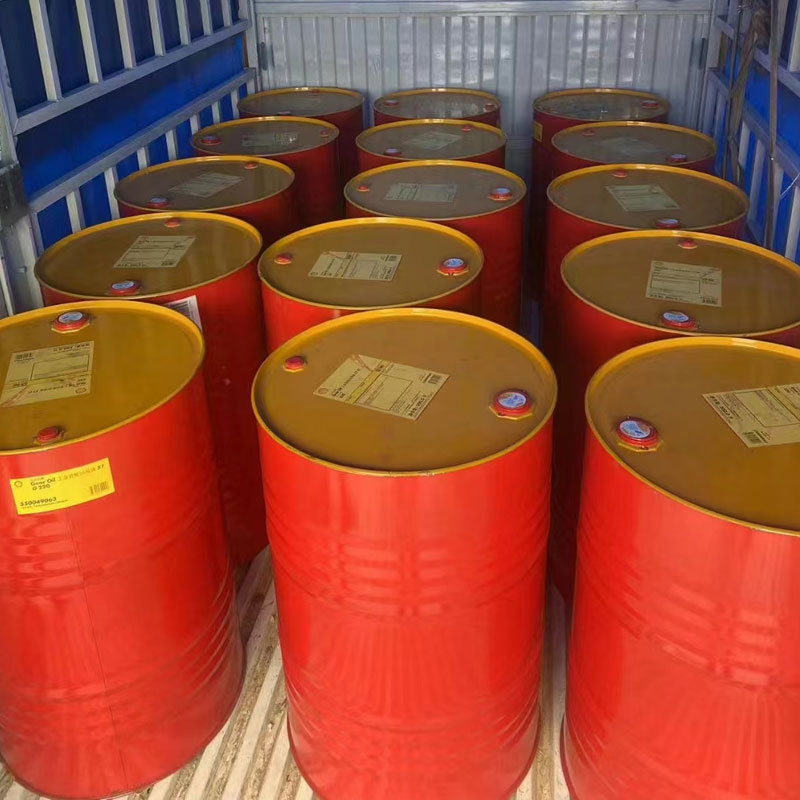

200L Drums

A 200L drum filling system is quite different from a 1L bottle filling line.

Drum filling commonly uses weighing technology because the manufacturer needs reliable control of a large quantity of product.

The system may also require:

• heavy-duty roller conveyors

• drum positioning

• gross or net weighing

• automatic nozzle lifting

• drip collection

• pallet handling

So do not assume that a lower container-per-hour requirement automatically means a cheaper machine.

Large-container systems can still require sophisticated mechanical and weighing components.

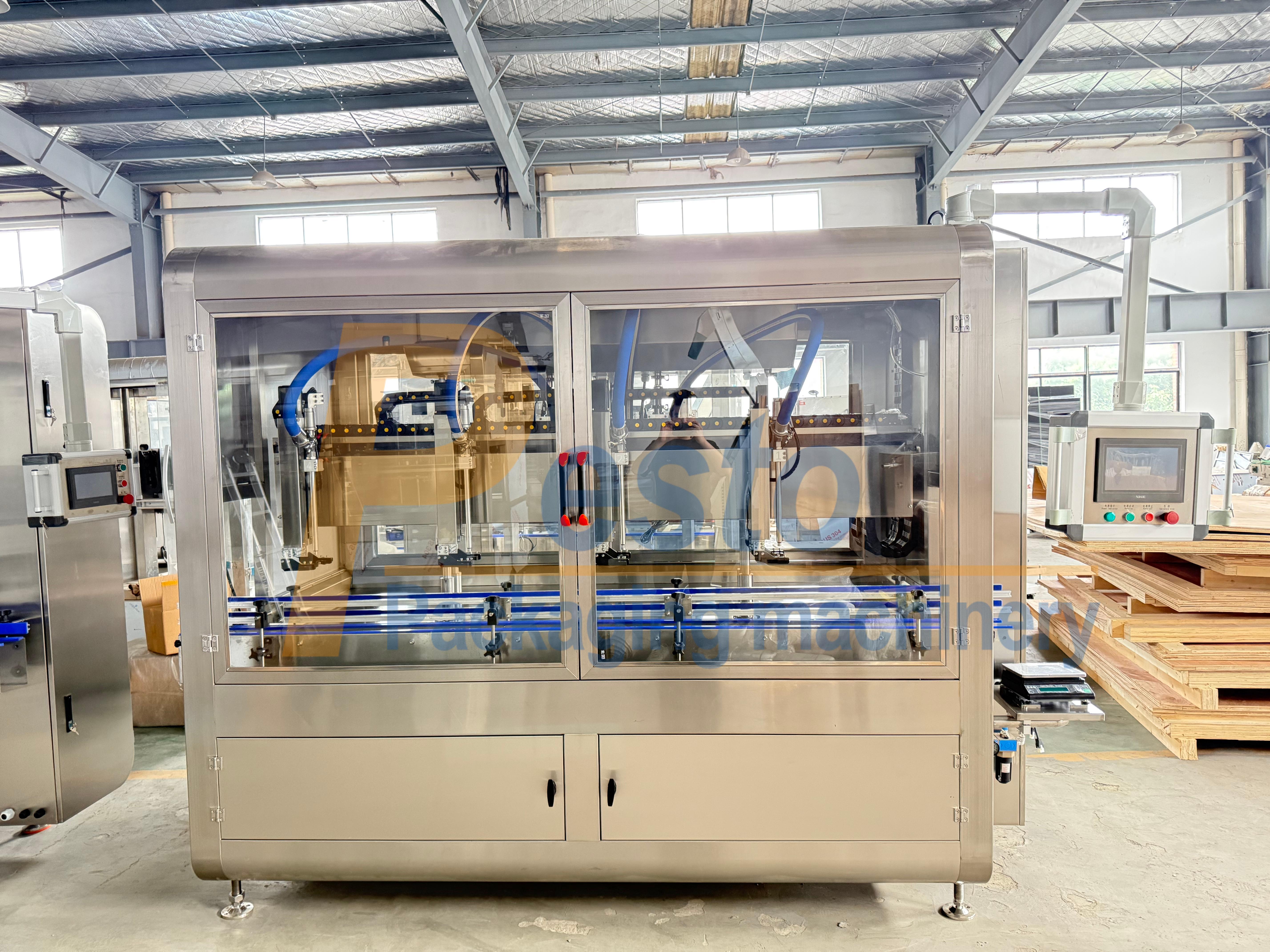

Filling Technology Has a Direct Impact on Price

Not all lubricants behave the same way.

Gear oil can be much more viscous than some hydraulic oils. Temperature changes can also affect viscosity.

This is why choosing the correct filling technology matters.

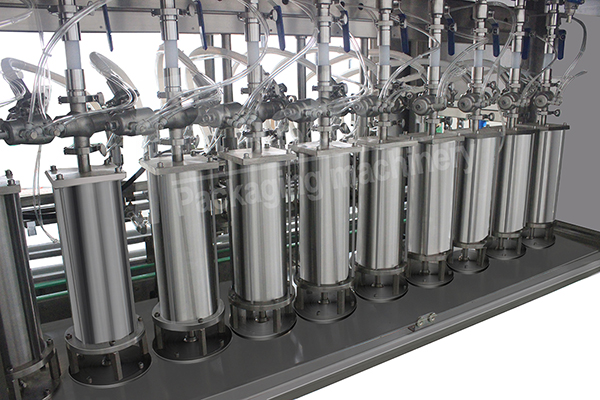

Servo Piston Filling

Servo piston filling machines are widely used for viscous liquid products.

They are particularly suitable for applications where accurate volumetric dosing and flexible adjustment are required.

Advantages can include:

• good filling accuracy

• programmable filling volume

• suitability for viscous oils

• easy recipe adjustment

• compatibility with multiple bottle sizes

The use of servo motors, PLC control, quality pumps, cylinders, valves, and electronic components will naturally influence equipment cost.

Pump Filling

Different pump technologies can be used depending on product characteristics.

The advantage of pump-based filling is flexibility.

However, the pump type, materials, control system, and flow characteristics must match the lubricant.

Choosing the cheapest pump is not necessarily the cheapest solution in the long run if it results in unstable filling or excessive maintenance.

Weight Filling

Weight filling is particularly useful for larger containers such as 20L pails and 200L drums.

Instead of depending only on volume, the system monitors product weight during filling.

This can provide excellent control when filling high-value products into large containers.

For projects involving different filling technologies and package sizes, reviewing a complete automatic lubricant filling solution can help you understand how individual machines are integrated into one production system.

Lubricant Viscosity Affects Both Machine Design and Cost

Here is a question many buyers overlook:

What is the viscosity of the oil you plan to fill?

A lubricant filling machine is not simply moving liquid from Tank A into Bottle B.

The machine must control flow accurately.

Think about pouring water and honey.

Both are liquids, but they do not behave the same way.

Lubricants can vary significantly depending on their formulation, temperature, and application.

Typical products may include:

• engine oil

• motor oil

• gear oil

• transmission oil

• hydraulic oil

• compressor oil

• industrial lubricants

More viscous products may require different pumps, larger piping, different valve structures, or specialized filling nozzles.

If several products with different viscosities must run on one line, the machine design may need additional flexibility.

That increases engineering complexity and potentially the price.

Filling Accuracy Can Be More Important Than Machine Price

Suppose you are filling 1L bottles.

If every bottle receives just a little more oil than required, it may not look like a serious problem.

But multiply that over thousands of bottles every day.

Then multiply that over one year.

Overfilling can become a significant hidden cost.

For lubricant manufacturers, filling accuracy affects:

• product giveaway

• profitability

• package consistency

• customer confidence

• production quality control

This is why a more accurate machine can sometimes deliver a better return than a cheaper machine.

When comparing quotations, ask the supplier:

What filling accuracy can the machine achieve under my actual production conditions?

Do not look only at the theoretical specification.

Your product viscosity, container type, filling volume, production speed, temperature, and foaming characteristics may affect real-world performance.

Automation Level Changes the Initial Investment

You can automate almost every stage of a lubricant packaging line.

But should you?

Not necessarily.

The best automation level depends on production volume, labor costs, available space, and future expansion.

Semi-Automatic Configuration

A semi-automatic setup may require operators to:

• load empty containers

• position bottles

• place caps

• remove filled products

• pack cartons

Advantages include:

• lower initial investment

• simpler operation

• easier maintenance

• suitable for small production volumes

The disadvantage is higher labor dependency.

Automatic Configuration

A fully automatic line can include:

• bottle feeding

• automatic filling

• cap feeding and capping

• induction sealing

• automatic labeling

• coding

• carton packing

• palletizing

This requires a higher initial budget, but it can significantly reduce manual handling.

For factories operating multiple shifts, automation can become increasingly attractive because labor savings accumulate every day.

Capping and Sealing Equipment Add to the Price

A lubricant bottle does not leave the factory immediately after filling.

It needs to be closed securely.

Many lubricant products use several packaging components, such as:

• screw caps

• inner seals

• aluminum foil

• tamper-evident closures

• special cap designs

A simple capper will cost less than an automatic cap handling and orientation system.

If the line needs automatic cap sorting, feeding, insertion, capping, and torque control, the system becomes more complex.

Induction sealing is also commonly used for engine oil and automotive lubricant products.

It helps improve packaging security and can reduce leakage risks during transportation.

These downstream processes should be considered when calculating the complete lubricant packaging line cost.

Labeling and Coding Requirements Matter

A basic labeling system may apply one label to a round bottle.

But lubricant bottles are often not simple round containers.

Many automotive oil bottles have:

• rectangular shapes

• built-in handles

• front and back labels

• irregular surfaces

• specific label orientation requirements

This can require a more advanced labeling machine.

For example, an automatic double-side labeling machine with bottle alignment and servo control will normally cost more than a basic labeling unit.

Coding requirements can also add cost.

You may need to print:

• production date

• expiry or recommended-use date

• batch number

• QR code

• traceability information

Depending on the application, inkjet, thermal inkjet, laser, or other coding systems may be integrated.

End-of-Line Packaging Can Change the Project Budget Dramatically

This is one of the most common reasons two quotations look very different.

Supplier A quotes only the primary packaging machines.

Supplier B includes automatic carton packing and palletizing.

Naturally, Supplier B appears much more expensive.

But the scopes are not equivalent.

Manual Packing

Operators manually place bottles into cartons.

This keeps investment low but increases labor requirements.

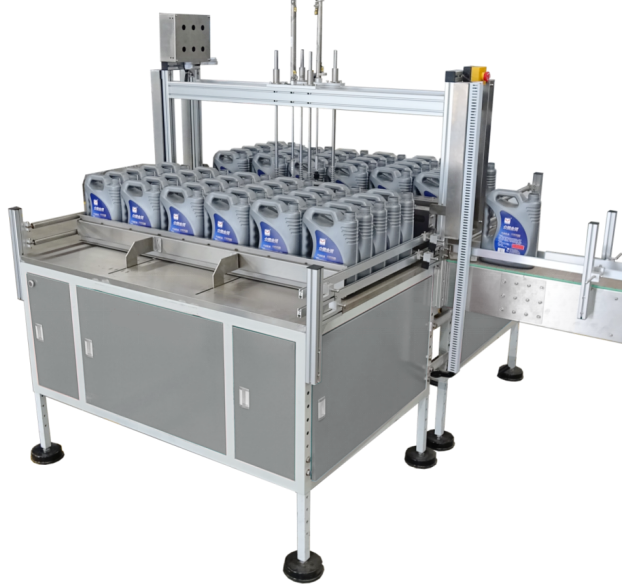

Automatic Carton Packing

The line may automatically:

1. erect cartons

2. group bottles

3. load bottles into cartons

4. seal cartons

5. transfer finished cases

Automatic Palletizing

A robotic palletizer or mechanical palletizing system can stack cartons automatically.

For large production plants, this can substantially reduce heavy manual handling.

However, palletizers, safety fencing, conveyors, controls, and pallet handling equipment also increase project cost.

Multiple Bottle Sizes Increase Changeover Requirements

Many lubricant manufacturers do not produce only one SKU.

You may need to fill:

• 500ml

• 1L

• 4L

• 5L

on the same line.

This is possible, but the supplier needs to understand every container in advance.

Why?

Because bottle dimensions affect:

• conveyor guides

• filling nozzle positions

• capping height

• cap feeding

• labeling

• change parts

• machine recipes

The more bottle formats you have, the more important quick changeover becomes.

A slightly more expensive flexible line may be a much better investment than buying a low-cost machine designed around only one bottle.

Component Brands Influence the Machine Price

Two machines may look almost identical from the outside.

Open the electrical cabinet, and the difference can become much clearer.

Machine cost is influenced by components such as:

• PLC

• HMI

• servo motors

• variable-frequency drives

• sensors

• pneumatic components

• motors

• gearboxes

• load cells

• pumps

International brands generally cost more than generic alternatives.

Does that mean you must always choose the most expensive components?

No.

The correct question is:

What level of reliability, local support, spare-part availability, and performance does your factory require?

A machine that stops frequently is expensive even if its purchase price was low.

Factory Layout and Conveyor Length Affect the Quotation

Sometimes buyers focus only on the main machines and forget about conveyors.

But conveyors connect the entire production line.

A factory with a compact straight-line layout may require relatively short conveyor sections.

Another factory may need:

• long transfers

• 90-degree turns

• accumulation sections

• elevated or special conveyors

• multiple production branches

This increases:

• conveyor length

• motors

• control points

• sensors

• electrical installation

• engineering work

Therefore, providing a factory layout before the final quotation can improve price accuracy.

Installation, Commissioning, Training, and Shipping Should Be Considered

The machine purchase price is not always the final project cost.

Depending on the supplier and contract, you may also need to budget for:

• international freight

• insurance

• customs duties

• import taxes

• engineer travel

• visa expenses

• accommodation

• local transportation

• installation

• commissioning

• operator training

• spare parts

When requesting a quotation, ask clearly:

What is included and what is excluded?

This avoids surprises later.

How Should You Compare Lubricant Filling Line Quotations?

Never compare only the total price.

Instead, compare the quotations line by line.

A useful checklist includes:

You may discover that the cheapest quotation simply contains fewer machines.

Or perhaps it uses lower-level components.

Or maybe it requires more manual labor.

A proper comparison should always be scope versus scope, not simply price versus price.

Should You Buy the Cheapest Lubricant Filling Line?

Usually, no.

You also do not automatically need the most expensive one.

The goal is to find the right balance between:

investment + performance + flexibility + reliability + operating cost.

Imagine two lines.

Line A costs $80,000.

Line B costs $100,000.

At first glance, Line A saves $20,000.

But what if Line B:

• reduces overfilling

• needs two fewer operators

• changes bottle formats faster

• experiences less downtime

• handles future production growth

Over several years, Line B may actually cost less.

This is why professional buyers look at total cost of ownership, not only purchase price.

How to Estimate ROI for a Lubricant Filling Line

A simple ROI analysis should consider several factors.

Labor Savings

How many operators are needed before and after automation?

For example, if automation eliminates several manual packing or handling positions across two shifts, annual labor savings can become significant.

Product Giveaway

How much lubricant is lost through overfilling?

Better filling accuracy can reduce product giveaway.

This matters even more for high-value lubricants.

Production Output

Can you produce more saleable units during the same working hours?

Higher throughput may allow your factory to accept larger orders without adding another shift.

Downtime

A machine with stable performance may generate more real production output than a faster machine that frequently stops.

That is why OEE and actual usable production time matter.

Future Expansion

Will the equipment still meet your needs in three or five years?

Buying only for today's demand may result in another major investment sooner than expected.

What Information Should You Send to Get an Accurate Quotation?

If you simply ask:

“Please send your lubricant filling machine price.”

the supplier can only give you a rough estimate.

For an accurate quotation, provide as much information as possible.

Product Information

Tell the supplier:

• engine oil, gear oil, hydraulic oil, etc.

• product viscosity

• product density if available

• operating temperature if relevant

Container Information

Provide:

• bottle volume

• bottle dimensions

• bottle drawings

• bottle photos

• neck dimensions

• cap type

Production Requirement

Specify:

• target bottles per hour

• working hours per day

• number of shifts

• annual production target

Automation Requirement

Tell the supplier whether you need:

• filling only

• filling and capping

• complete primary packaging

• automatic carton packing

• palletizing

• turnkey production solution

Factory Information

Provide:

• available floor space

• factory layout

• electrical voltage and frequency

• compressed air availability

• installation conditions

The better the information, the more accurate the quotation.

What Is a Reasonable Budget for a New Lubricant Packaging Project?

If you are still at the feasibility-study stage, think about your project in three levels.

Entry-Level Project

Suitable for:

• startups

• local brands

• relatively low output

• higher manual labor

Approximate filling-line budget:

$20,000-$50,000

Medium Automatic Project

Suitable for:

• established lubricant producers

• regional distribution

• multiple bottle sizes

• approximately 3,000 BPH production

Approximate budget:

$50,000-$200,000

Large Fully Automated Project

Suitable for:

• major lubricant brands

• high production volume

• multi-shift operation

• automatic secondary packaging

• palletizing

Approximate budget:

$200,000-$350,000+

Remember that these estimates refer to packaging equipment configurations and can change significantly depending on scope.

A turnkey lubricant manufacturing facility including blending, storage, laboratory systems, utilities, buildings, and infrastructure will have a much higher overall investment.

Frequently Asked Questions About Lubricant Filling Line Cost

How much does a small lubricant oil filling machine cost?

Small or basic lubricant filling systems may cost tens of thousands of dollars depending on filling technology, capacity, number of filling heads, and automation level.

A filling machine alone will generally cost much less than a complete line with capping, sealing, labeling, and packing.

Why are automatic lubricant filling lines more expensive?

Automatic lines require more equipment, controls, sensors, conveyors, servo systems, and integration work.

However, they can reduce labor requirements and provide more consistent production at higher output.

Can one machine fill 1L, 4L, and 5L bottles?

Yes.

A properly designed lubricant filling line can handle several bottle sizes through machine adjustments, recipe changes, and change parts.

The actual bottle drawings should be reviewed before the equipment is finalized.

Is a 20L lubricant filling machine more expensive than a 1L machine?

Not necessarily.

A 20L line usually operates at a lower container-per-hour rate, but large-volume filling often requires high-accuracy weighing equipment and heavy-duty handling systems.

The final cost depends on the required automation and production capacity.

What filling machine is best for lubricant oil?

There is no single best filling technology for every lubricant.

The right solution depends on:

• viscosity

• bottle volume

• filling accuracy

• production speed

• container type

• number of SKUs

Servo piston, pump-based, and weighing systems are all commonly used for different lubricant applications.

How can I reduce the cost of a lubricant filling line?

Start by automating the processes that provide the strongest return.

For example, a growing factory may initially keep carton packing and palletizing manual while investing in automatic filling, capping, sealing, and labeling.

You can add additional automation later if the system is designed with future expansion in mind.

What is more important: machine speed or filling accuracy?

Both matter, but the highest theoretical speed is not always the best choice.

A line should deliver stable production at the required accuracy.

A machine advertised at 6,000 BPH is not useful if your actual production is constantly interrupted by bottle instability, filling errors, cap jams, or labeling problems.

Final Thoughts: Focus on Value, Not Just Purchase Price

So, how much does a lubricant oil filling line cost?

As a general planning range:

• Around 1,000 BPH:



  50,000

• Around 3,000 BPH:



  200,000

• 6,000+ BPH:



  350,000 or more

But those numbers only tell part of the story.

The real cost depends on your:

• lubricant type

• viscosity

• bottle sizes

• target production capacity

• filling technology

• automation requirements

• capping and sealing process

• labeling requirements

• secondary packaging

• component brands

• factory layout

• installation requirements

The best lubricant filling line is therefore not automatically the cheapest system or the fastest system.

It is the line that gives you the right production capacity, filling accuracy, flexibility, reliability, and long-term operating cost for your business.

Before requesting a final quotation, define your products, bottle sizes, target speed, cap types, label requirements, packaging method, and factory conditions.

With this information, an equipment manufacturer can design a configuration based on your actual production needs instead of simply offering a standard machine.

If you are planning a new engine oil, motor oil, gear oil, or industrial lubricant packaging project, explore our complete lubricant oil packaging line to compare filling technologies, container applications, capacities, and complete production-line configurations.
