Introduce

Choosing the right dosing system is the most critical decision when investing in a lubricant oil filling machine. As a leading lubricant oil filling line manufacturer located in Changzhou, we often see factory owners torn between the traditional reliability of the Piston system and the modern precision of the Magnetic Pump.

In this comprehensive guide, we will break down the mechanics, costs, and performance of both to help your factory make an informed choice.

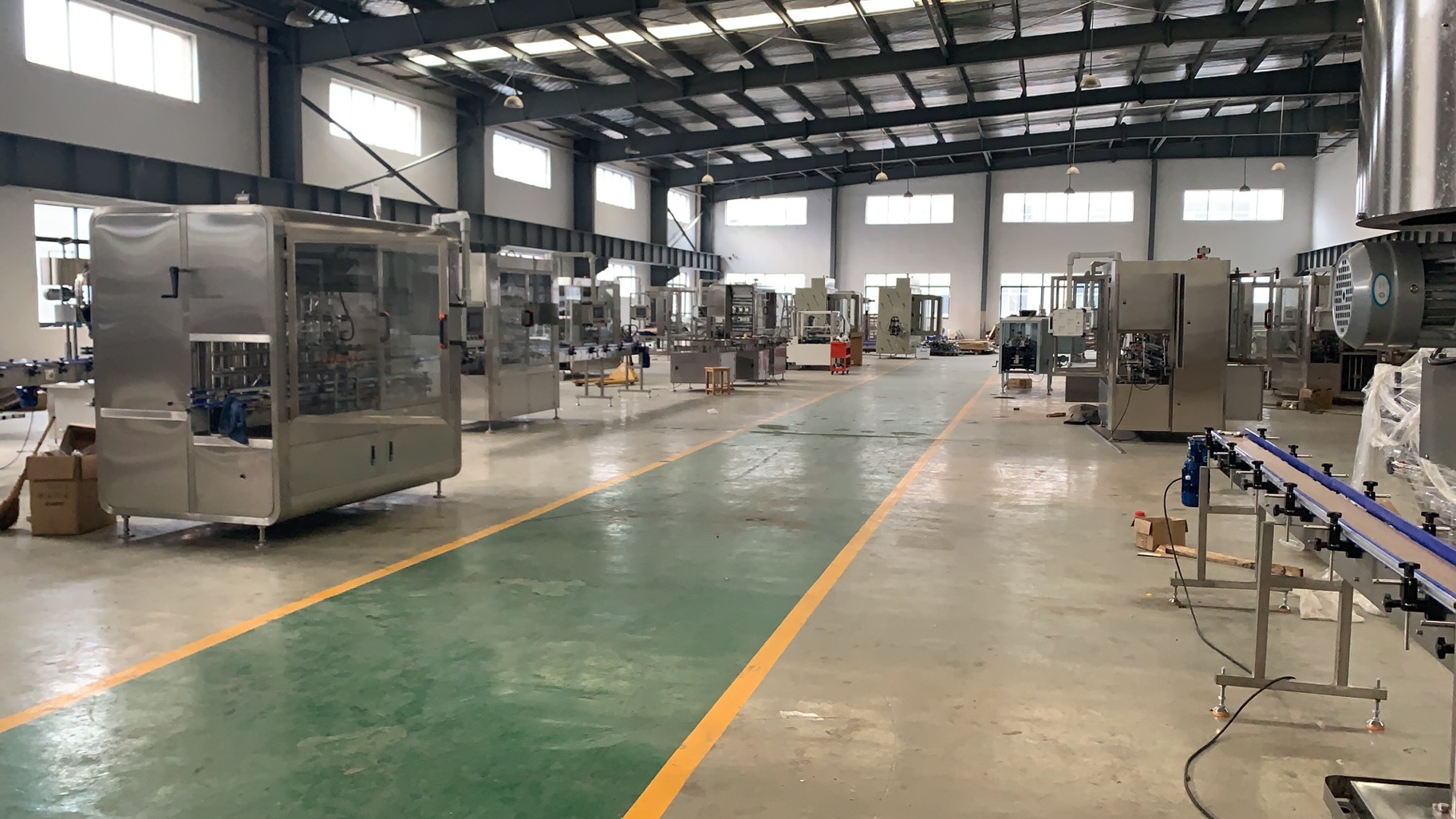

“Overview of an automatic lubricant oil filling line in our Changzhou factory.”

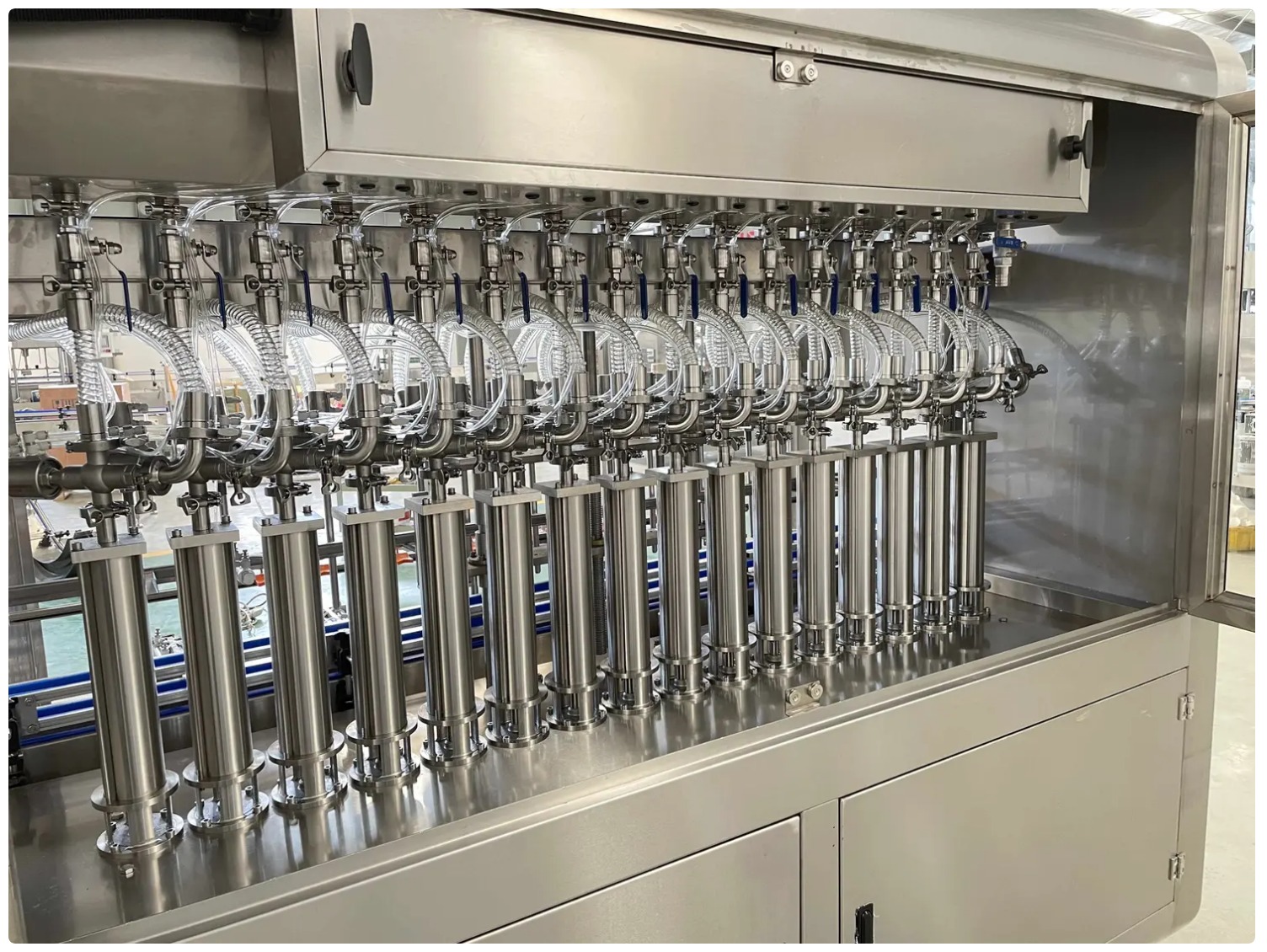

1. What is a Piston Filling System?

The piston filling machine is the "workhorse" of the oil industry. It operates on a volumetric principle where a cylinder and piston act like a giant syringe to draw and dispense a precise volume of oil.

• Best for High Viscosity: Ideal for heavy engine oils (SAE 40, SAE 50) and gear oils.

• Mechanical Power: The physical stroke provides strong suction, ensuring thick oils move quickly through the lubricant oil bottling line.

• Cost-Effective: Typically offers a lower initial investment for startups and mid-sized lubricant oil filling factories.

Pro Tip: While robust, piston fillers require regular maintenance of O-rings and seals to prevent minor leaks over time.

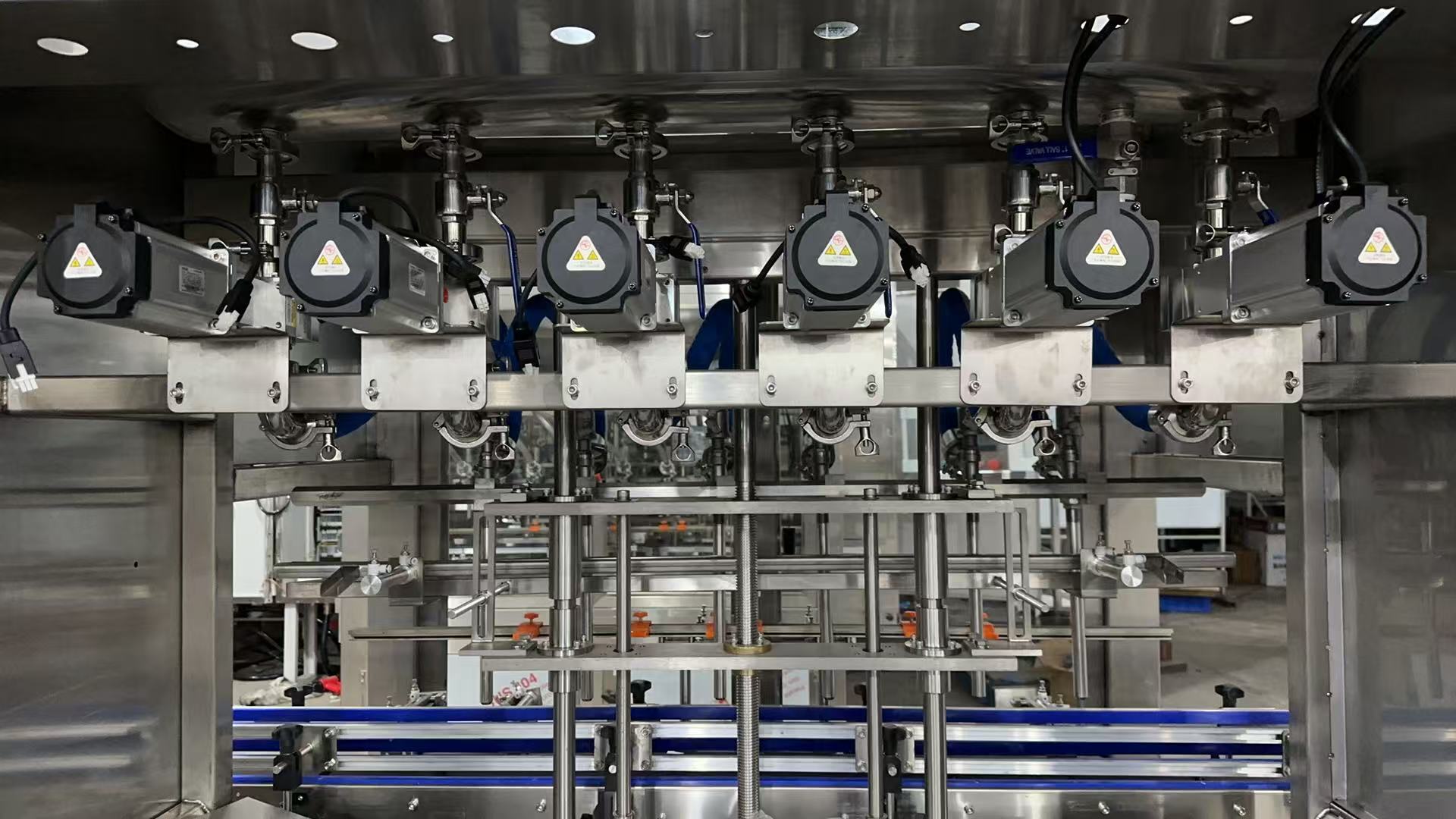

2. What is a Magnetic Pump Filling System?

A magnetic pump filling machine uses a sealless drive system where the pump head is driven by magnetic coupling. This eliminates the need for dynamic seals entirely.

• Zero Leakage: The hermetically sealed design ensures that not a single drop of oil leaks from the pump shaft, keeping your lubricant oil packaging line pristine.

• High Precision: Controlled via PLC and HMI, allowing for digital micro-adjustments without stopping the machine.

• Low Maintenance: With no friction-heavy seals to replace, the Total Cost of Ownership (TCO) is significantly reduced over 3-5 years.

3. Head-to-Head Comparison

To help you decide, our engineers have summarized the key technical differences:

4. TCO Analysis: Which Saves More Money?

When sourcing from a China factory, especially in high-end machinery hubs like Changzhou, you should consider the long-term ROI. At our Changzhou production base, we've tested both systems., don't just look at the price tag. Consider the long-term ROI.

1. Initial Cost: The Piston system is 20-30% cheaper upfront.

2. Operational Savings: The Magnetic Pump system reduces "product giveaway" (overfilling) by roughly 0.3% compared to piston systems. For a factory producing 10,000 bottles of synthetic oil daily, this accuracy saves thousands of dollars in wasted oil per year.

3. Downtime: Replacing piston seals every 6 months causes production halts. A magnetic pump can run for years without major parts replacement, maximizing your lubricant oil filling line's uptime.

5. Which One Should Your Factory Choose?

Choose the Piston System if:

• You are primarily filling large containers (5L to 20L).

• You handle very high-viscosity lubricants or greases.

• Initial budget is a primary constraint.

• Recommended Product: piston filling machine

Choose the Magnetic Pump System if:

• You fill high-value synthetic oils where every drop counts.

• You need to switch between multiple bottle sizes (100ml, 500ml, 1L) frequently.

• You want a "Clean Factory" with zero oil dripping.

• Recommended Product: magnetic pump filling machine




Conclusion

Both systems have their place in a modern lubricant oil filling factory. As an experienced manufacturer, we recommend a Piston system for raw power and a Magnetic Pump system for digital precision and cleanliness.

Still not sure which one fits your production needs?

Visit our factory in Changzhou or contact our engineering team today for a customized 3D layout. We welcome international clients to see our lubricant oil filling lines in action.
