1L–5L Engine Oil Filling Line: Machines, Capacity and Production Process

If you are planning to package engine oil in 1L, 4L, or 5L bottles, choosing a filling machine is only one part of the project.

The bigger question is:

How do you build a complete engine oil filling line that fills accurately, handles different bottle sizes, caps reliably, labels neatly, and keeps production running smoothly?

For most lubricant manufacturers, 1L–5L containers are among the most important retail packaging formats. A single production line may need to handle several products, such as engine oil, motor oil, gear oil, hydraulic oil, or transmission oil, while also switching between different bottle sizes and label designs.

That sounds simple on paper. In reality, the line has to coordinate multiple machines at the same speed.

A typical 1L–5L engine oil filling line include:

• bottle feeding

• automatic filling

• cap feeding

• capping

• induction sealing

• labeling

• coding

• carton packing

• palletizing

And every machine has to work together.

In this guide, we will walk through the complete production process, explain the main machines required, compare capacity options, and show you what information you should prepare before buying an engine oil packaging line.

If you are already planning a complete project, you can also explore our lubricant oil filling line solutions for engine oil, motor oil, gear oil, and other industrial lubricants.

What Is a 1L–5L Engine Oil Filling Line?

A 1L–5L engine oil filling line is an integrated production system designed to package lubricants into small and medium-sized retail containers.

The filling range normally covers common bottle formats such as:

• 1L

• 2L

• 3L

• 4L

• 5L

Depending on the machine design, smaller sizes such as 500ml may also be handled on the same system.

These bottles are commonly made from:

• HDPE

• PET

• other suitable plastic packaging materials

Unlike a single filling machine, a complete line performs several connected processes.

The basic flow is usually:

Empty Bottle Feeding → Filling → Cap Feeding → Capping → Induction Sealing → Labeling → Coding → Packing → Palletizing

For a smaller factory, some steps can remain manual.

For a medium or large lubricant manufacturer, most or all of these stages can be automated.

Why Are 1L, 4L and 5L Bottles So Common for Engine Oil?

Walk into an automotive parts store and you will quickly see why these formats matter.

Small bottles are convenient for top-ups, while 4L and 5L containers are commonly used for full engine oil changes.

That makes these sizes commercially important for lubricant brands.

However, they also create a challenge for the production line.

A 1L bottle and a 5L bottle are not simply the same package at different scales.

They may have different:

• bottle widths

• bottle heights

• neck diameters

• handles

• cap sizes

• label sizes

• center of gravity

• conveyor stability

A 5L HDPE bottle with an integrated handle, for example, behaves very differently on a conveyor from a slim 1L bottle.

Therefore, a flexible engine oil filling line must be designed around the actual bottles—not only the filling volume.

What Machines Are Needed for an Engine Oil Filling Line?

Let's follow the production process from the beginning.

Empty Bottle Feeding System

Before filling begins, empty bottles must enter the line in a stable and continuous way.

There are two common approaches.

Manual Bottle Feeding

Operators manually place empty bottles onto the conveyor.

This approach is often suitable for:

• small factories

• lower production speeds

• limited investment budgets

• frequent bottle changes

The advantage is simplicity.

You do not need an automatic bottle unscrambler, and unusual-shaped lubricant bottles can be easier to handle manually.

The disadvantage is labor dependency.

As production speed increases, manually loading hundreds or thousands of bottles per hour becomes difficult.

Automatic Bottle Unscrambler

An automatic bottle unscrambler receives bulk empty bottles and automatically orients them before placing them onto the conveyor.

It is more suitable for:

• higher-speed production

• standardized bottles

• continuous operation

• reduced labor requirements

However, bottle shape matters.

Lubricant bottles often have handles or irregular shapes, so the bottle-feeding solution should always be confirmed using actual samples or detailed bottle drawings.

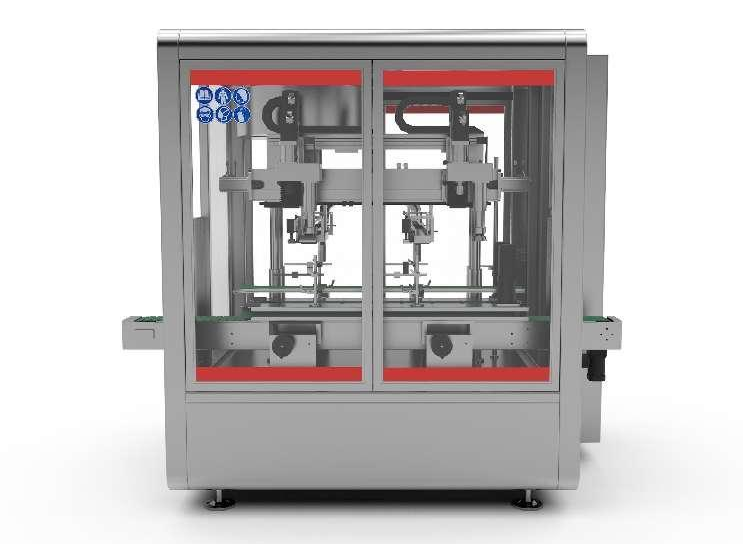

Automatic Engine Oil Filling Machine

The engine oil filling machine is the heart of the line.

Its job sounds straightforward:

Put the correct amount of oil into each bottle.

But doing that accurately thousands of times per hour is where engineering becomes important.

Engine oil and other lubricants have different viscosities, and viscosity can also change with temperature.

That means the filling system must provide:

• stable flow

• accurate dosing

• clean shutoff

• minimal dripping

• consistent filling speed

Servo Piston Filling

Servo piston filling is commonly used for 1L–5L lubricant products.

The filling volume can be controlled through the machine system, making it suitable for factories that need to run several bottle sizes.

Typical advantages include:

• high filling accuracy

• good performance with viscous products

• programmable filling parameters

• flexible volume adjustment

• stable filling action

If you change from 1L to 4L or 5L bottles, the operator can select or adjust the corresponding filling recipe.

Mechanical changeover may still be required for bottle guides, filling nozzle positions, and other line components.

Pump-Based Filling

Pump filling systems can also be used for lubricant oils.

Different pump types may be selected depending on:

• oil viscosity

• required capacity

• filling volume

• accuracy requirement

• number of filling heads

The key is matching the pump technology to the product.

A system designed for a relatively thin hydraulic oil may not necessarily be the best choice for a much thicker gear oil.

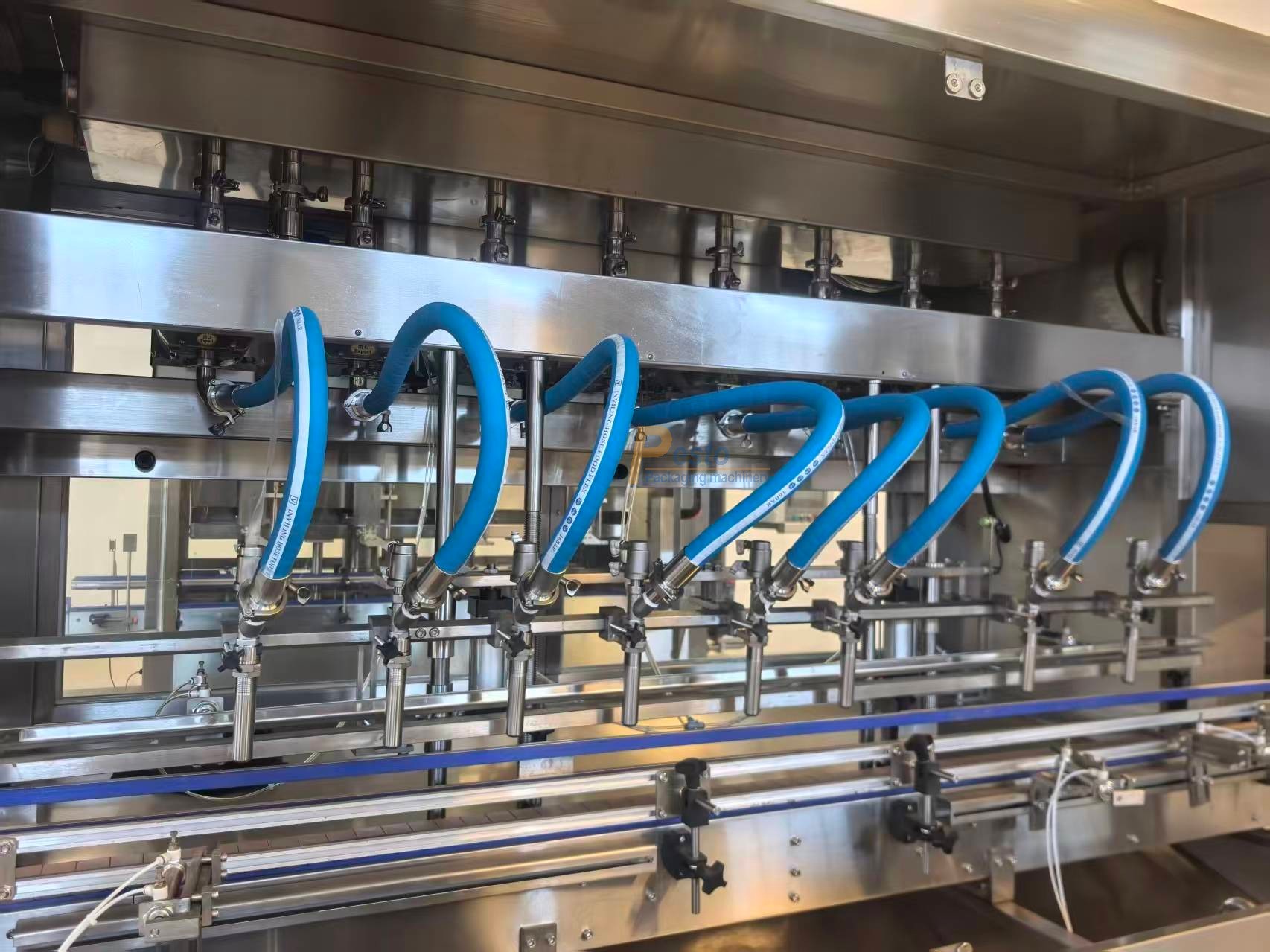

Anti-Drip Filling Nozzles

Have you ever seen an oil bottle leave a filling machine with oil running down the neck?

It looks like a small problem.

On a complete packaging line, it can become a big one.

Oil dripping onto the bottle can cause:

• dirty bottle surfaces

• poor label adhesion

• contaminated conveyor belts

• difficult cleaning

• product waste

• unattractive finished packaging

For this reason, filling nozzles for lubricant oil should have an effective shutoff or anti-drip design.

Depending on the product and filling system, the nozzle may also move during the filling process to reduce splashing or improve filling efficiency.

This is especially important when filling more viscous lubricants.

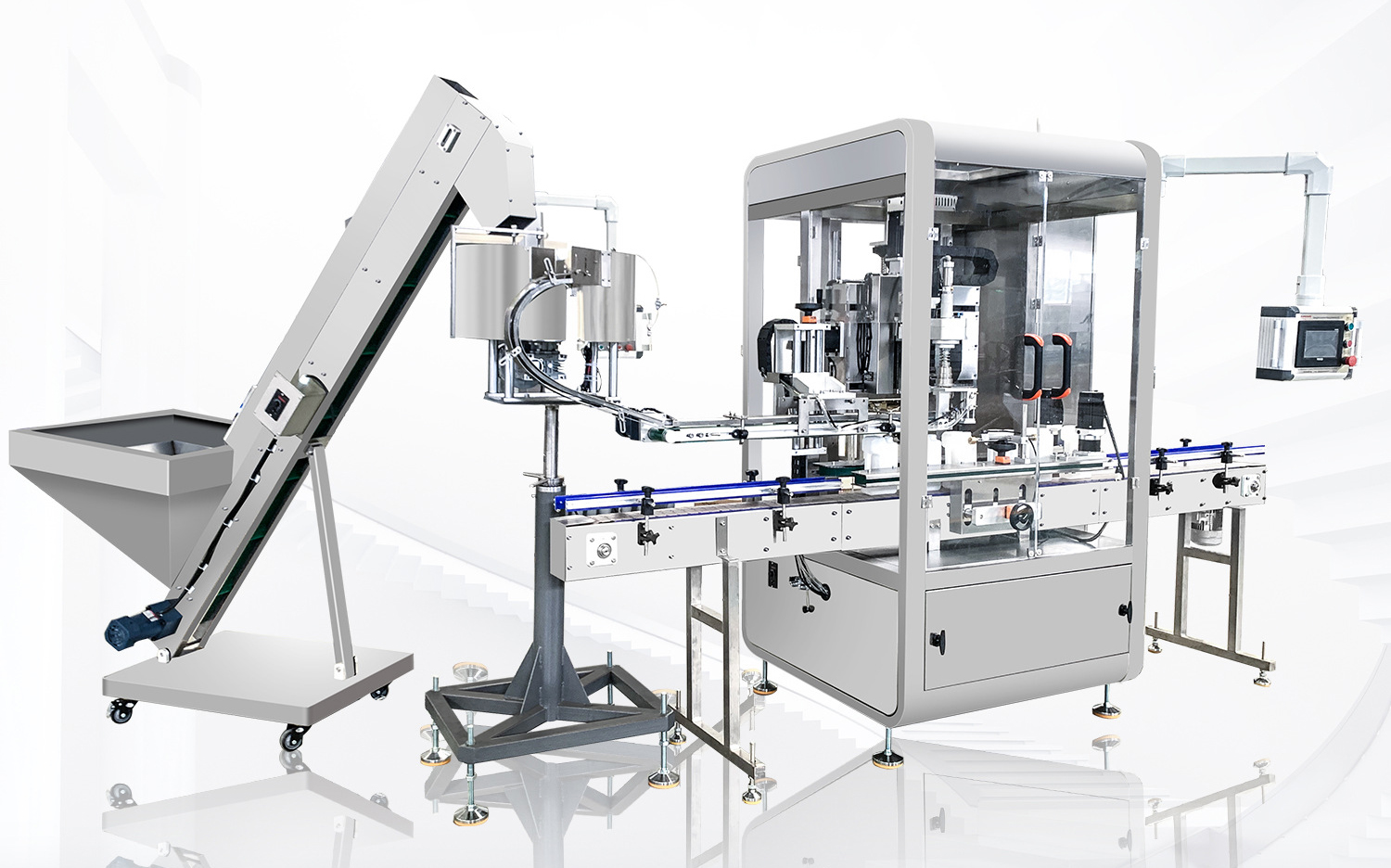

Automatic Cap Feeding System

After filling, bottles move to the capping section.

If you are running at a low speed, an operator can manually place caps onto bottles.

At higher production speeds, this becomes inefficient.

An automatic cap feeding system can:

1. receive bulk caps

2. orient the caps

3. transport them through a cap chute or feeding track

4. place or deliver them to the bottle

5. prepare the bottle for automatic capping

Cap design strongly affects the feeding system.

When requesting a quotation, always provide:

• cap photos

• cap drawings

• cap diameter

• cap height

• thread details if available

• inner plug or sealing requirements

Do not assume that all 1L–5L engine oil bottles use the same cap.

Automatic Capping Machine

Once the cap is positioned, the capping machine tightens it.

Lubricant bottles usually require consistent torque.

Too loose?

You risk leakage.

Too tight?

The cap, bottle neck, or thread can be damaged.

Depending on cap design and production requirements, the line may use:

• spindle capping

• servo capping

• chuck capping

• customized capping systems

Why Servo Capping Can Be Useful

For multi-SKU lubricant production, servo-controlled capping can provide greater control over torque and machine settings.

This can be useful when several bottle and cap formats run on the same production line.

The right choice depends on your actual closure design and required speed.

Induction Sealing Machine

Many engine oil bottles use an aluminum foil liner under the cap.

After the cap is applied, the bottle passes through an induction sealing machine.

The electromagnetic field heats the foil layer and creates a seal across the bottle opening.

Why is this important?

A good seal can help:

• reduce leakage

• provide tamper evidence

• improve transportation security

• protect product integrity

• improve customer confidence

For lubricants distributed over long distances, especially by road or sea, reliable sealing becomes particularly important.

The induction sealing machine must match:

• bottle neck size

• cap size

• foil material

• conveyor speed

• production capacity

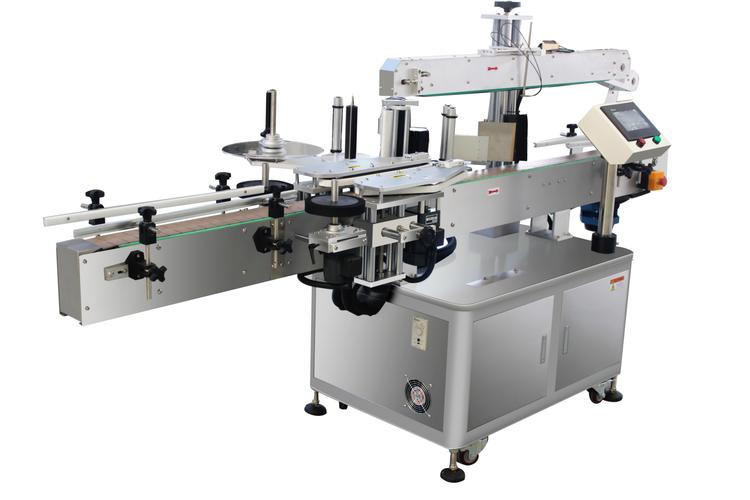

Bottle Labeling Machine

The next step is labeling.

And lubricant bottles can make labeling surprisingly complicated.

Why?

Because many engine oil bottles are not round.

Common packaging shapes include:

• rectangular bottles

• flat-sided containers

• bottles with integrated handles

• asymmetric automotive-style containers

For these bottles, a front-and-back self-adhesive labeling machine is often appropriate.

Front and Back Labeling

One label is applied to the front panel and another to the rear.

This is common for 1L, 4L, and 5L engine oil bottles.

The machine needs to stabilize and align the bottle before applying the labels.

Otherwise, you may see:

• crooked labels

• inconsistent label height

• wrinkles

• poor front-to-back alignment

Single-Side or Wrap-Around Labeling

Some bottle formats may use:

• one side label

• wrap-around label

• other customized labeling methods

Always show the supplier your finished bottle and label artwork before finalizing the machine.

Date Coding and Batch Coding

After labeling, the bottle normally needs production information.

Typical printed information includes:

• production date

• batch number

• lot number

• expiry or recommended-use date

• product code

• traceability information

Coding can be integrated at different locations depending on whether information is printed on:

• bottle

• label

• cap

• carton

Common technologies include inkjet printers, thermal inkjet systems, and laser coding.

The right system depends on your packaging material and print requirements.

Bottle Inspection and Checkweighing

For higher-level production lines, inspection equipment can be added after filling.

A checkweigher can verify whether the finished bottle falls within an acceptable weight range.

This provides an additional layer of quality control.

Other inspection systems may check:

• cap presence

• cap position

• label presence

• barcode

• printed code

• bottle position

Do you need all these systems?

Not always.

A startup may not need the same inspection level as a multinational lubricant manufacturer.

Automation should match your production risk and quality-control requirements.

Carton Packing

Once primary packaging is complete, bottles must be prepared for shipping.

For small projects, operators can manually place bottles into cartons.

For example:

• 12 × 1L

• 4 × 4L

• 4 × 5L

Actual carton configuration depends on your market.

As production grows, manual packing becomes labor-intensive.

An automatic carton packing system can:

• form cartons

• group bottles

• load bottles

• seal cartons

This creates more consistent production and reduces manual handling.

Automatic Palletizing

The final step for larger factories is palletizing.

Finished cartons arrive at the palletizing area and are stacked according to a programmed pattern.

A robotic palletizer is useful when:

• production is continuous

• cartons are heavy

• labor cost is high

• consistent pallet patterns are required

A pallet wrapper or strapping machine can then secure the finished pallet for warehousing and transportation.

At this point, the engine oil packaging process is complete.

How Does the Complete Engine Oil Production Process Work?

Let's put the entire line together.

Step 1: Empty Bottle Loading

Empty 1L–5L bottles enter the production line manually or through an automatic bottle feeding system.

Step 2: Bottle Positioning

The conveyor guides the bottles toward the filling machine.

Sensors detect bottle presence and position.

Step 3: Engine Oil Filling

The filling machine dispenses the programmed quantity of lubricant into each bottle.

For multi-size production, the operator selects the appropriate product recipe.

Step 4: Cap Feeding

Caps are automatically sorted and delivered to the capping station.

Step 5: Capping

Each bottle is securely capped with controlled tightening.

Step 6: Induction Sealing

Where foil seals are required, bottles pass through the induction sealing system.

Step 7: Labeling

Front/back or other required labels are applied.

Step 8: Coding

Production date and batch information are printed.

Step 9: Inspection

Optional quality-control systems inspect bottle weight, caps, labels, or codes.

Step 10: Carton Packing

Finished bottles are manually or automatically packed into cartons.

Step 11: Palletizing

Cartons are stacked onto pallets and prepared for warehouse storage or shipment.

The result is a continuous engine oil packaging line rather than a collection of independent machines.

How Much Capacity Do You Need?

This is one of the most important questions when designing an engine oil filling line.

Higher speed is not automatically better.

The correct capacity should match:

• annual demand

• daily working hours

• number of shifts

• bottle sizes

• number of SKUs

• future growth

Typical project levels can be divided into several categories.

500–1,000 BPH: Small Production Line

This capacity is suitable for:

• startups

• local lubricant brands

• small markets

• factories with multiple products but limited volume

Manual bottle loading and carton packing may still be practical.

You can automate the important stages—especially filling and capping—while keeping the initial investment relatively controlled.

1,500–3,000 BPH: Medium Production Line

This range is common for established lubricant manufacturers.

At this output, you should usually consider more automation.

Manual cap placement, for example, may become a production bottleneck.

A typical configuration may include:

• automatic filling

• automatic cap feeding

• automatic capping

• induction sealing

• automatic labeling

• coding

• conveyor integration

Packing can remain manual or become automatic depending on labor costs.

3,000–6,000+ BPH: High-Speed Production Line

At higher output levels, the entire system must be designed as one production line.

The main question is no longer:

How fast is the filling machine?

Instead, ask:

Can the complete line maintain stable output?

If your filler operates at 6,000 BPH but your capper regularly jams, the whole line cannot achieve 6,000 BPH.

Likewise, if cartons cannot be packed fast enough, bottles will accumulate upstream.

This is why line balancing matters.

Why 1L and 5L Production Speeds Are Different

This is an important detail that buyers sometimes miss.

Suppose a filling machine can run 3,000 bottles per hour with 1L bottles.

Can it automatically fill 3,000 bottles per hour when filling 5L?

Usually not.

Why?

Because a 5L bottle needs five times as much product as a 1L bottle.

The oil physically takes longer to enter the container.

Several factors affect actual output:

• filling volume

• oil viscosity

• number of filling heads

• pump or piston capacity

• nozzle diameter

• filling speed

• bottle handling

• conveyor speed

Therefore, when comparing machine capacities, always ask the supplier to provide separate figures for:

1L BPH

and

5L BPH

Do not accept only one general speed number.

How Many Filling Heads Do You Need?

Automatic linear lubricant filling machines can be built with different numbers of filling nozzles.

Common configurations may include:

• 4 heads

• 6 heads

• 8 heads

• 12 heads

• more heads for higher output

More filling heads generally mean higher potential production capacity.

But simply adding more heads is not the whole answer.

You also need sufficient:

• product supply

• pump capacity

• conveyor flow

• capping speed

• labeling speed

• downstream packing capacity

Think of the filling line like a highway.

Adding more toll gates at one point will not solve congestion if the road immediately narrows again.

The complete production line has to be balanced.

Which Filling Technology Is Best for 1L–5L Engine Oil?

There is no universal answer.

The correct technology depends on the lubricant.

Servo Piston Filling for Viscous Lubricants

A servo piston filler is often a strong option for engine oil and other relatively viscous products.

It can provide:

• accurate volumetric dosing

• programmable volumes

• good viscosity handling

• recipe storage

• flexible production

This is particularly useful when the same line needs to run 1L, 4L, and 5L bottles.

Pump Filling for Flexible Oil Applications

Pump filling can also be suitable for many lubricant products.

The pump type should be selected according to the product characteristics.

If your factory produces several products, provide viscosity data for each one.

Do not simply tell the supplier, “We fill oil.”

Engine oil, gear oil, and hydraulic oil can behave very differently.

What About Filling Accuracy?

Accuracy matters because lubricant oil is valuable.

Imagine that your 1L filling line consistently overfills by only a few milliliters.

One bottle?

No big deal.

One million bottles?

Now it becomes a significant amount of free product given away.

Accurate filling helps control:

• product giveaway

• production cost

• net content consistency

• quality complaints

When evaluating a filling machine, ask for accuracy under the conditions closest to your actual application.

Can One Line Fill 1L, 4L and 5L Bottles?

Yes, in many cases.

But there is an important condition:

The line must be designed for all bottle formats from the beginning.

A multi-size filling line may require adjustments to:

• filling nozzle spacing

• conveyor side guides

• bottle sensors

• capping height

• cap feeding components

• label position

• bottle separation

• packing configuration

Machine recipes can simplify settings, but not every changeover can be done by software alone.

Some mechanical adjustments or change parts may still be required.

How Long Does Bottle Changeover Take?

Changeover time depends on how different the bottles are.

Changing between two similar containers may be relatively quick.

Changing from a slim 1L bottle to a wide 5L container with a different cap and label may require more work.

A good multi-SKU line should be designed for convenient adjustment.

Useful features include:

• handwheel adjustments

• position indicators

• saved HMI recipes

• quick-release guide rails

• clearly marked change parts

• adjustable filling head positions

If your factory changes SKU several times per day, changeover efficiency deserves much more attention.

How Does Oil Viscosity Affect Production Speed?

Oil viscosity directly affects filling behavior.

Think about filling a bottle with water and filling the same bottle with syrup.

The second process takes longer.

The same principle applies to lubricants.

A higher-viscosity gear oil may flow more slowly than a lighter hydraulic oil.

Temperature also matters.

Oil can become more viscous at lower temperatures.

Therefore, the supplier should understand:

• viscosity range

• operating temperature

• seasonal temperature changes

• oil density

• product variety

For some projects, heating or temperature-control measures may be considered upstream to maintain consistent filling conditions.

What Bottle Information Should You Give the Machine Supplier?

Do not wait until the machine is almost finished to send bottle samples.

Bottle information should be confirmed before design starts.

For each bottle size, provide:

• bottle volume

• total height

• body width

• body depth

• neck diameter

• bottle photos

• dimensional drawing if available

Also provide physical bottle samples when possible.

This is especially important for irregular 4L and 5L engine oil containers.

What Cap Information Is Required?

Provide:

• cap diameter

• cap height

• cap drawing

• cap photo

• cap sample

• closure type

• foil liner information

If different bottle sizes use different caps, tell the supplier in advance.

Different caps can require additional feeding tracks or change parts.

What Label Information Is Required?

For each SKU, provide:

• label width

• label height

• label material

• roll direction

• bottle application position

• one-label or two-label design

Actual samples are always useful.

Your supplier can then verify whether a standard labeling configuration is sufficient or whether bottle positioning is required.

How Much Factory Space Does an Engine Oil Filling Line Need?

There is no fixed answer because layout depends on:

• capacity

• machine configuration

• packing method

• conveyor length

• building shape

• warehouse connection

A compact line with manual packing may require relatively little space.

A high-speed line with:

• bottle unscrambling

• complete automatic packaging

• carton handling

• palletizing

requires substantially more room.

Do not plan only for the physical machine dimensions.

You also need:

• operator access

• maintenance space

• electrical cabinet access

• material storage

• bottle storage

• cap and label handling

• finished-product flow

A good layout should make production flow logically from raw packaging materials to finished pallets.

What Utilities Does the Line Need?

Before installation, check the factory utilities.

Typical requirements include:

• electrical power

• compressed air

• product supply pipeline

• drainage where needed

• stable factory floor

• sufficient lighting and ventilation

Electrical standards vary by country.

Always tell the supplier your required:

• voltage

• phase

• frequency

For example, do not assume every market uses the same 380V/50Hz configuration.

Should You Choose a Semi-Automatic or Fully Automatic Line?

The answer depends on production scale.

Choose Semi-Automatic When:

• output is relatively low

• labor is available

• investment budget is limited

• SKU changes are frequent

• future demand is still uncertain

Choose Automatic When:

• daily production volume is high

• labor cost is increasing

• consistent output is important

• product quality needs to be standardized

• the plant operates multiple shifts

• future expansion is planned

The cheapest initial solution is not always the lowest-cost production solution. If you are also comparing investment levels, equipment scope, and budget ranges, read our Lubricant Oil Filling Line Cost: Complete Price Guide for a detailed breakdown of typical line costs and the main factors that affect pricing.

How Should You Compare Engine Oil Filling Line Suppliers?

When comparing quotations, do not compare only the final price.

Compare the actual specifications.

Ask each supplier for:

• filling range

• 1L production capacity

• 4L production capacity

• 5L production capacity

• filling accuracy

• filling technology

• number of filling heads

• nozzle design

• anti-drip system

• cap compatibility

• capping method

• induction sealing

• labeling configuration

• coding system

• conveyor scope

• packing method

• electrical brands

• spare parts

• warranty

• installation service

• after-sales support

A lower quotation may simply contain less equipment.

Common Mistakes When Buying a 1L–5L Engine Oil Filling Line

Mistake 1: Quoting Only One Bottle Size

If you plan to produce 1L, 4L, and 5L bottles, provide all three bottle formats before ordering.

Do not design the line around 1L and assume 5L can be added later without modification.

Mistake 2: Ignoring Viscosity

“Engine oil” is not enough information.

Provide viscosity data whenever possible.

Mistake 3: Comparing Only BPH

Always confirm the bottle size corresponding to the stated BPH.

3,000 BPH at 1L and 3,000 BPH at 5L are very different technical requirements.

Mistake 4: Forgetting Secondary Packaging

If you eventually need automatic carton packing, mention it during initial layout design.

Leave enough conveyor and floor space for expansion.

Mistake 5: Ignoring Changeover

For multi-SKU manufacturers, changeover time directly affects productive hours.

A line that runs fast but takes hours to change format may not be efficient.

Frequently Asked Questions About 1L–5L Engine Oil Filling Lines

Can one engine oil filling machine fill both 1L and 5L bottles?

Yes. Many automatic filling machines can be designed to handle a filling range covering 1L to 5L.

However, actual bottle dimensions, viscosity, filling speed, cap type, and downstream equipment must also be compatible.

What is the typical capacity of a 1L engine oil filling line?

Capacity can range from several hundred bottles per hour for small systems to 6,000 BPH or more for larger automatic production lines.

The required configuration depends on the target output and complete packaging process.

Will the same machine produce the same BPH for 1L and 5L bottles?

Normally no.

A 5L container requires much more filling time than a 1L bottle.

Always request production capacity separately for each bottle volume.

What filling machine is suitable for viscous engine oil?

Servo piston and appropriate pump-based filling systems are commonly considered for lubricant oil.

The final selection should be based on product viscosity, container volume, required accuracy, and target speed.

Do I need an induction sealing machine for engine oil?

If your bottle uses a foil liner under the cap, induction sealing is normally recommended.

It improves package security and helps reduce leakage during transportation.

Can the line fill gear oil and hydraulic oil as well?

Potentially yes.

A flexible lubricant line can handle different oils if the filling system is suitable for their viscosity range and the production system is designed for the required products.

Can I add automatic carton packing later?

Yes, if sufficient space and conveyor interfaces are reserved during the initial layout design.

Planning future expansion from the beginning makes later upgrades much easier.

Buyer Checklist: Information to Prepare Before Requesting a Quotation

Before contacting a machine supplier, prepare the following:

Product

• engine oil / motor oil / gear oil / hydraulic oil

• viscosity

• density

• temperature range

Bottle

• 1L / 4L / 5L or other volumes

• bottle photos

• dimension drawings

• bottle samples

Cap

• cap size

• cap type

• cap photos

• samples

• foil liner requirement

Label

• front/back or wrap-around

• dimensions

• material

• samples

Capacity

• required BPH for each bottle size

• working hours per shift

• shifts per day

Packaging

• bottles per carton

• manual or automatic packing

• pallet configuration

Factory

• layout drawing

• available space

• voltage

• frequency

• compressed air conditions

The more complete this information is, the more accurately the supplier can design the production line.

Final Thoughts: Build the Line Around Your Real Production Needs

A 1L–5L engine oil filling line is much more than a filling machine.

A reliable production system needs to coordinate:

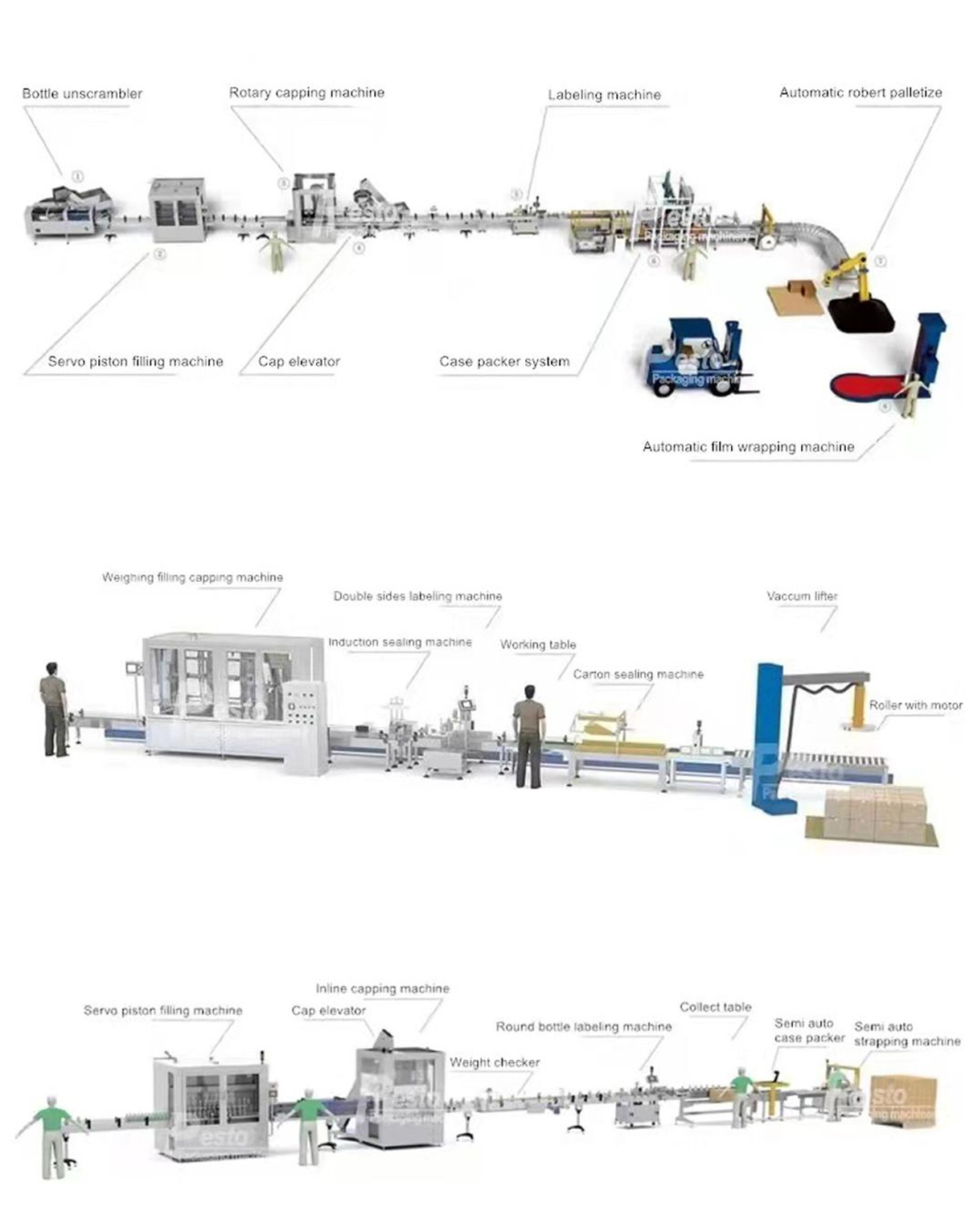

Bottle Feeding → Filling → Capping → Sealing → Labeling → Coding → Packing → Palletizing

The correct configuration depends on four questions:

What products are you filling?

What bottle sizes are you using?

How many bottles per hour do you need?

How much automation makes sense for your factory?

For a small producer, a 500–1,000 BPH configuration with some manual operations may be the most practical investment.

For an established lubricant manufacturer, 1,500–3,000 BPH with automatic filling, capping, sealing, and labeling can significantly improve efficiency.

For large-scale factories targeting 3,000–6,000+ BPH, the entire line—including packing and palletizing—should be engineered as an integrated production system.

Most importantly, do not select equipment based on filling speed alone.

Consider:

• actual speed for each bottle size

• oil viscosity

• filling accuracy

• changeover time

• cap compatibility

• labeling quality

• downstream packaging

• reliability

• future production growth

A properly designed line should solve today's production requirements while leaving enough flexibility for tomorrow's products and capacity.

If you are planning to package 1L, 4L, 5L, or other lubricant containers, explore our complete engine oil filling line solution for filling, capping, sealing, labeling, packing, and complete lubricant packaging configurations.
