How to Choose an Anti-Corrosive Filling Machine for Chemical Liquids: A Complete Buyer's Guide

Choosing the right filling machine for corrosive chemicals is not simply about production speed or filling accuracy. The most important question is whether the equipment can safely and reliably handle your specific liquid over the long term.

Imagine purchasing a standard stainless steel filling machine for an acidic cleaning product. After several months of operation, the filling nozzles begin to corrode, seals deteriorate, and maintenance becomes increasingly frequent. What initially seemed like a cost-effective investment can quickly turn into an expensive production problem.

This is why manufacturers handling chemical liquids need to carefully evaluate the design, materials, and configuration of their filling equipment.

An anti-corrosive filling machine uses specially selected materials such as polypropylene (PP), polytetrafluoroethylene (PTFE), and compatible titanium alloys to improve resistance to chemical exposure.

However, not every corrosion-resistant material is suitable for every chemical.

In this guide, we explain how to select the right filling machine for corrosive liquids, compare different construction materials, examine a real PESTOPACK automatic filling system, and share a customer project involving soft 5L plastic jerrycans in Saudi Arabia.

Whether you are planning a new chemical packaging plant or upgrading an existing production line, this guide will help you make a more informed equipment investment.

1. What Is an Anti-Corrosive Filling Machine?

An anti-corrosive filling machine is industrial equipment designed to fill chemically aggressive liquids into bottles, jerrycans, and other containers using materials selected for the intended chemical environment.

Unlike conventional liquid filling machines, which often use stainless steel for most components, anti-corrosive equipment may incorporate engineering plastics, specialized alloys, and protective coatings.

Common materials include:

• Polypropylene (PP)

• Polytetrafluoroethylene (PTFE)

• Titanium alloys

• PVDF and other chemically resistant polymers

• Chemical-compatible seals and gaskets

• Protective coatings for selected metal components

The purpose is to reduce the risk of chemical attack, premature component failure, leakage, and unplanned maintenance. For more equipment options and configurations, visit our corrosive liquid filling machine product page.

Why Is a Standard Stainless Steel Filling Machine Not Always Suitable?

Stainless steel is widely used in beverage, edible oil, cosmetic, and general liquid packaging equipment.

SUS304 and SUS316L provide good corrosion resistance in many industrial environments.

However, some acidic, chloride-containing, or highly aggressive chemical formulations can cause corrosion under specific conditions.

The corrosion behavior depends on several factors:

• Chemical composition

• Concentration

• Operating temperature

• Exposure duration

• Presence of impurities

• Cleaning procedures

• Mechanical and environmental conditions

For example, a material suitable for a dilute chemical solution at room temperature may not perform equally well at higher concentrations or elevated temperatures.

Therefore, selecting a chemical filling machine should begin with a review of the product's Safety Data Sheet (SDS), not simply its name or pH value.

2. Which Products Need an Anti-Corrosive Filling Machine?

Corrosion-resistant filling equipment is commonly used in chemical manufacturing, household cleaning, industrial cleaning, and water treatment applications.

The following table shows typical applications and important equipment considerations.

Filling Acidic Cleaning Products

Some toilet cleaners and descaling liquids contain acidic ingredients that can damage unsuitable metal components.

For these applications, the machine may require corrosion-resistant nozzles, piping, valves, and seals.

The exact material configuration depends on the acid type, concentration, temperature, and other ingredients.

Filling Bleach and Chlorine-Based Products

Bleach-based products require particular attention because sodium hypochlorite is an oxidizing chemical.

Materials that perform well with one cleaning formulation may not be compatible with concentrated bleach.

The filling system, seals, pumps, and exposed components should be evaluated against the actual formulation.

Filling Detergents and Household Cleaning Liquids

Not all detergents require specialized anti-corrosive equipment.

Many conventional liquid detergents can be handled using appropriately designed stainless steel machines.

However, certain concentrated cleaning products, alkaline formulations, and chemically aggressive detergents may require additional material protection.

Other important factors include viscosity, foaming behavior, filling volume, and container design.

For manufacturers producing household cleaners, liquid detergents, and related products, explore our detergent filling machine solutions to learn more about automatic filling and packaging configurations.

The key principle is simple: select the machine according to the actual liquid formulation, not just the product category.

3. How to Choose Corrosion-Resistant Materials for a Filling Machine

Material selection is one of the most important factors affecting the reliability and service life of chemical filling equipment.

Different components may require different materials because they perform different functions and experience different levels of chemical exposure.

Let's examine four commonly used material solutions.

3.1 Polypropylene (PP): Chemical-Resistant Structural Components

Polypropylene is a thermoplastic material widely used in chemical processing equipment.

It offers useful resistance to many compatible aqueous acids and alkaline solutions.

In the PESTOPACK anti-corrosive filling machine featured in our demonstration video, PP is used for the machine frame and conveyor components.

This construction helps reduce the exposure of conventional metal components to certain corrosive splashes and chemical environments.

Advantages of PP:

• Good resistance to many compatible chemical solutions

• Lightweight construction

• Suitable for selected structural and conveyor components

• Relatively easy to fabricate

• Useful where metal corrosion is a concern

However, PP also has limitations.

Its performance can be affected by temperature, mechanical loading, ultraviolet exposure, and certain solvents or oxidizing chemicals.

The suitability of PP should always be checked against the actual application.

3.2 PTFE: Chemical-Resistant Product-Contact Components

PTFE, commonly known by the trade name Teflon, is widely used in chemical processing because of its broad chemical resistance.

It is commonly found in industrial seals, gaskets, valve components, tubing, and other equipment.

In the featured PESTOPACK machine, PP and PTFE are used for designated liquid-contact components.

Advantages of PTFE:

• Broad resistance to many chemical substances

• Low surface adhesion

• Useful sealing properties

• Suitable for many chemically aggressive environments

• Good temperature resistance when properly engineered

However, PTFE is not universally compatible with every possible chemical or operating condition.

Mechanical deformation, sealing pressure, and component design must also be considered.

3.3 Titanium Alloy: Corrosion-Resistant Filling Nozzles

The filling nozzle is one of the most important components in a liquid filling machine.

It directly controls the discharge of liquid into the container and is repeatedly exposed to the product during operation.

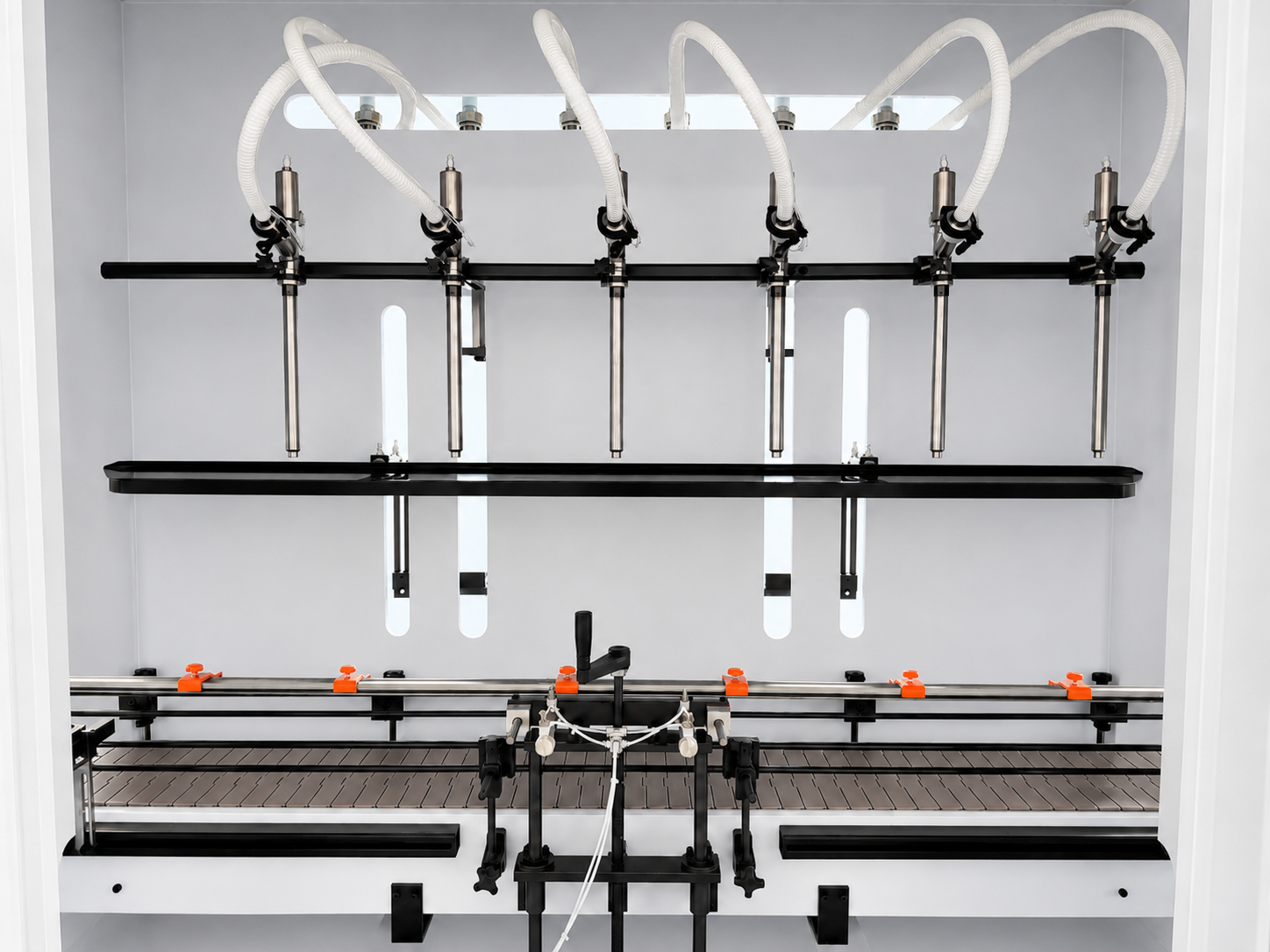

The PESTOPACK machine demonstrated in the video uses titanium alloy filling nozzles.

Titanium alloys can offer excellent corrosion resistance in many suitable chemical environments.

Potential advantages include:

• Corrosion resistance in compatible applications

• Good mechanical strength

• Reduced deterioration of suitable wetted components

• Potentially longer service life under appropriate conditions

However, titanium should not be considered universally resistant to all chemicals.

Certain acids, fluoride-containing environments, and other aggressive chemical conditions may attack titanium.

The exact alloy grade and chemical compatibility must be confirmed before equipment manufacturing.

3.4 PTFE-Coated Metal Components

Some machine components require the mechanical strength of metal but may also need protection against corrosive exposure.

In the demonstrated equipment, selected metal components are coated with Teflon.

The coating can provide a protective barrier against compatible chemical splashes and environmental exposure.

However, protective coatings have limitations.

Their performance depends on coating quality, thickness, adhesion, and mechanical wear.

If a coating becomes damaged, the underlying metal may be exposed.

Therefore, PTFE-coated metal components should not automatically be considered equivalent to solid PTFE components for continuous liquid contact.

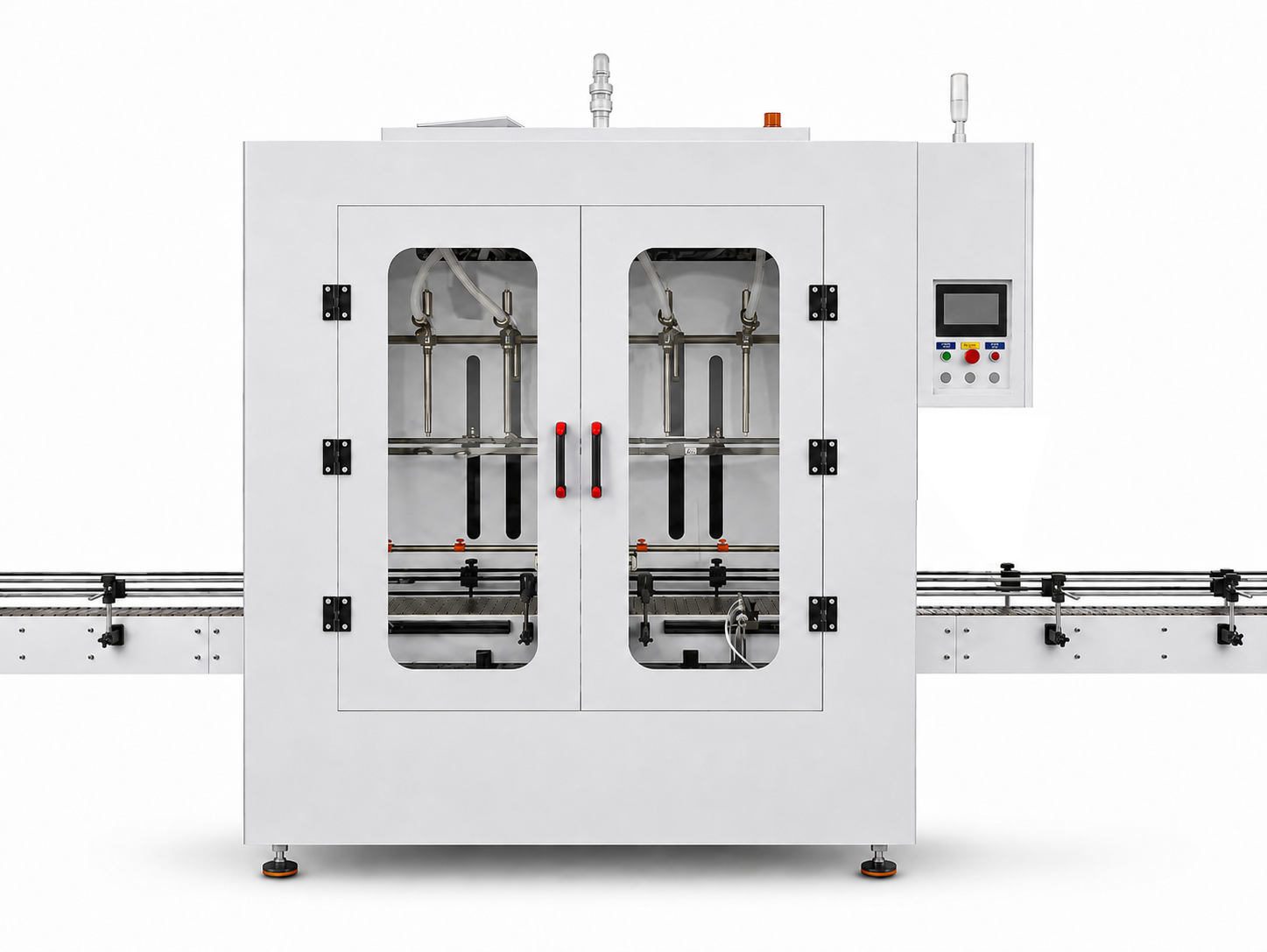

What Does a Corrosion-Resistant Filling Machine Look Like?

4. PP vs. PTFE vs. Titanium vs. Stainless Steel: Which Material Is Better?

There is no single material that is best for every chemical filling application.

Each material offers different advantages and limitations.

How Should You Select the Right Material?

Before confirming the machine configuration, provide your equipment supplier with:

1. Product name and chemical composition

2. Safety Data Sheet (SDS/MSDS)

3. Chemical concentration

4. Filling temperature

5. Product viscosity

6. Expected production conditions

7. Cleaning and maintenance requirements

For aggressive chemical products, it may also be necessary to confirm the compatibility of individual seals, pumps, valves, and other wetted components.

A well-designed anti-corrosive filling machine uses suitable materials in the right locations rather than relying on one material for the entire machine.

5. How Many Filling Heads Do You Need?

One of the most common questions from equipment buyers is:

Should I choose a 4-head, 6-head, 8-head, or 12-head filling machine?

The answer depends on your required production capacity, filling volume, and product characteristics.

More filling heads can increase production capacity, but they do not automatically guarantee higher output.

Actual filling speed depends on:

• Bottle volume

• Product viscosity

• Filling technology

• Filling cycle time

• Foaming behavior

• Nozzle flow rate

• Container stability

• Capping machine capacity

Example: Calculating Your Required Production Capacity

Suppose your factory plans to produce 12,000 bottles per day.

With an eight-hour shift:

12,000 bottles ÷ 8 hours = 1,500 bottles/hour

However, this is only the required average production output.

If you assume 80% effective production time for preliminary planning:

1,500 ÷ 0.80 = 1,875 bottles/hour

In this example, you would need to evaluate equipment with a rated capacity of approximately 1,875 bottles/hour or higher.

The 80% assumption is only an illustrative planning factor, not a guaranteed machine efficiency.

Final equipment selection should be based on the actual liquid, bottle size, operating cycle, and complete line configuration.

Does a 12-Head Filling Machine Always Produce More?

Not necessarily.

A 12-head machine filling 500ml bottles may achieve a higher bottle-per-hour output than a similar machine filling 5L jerrycans.

Larger containers require more liquid per cycle, and the filling time may be significantly longer.

This is why the supplier should confirm capacity for each bottle size rather than providing only a general machine speed.

6. Which Filling Technology Is Best for Corrosive Liquids?

Different chemical products require different filling technologies.

The selection should consider viscosity, foaming behavior, filling accuracy, container size, and chemical compatibility.

6.1 Gravity Filling

Gravity filling uses the liquid's own weight to move it into the container.

It may be suitable for certain low-viscosity products when the system is properly designed.

Advantages can include relatively straightforward operation and a simple filling principle.

However, gravity filling is not suitable for every chemical or production requirement.

6.2 Pump Filling

Pump filling uses a controlled pump to transfer liquid into the container.

Depending on the pump type, it can provide flexible filling-volume control and controlled liquid delivery.

For corrosive liquids, the pump's wetted components must be carefully selected.

These may include:

• Pump housing

• Internal components

• Seals

• Connections

• Valves

• Transfer pipelines

An incompatible seal or pump component can create problems even when the filling nozzle itself is corrosion-resistant.

6.3 Net-Weight Filling

Net-weight filling uses a weighing system to measure the quantity dispensed into each container.

It can be useful for larger containers and applications where filling by mass is preferred.

However, the complete system must still be designed around the chemical and container characteristics.

6.4 How to Choose the Right Technology

The correct filling technology is the one that meets the customer's actual product and production requirements.

7. Why Is the Capping Machine Important for Chemical Packaging?

Many customers focus primarily on filling accuracy and speed.

However, the capping system is equally important, particularly when packaging chemical liquids.

An improperly closed container may leak during handling, storage, or transportation.

For corrosive products, leakage can damage surrounding packaging materials and equipment and may create safety risks.

When selecting an automatic capping machine, consider:

• Cap type

• Cap diameter

• Bottle neck dimensions

• Required tightening torque

• Cap material

• Container rigidity

• Tamper-evident requirements

• Leak prevention

Matching the Capper to the Filling Machine

The filling and capping machines must operate at compatible production speeds.

For example, increasing filling capacity will not improve total line output if the capping machine becomes the bottleneck.

The capping system should also be tested with actual bottle and cap samples.

This is particularly important when using soft plastic containers or unusual cap designs.

In the featured PESTOPACK equipment, the automatic filling machine is integrated with a single-head automatic capping machine.

The final capping configuration should be selected according to the customer's packaging requirements.

8. How to Design a Complete Chemical Filling Line

A complete chemical filling line may include much more than a filling machine.

Depending on the product and production requirements, the equipment can include:

1. Chemical storage or preparation tanks

2. Chemical-compatible transfer pumps

3. Product pipelines and filtration equipment

4. Empty-container feeding

5. Automatic filling machine

6. Cap feeding and automatic capping

7. Induction sealing, where appropriate

8. Automatic labeling

9. Date and batch coding

10. Inspection and rejection

11. Carton packing or shrink wrapping

12. Palletizing

Not every factory requires the same automation level.

Small and Medium Production Facilities

For manufacturers with relatively low production volumes, a combination of automatic filling and capping with semi-automatic downstream packaging may provide a practical starting point.

Large Industrial Production Facilities

Higher-volume manufacturers may require fully automatic container feeding, filling, capping, labeling, inspection, and packing.

A complete production line can reduce manual container handling and improve workflow consistency.

However, the equipment layout should also consider:

• Chemical storage and transfer

• Spill containment

• Ventilation

• Operator access

• Maintenance space

• Cleaning procedures

• Applicable electrical and safety requirements

Is Explosion-Proof Equipment Necessary?

Corrosion resistance and explosion protection are two different engineering requirements.

A machine built with PP and PTFE is not automatically suitable for flammable liquids or hazardous areas.

If the product contains flammable solvents or creates a potentially explosive atmosphere, the electrical equipment, ventilation, grounding, and overall machine design may require additional protective measures.

Hazardous-area classification and applicable local regulations should be evaluated before confirming the equipment specification.

9. How Much Does an Anti-Corrosive Filling Machine Cost?

The price of an anti-corrosive filling machine depends on the configuration, materials, production capacity, and automation requirements.

Two machines with the same number of filling heads may have very different prices.

For example, a standard stainless steel filling machine and a machine equipped with titanium alloy nozzles, PP structural components, and PTFE wetted parts may have substantially different material and manufacturing costs.

Main Factors Affecting Equipment Price

Should You Choose the Cheapest Machine?

Not necessarily.

For corrosive liquid applications, a lower initial equipment price can result in higher operating costs if the materials are unsuitable.

Potential additional costs include:

• Frequent seal replacement

• Nozzle corrosion

• Pump maintenance

• Chemical leakage

• Production interruptions

• Replacement parts

• Equipment downtime

A better purchasing decision considers the total cost of ownership.

This includes the initial investment, expected maintenance, consumables, downtime, and long-term operating conditions.

10. Common Mistakes When Buying an Anti-Corrosive Filling Machine

Mistake 1: Choosing Materials Based Only on pH

Two products with similar pH values may have very different chemical compositions and corrosion behavior.

Always provide the complete product formulation or SDS for compatibility evaluation.

Mistake 2: Assuming All Stainless Steel Is Corrosion-Resistant

SUS304 and SUS316L are suitable for many industrial applications, but neither material is universally resistant to every chemical.

Mistake 3: Assuming Titanium Works with Every Acid

Titanium alloys provide excellent resistance in many environments, but their performance depends on the specific chemical and operating conditions.

Mistake 4: Ignoring Seals and Internal Pump Components

A corrosion-resistant filling nozzle cannot compensate for an incompatible pump seal or valve component.

All wetted components must be evaluated.

Mistake 5: Ignoring Container Rigidity

The Saudi Arabian 5L jerrycan project demonstrates why bottle rigidity and physical characteristics should be considered during equipment selection.

Soft containers may require careful handling and machine adjustments.

Mistake 6: Focusing Only on Filling Speed

A filling machine is only one part of the production line.

Container feeding, capping, labeling, and packing must also be matched to the required capacity.

Mistake 7: Failing to Test Actual Packaging Samples

Whenever possible, provide actual containers and caps for machine testing before shipment.

This is particularly important for unusual bottle shapes, lightweight packaging, and large jerrycans.

11. Why Choose PESTOPACK for Chemical Filling Equipment?

PESTOPACK provides liquid filling and packaging equipment for chemical, household cleaning, detergent, and industrial applications.

Our approach is to configure the equipment according to the customer's product characteristics, packaging requirements, and production capacity.

For corrosive liquid projects, suitable configurations may include:

• Titanium alloy filling nozzles

• PP and PTFE liquid-contact components

• PP structural and conveyor components

• Protective coatings for selected metal parts

• Customized filling-head quantities

• Automatic capping systems

• Labeling and downstream packaging equipment

Equipment Configuration Based on Actual Requirements

Different chemicals require different material selections.

Different containers require different handling methods.

Different production volumes require different automation levels.

Rather than selecting a machine solely from a standard catalog specification, customers should provide the technical information needed to evaluate the complete application.

Experience with Practical Packaging Challenges

The Saudi Arabian 5L jerrycan project demonstrates the importance of practical equipment testing and adjustment.

When the customer's relatively soft containers created handling challenges, the issue was addressed through equipment adjustments and testing.

The problem was resolved, and the equipment was successfully shipped.

This experience reinforces our focus on matching equipment design to actual packaging requirements.

Complete Filling and Packaging Solutions

PESTOPACK can supply individual filling machines or integrated packaging lines.

Depending on the project, equipment may include filling, capping, labeling, coding, conveying, and packing systems.

We can also assist with equipment configuration, layout planning, installation arrangements, and technical support.

12. Frequently Asked Questions About Anti-Corrosive Filling Machines

Q1. Can one anti-corrosive filling machine handle both acidic and alkaline liquids?

Potentially, but it depends on the chemical composition, concentration, temperature, and compatibility of the machine's wetted components.

A machine suitable for one acidic product may not be suitable for another acid or alkaline solution.

Each formulation should be evaluated separately.

Q2. Is PP better than stainless steel for chemical filling?

PP offers better resistance than stainless steel in certain chemical environments.

However, stainless steel provides different advantages in mechanical strength, temperature resistance, and structural performance.

The correct choice depends on the application.

Q3. Why are titanium alloy filling nozzles used?

Titanium alloys can provide excellent corrosion resistance and mechanical strength in compatible chemical environments.

They may be selected for filling nozzles exposed to certain aggressive liquids.

However, chemical compatibility must be verified for the specific alloy grade.

Q4. Can the same machine fill 1L and 5L containers?

Yes, if the machine is designed with a suitable filling range and adjustable container-handling system.

Different bottle sizes may require adjustments or replacement format parts.

Q5. Can an anti-corrosive filling machine handle soft plastic jerrycans?

Yes, provided the equipment is appropriately configured for the container's physical characteristics.

Our Saudi Arabian customer project involved relatively soft 5L plastic jerrycans. After equipment adjustments and testing, the handling issue was resolved and the equipment was shipped.

Q6. Can an anti-corrosive filling machine fill bleach?

It may be suitable for bleach when all wetted and exposed materials are compatible with the actual formulation.

Sodium hypochlorite concentration, temperature, impurities, and operating conditions must be considered.

Q7. How many operators are needed for an automatic chemical filling line?

The number of operators depends on the automation level and the complete packaging process.

Automatic filling and capping can reduce manual handling, but trained personnel are still needed for supervision, material replenishment, quality checks, and maintenance.

Q8. Can PESTOPACK provide a complete chemical filling and packaging line?

Yes. PESTOPACK provides chemical filling equipment and integrated packaging solutions, including filling, capping, labeling, coding, conveying, and packing equipment.

The final configuration depends on the product, container, capacity, and project requirements.

Q9. What information is needed to receive a quotation?

To prepare a suitable technical proposal, please provide:

• Chemical product name

• SDS/MSDS

• Chemical concentration

• Filling temperature

• Bottle or jerrycan size

• Bottle and cap photographs

• Required production capacity

• Packaging requirements

• Destination country

For special containers, physical samples may also be required for testing.

Conclusion: Choose the Right Materials and the Right Container-Handling System

Selecting an anti-corrosive filling machine requires more than comparing filling speed and equipment prices.

The machine must be designed around the actual chemical product, the packaging container, and the production requirements.

Materials such as PP, PTFE, and titanium alloys can provide valuable corrosion resistance in suitable applications. However, every product-contact component should be evaluated for chemical compatibility.

At the same time, container design must not be overlooked.

As demonstrated by our Saudi Arabian 5L jerrycan project, even a relatively soft plastic container can create equipment-handling challenges that need to be addressed through adjustment and testing.

A reliable chemical filling line should combine:

• Suitable corrosion-resistant materials

• Appropriate filling technology

• Stable container handling

• Reliable capping

• Compatible downstream packaging

• Practical testing before shipment

Get a Customized Anti-Corrosive Filling Machine from PESTOPACK

Are you planning to fill acidic cleaners, alkaline detergents, industrial chemicals, or other chemically aggressive liquids?

PESTOPACK can help you evaluate a suitable filling and packaging configuration based on your actual product requirements.

Tell us about your project:

1. What liquid are you filling?

2. What is the chemical composition or concentration?

3. What bottle or jerrycan sizes do you use?

4. What production capacity do you require?

5. Do you need a filling machine or a complete packaging line?

Contact our team for a customized technical proposal and quotation.
