3000BPH capacity Small Scale Water Bottling Machine

The small water bottling machine is used to produce polyester bottled mineral water, purified water, alcoholic beverage and other non-gas beverage machinery. The small water bottling machine can finish washing , filling and sealing bottles in one machine and reduce the dust and exposure time, improve the sanitary conditions, production capacity and economic efficiency. The whole process is automatic.
  • PESTOPACK
  • One Year and Life-Long Technical Support
  • Engineers Available to Service Overseas
  • Mineral water, drinking water, pure water, spring water, soda water, purified water
  • Liquid
  • Full Automatic
  • 3000 bottles per hour
  • PET bottles 200-2000ml
Availability:
Quantity:

Product Description

PESTOPACK-Banner1





FINAL PRODUCT OF SMALL WATER BOTTLING MACHINE


Equipment Name

Small water bottling machine



Bottle Type

PET round or square bottle
Volume 200 - 2000ml
Bottle diameter 50-115mm
Bottle height 160-320mm

Output

3000-24000 bph

Your product

mineral water/pure water/non-gas wine drink and so on.


Small water bottling machine-final product


SMALL WATER BOTTLING MACHINE PRICE

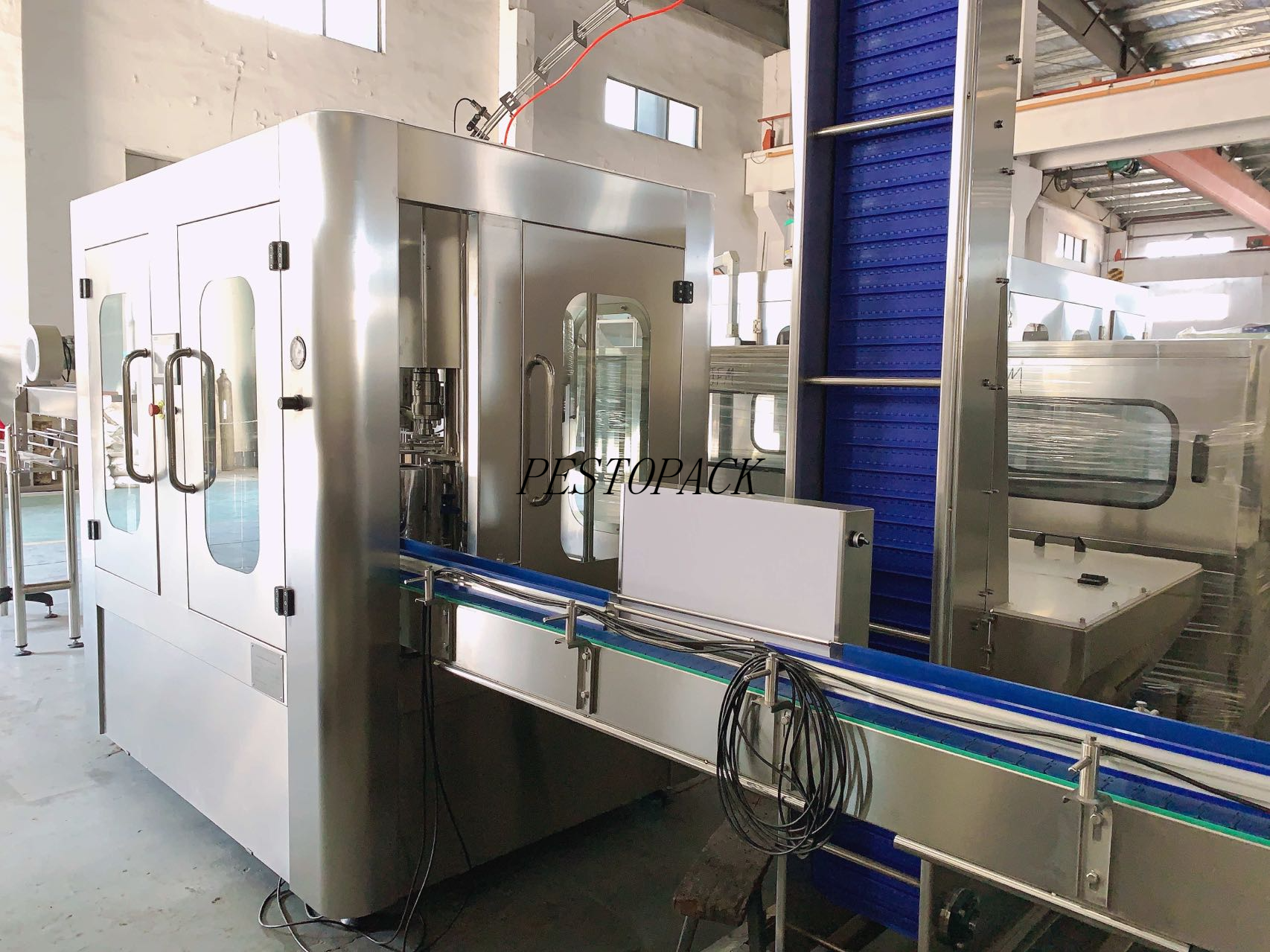

Small water bottling machine


✅ The small water bottling machine uses intelligent contact screen, human design, easy operation.

✅ Imported filling valve, avoiding drop leaking, accurate filling quantity.

✅ Program logic controller(PLC) for small water bottling machine, easy for changing size or modifying parameters.

✅ Pneumatic elements in small scale water bottling machine are all branded, stability and reliability.

✅ Accurate liquid sensing, automatically adding liquid, ordinary pressure flow passage parameters.

✅ Solely and specially-designed whole lifting device, the small water filling machine is easy governing to meet the needs of all kinds of container packing.


SMALL WATER BOTTLING MACHINE FOR SALE


Model
PTGF
8-8-4
PTGF
14-12-5
PTGF
18-18-6
PTGF
24-24-8
PTGF
32-32-10
PTGF
40-40-12
PTGF
50-50-15
Rinsing heads 8 14 18 24 32
40 50
Filing heads 8 12 18 24 32 40 50
Capping heads 4 5 6 8 10 12 15
Filling volume 200-2000ml 200-2000ml 200-2000ml 200-2000ml 200-2000ml 200-2000ml 200-2000ml
Capacity
(b/h, 500ml)
2000-3000 4000-5000 6000-7000 10000-11000 12000-13000 17000-18000 23000-24000
Power
(KW)
2.2 2.8 3.5 4.5 6 7.5 9.5
Dimension
(mm)
2000*1650*2500 2400*1650*2500 2600*1920*2550 3100*2100*2800 3500*2800*2900 4600*2800*2900 5450*3300*2900
Weight
(kg)
1500 2500 3500 4500 5600 8500 9800



DETAILS OF SMALL WATER BOTTLING MACHINE



Small water bottling machine-Washing-Heads

Washing part

  • The rotary disk is fully made of SUS304 stainless steel in this small water bottling machine.

  • Using special efficient spray nozzle, the washing water will be sprayed in a particular angle, can wash any part of the inner wall, rinse with water thoroughly and save flush bottle.

  • Washing part moves by a frame in the transmission system through the gear transmission.


Small water bottling machine-Filling-part

Filling part

  • The washing bottle, filling, sealing are connecting with the thumb wheel card bottleneck transportation methods.

  • The rotating disk is all made of SUS 304 stainless in this small scale water bottling machine.

  • Filling method is gravity filling.

  • Filling valve manufactured by SUS 304.

Small water bottling machine-Capping-part

Capping part

  • Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

  • 304/316 stainless steel construction for small water bottling machine

  • No bottle no capping 4.Automatic stop when lack of bottle



AUXILIARY EQUIPMENTS OF SMALL WATER BOTTLING MACHINE


We also provide turnkey complete water production line. Production capacity is from 3000BPH to 24000BPH. Besides water filling machine, also need water treatment system for water purify, bottle blowing machine for making pet bottles, labeling machine to labels of pvc, opp/bopp material, packing machine for film or carton.



RELATED MACHINES


Not only water filling machine, we also produce juice filling machine, carbonated drink csd filling machine, 5 gallon water filling machine, beer filling machine, oil filling machine, sauce filling machine in water, beverage, food, chemical, personal care, household industries.



LAYOUT OF SMALL WATER BOTTLING MACHINE

Small water bottling machine-layout reference



Company Profile

SMALL WATER BOTTLING MACHINE MANUFACTURER


PESTOPACK is an innovative and dynamic company in the design, manufacturing, maintenance and optimisation of water filling machine, beverage juice filling machine, carbonated drinks csd filling machine, beer filling machine, oil filling machine, sauce filling machine, household products filling machine, capping machine, labeling machine. We are specialized in liquid filling machinery and packing machinery field over 12 years.

In order to meet the demand for systems that fit seamlessly into existing operations, we have developed a range of packaging equipment that is unmatched in reliability, efficiency and cost effectiveness. And, because we understand that every line has its own unique requirements, each of our machines is customized to the individual needs of our customers.

We place our clients first and custom best solution for them until they are satisfied.


PESTOPACK Machinery-company profile(1)



After Service


SMALL WATER BOTTLING MACHINE FACTORY SERVICE


Installation

We can dispatch our expert technicans to install small scale water bottling machine. Service charge includes installation fee, travel expenses and meals.


Training

For getting the best small water bottling machine performance, we offer on-site or at your factory training to dealers, machine operators, engineers and technicians.


Warranty

Provide efficient service, one year quality guarantee period, parts supply and quick feedback troubleshooting when small water filling machine maintenance.


Consulting

We provide free consulting. Professional sales will give you the most suitable solution. CAD drawing design of small water bottling machine will be provided.


Technical Support

Offer 24/7 long life technical support. Just mail or give us a call, we will give quick feedback ASAP. Let you be free of worries.


Spare Parts

We will provide a set of spare parts in small water bottling machine for free when shipping. Full-series quality parts can be ordered at any time with very reasonable price.


FAQ


SMALL WATER BOTTLING MACHINE Q&A


What type of filling machinery you supply?

We produce and sell packing machines like water treatment system, beverage processing machine, water filling machine, water production line, juice production line, juice filling machine, juice bottling machine, CSD filling machine, carbonated drinks filling line, beer filling machine, oil filling machine, detergent filling machine etc.


How the small water bottling machine will work for my product?

We will test and run small business water bottling machine with your bottle once machine completes and send you test run video to prove the machine works well and stable.


Will you send technical staff to help me with installation of small water bottling machine?

Yes, we have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.


How many years warranty of small water bottling machine?

One-year warranty from the date of installation, during which if any parts fault in small water bottling machines, we will courier to your replacing parts with replacing instructions.


When can I expect my email or questions to be replied?

Our working time is 9:00am--18:00pm Monday--Saturday, any email shall be replied within 24 hours normally. For an enquiry for small water bottling machine, the most recommended way of contact is by email, by sending your final product&photos to our email,due to our possible time difference.


We need basic information from you about small water bottling machine:

What kind of products will you want to produce: water, juice, with gas or others?

Need single pure water filling machine or the whole production line?

What is production capacity you expect, that means how many bottles per hour?

Bottle details : pet bottle or glass bottle; bottle volume; bottle shape or bottle picture?
